EVA Rubber Integrated Molding Tray
Overview:
Product Introduction
This EVA Rubber Integrated Molding Tray is a premium solution among ESD safe trays, engineered to deliver reliable protection and long‑term durability for sensitive components. Its unique three‑layer construction—with an elastic middle layer—provides superior cushioning and shock absorption, effectively safeguarding fragile items during handling and transit. At the same time, the tray offers stable, permanent anti‑static properties, preventing electrostatic discharge from damaging electronic parts. The tough, scratch‑resistant and wear‑resistant surface resists chipping, peeling, and abrasion, while meeting high hygiene standards for cleanroom and industrial environments. In addition, the material is moisture‑proof, heat‑insulating, and age‑resistant, ensuring an extended service life even under demanding conditions. Design flexibility allows for easy customization of size, shape, and compartment layout, and the tray is fully compatible with automated handling equipment, significantly improving logistics efficiency.
Technical Specification
| Product name | EVA rubber integrated molding tray | |||||
| Product model | 70-70-10 | 77-77-20 | 161-163-27 | 239-209-19 | 239-209-25 | |
 |
 |
 |
 |
 |
||

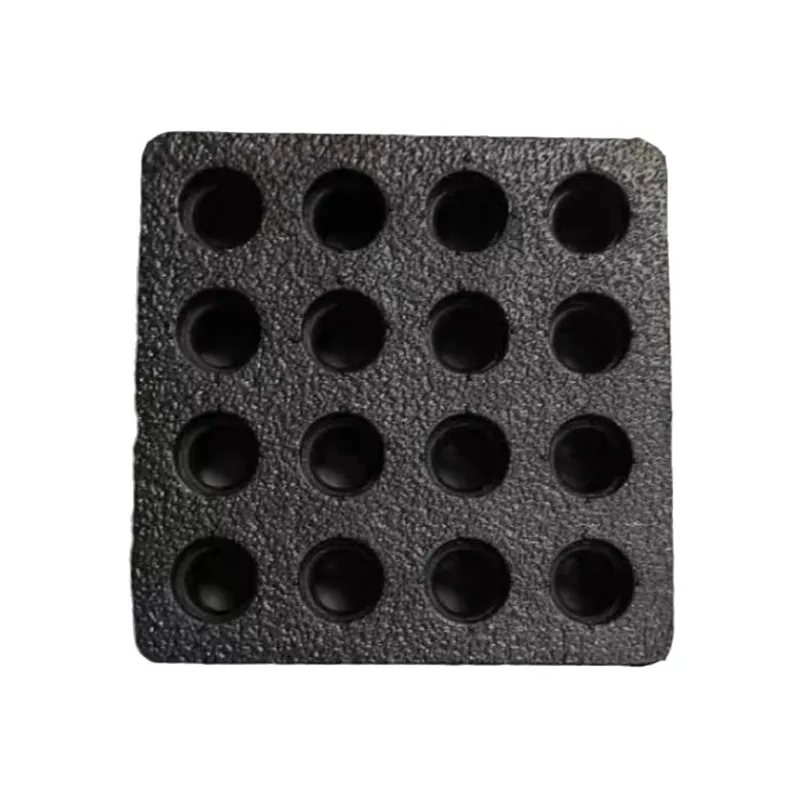

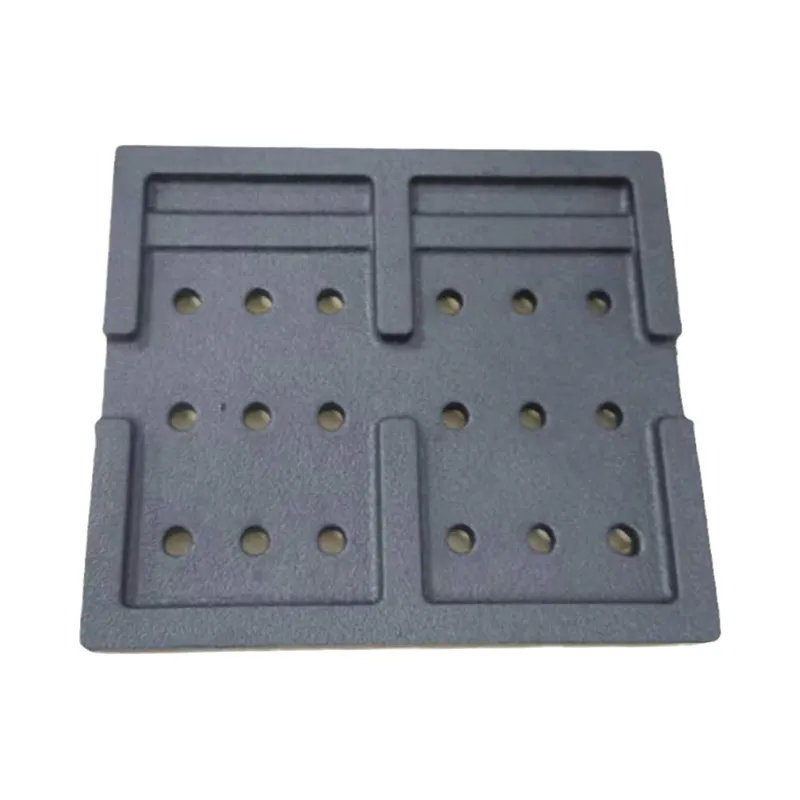

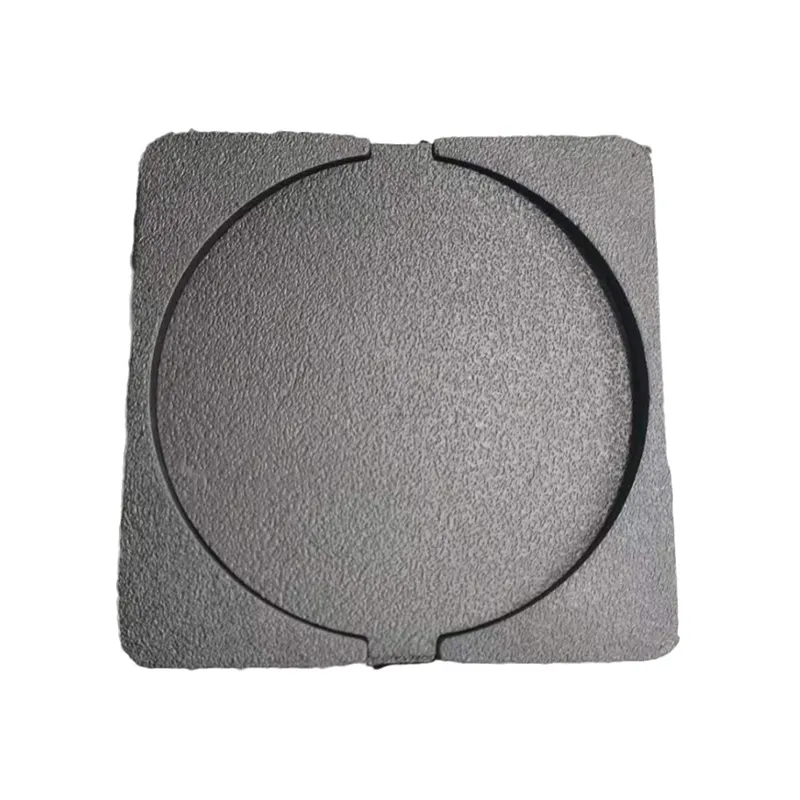

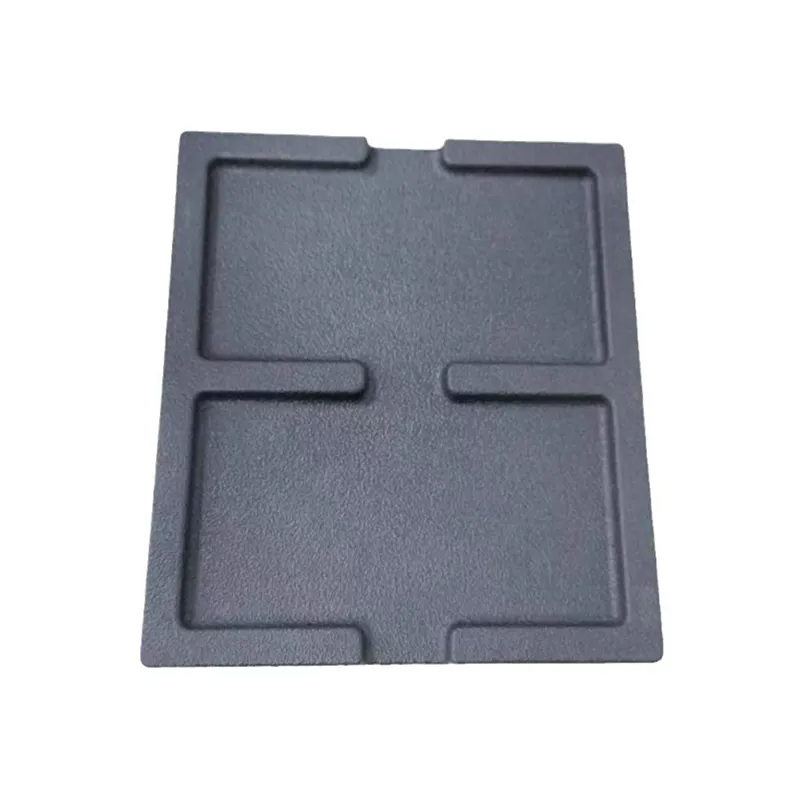

| Specification parameters | ●Outer Dimensions | 70*70*10mm | 77*77*20mm | 161*163*27mm | 239*209*19mm | 239*209*25mm |
| ●Inside dimension | / | 12mm | 149mm | 95*177mm | 178*95mm | |
| ●Inner diameter size | / | / | / | / | / | |
| ●Neg height | / | / | / | / | / | |
| ●Resistance (heavy hammer) | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | |
| ●Weight | 5g | 10g | 90g | 140g | 140g | |
| Product name | EVA rubber integrated molding tray | |||||
| Product model | 241-130-11-12 | 269-208-69 | 269-209-30 | 276-233-5 | 316-224-43 | |
 |
 |
 |
 |
 |
||
| Specification parameters | ●Outer Dimensions | 241*130*11*120mm | 269*208*69mm | 269*209*30mm | 276*233*5mm | 316*224*43mm |
| ●Inside dimension | 48mm | 229*168mm | 168*31mm | / | 282*202mm | |
| ●Inner diameter size | / | / | / | / | / | |
| ●Neg height | / | / | / | / | / | |
| ●Resistance (heavy hammer) | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | |
| ●Weight | 10g | 360g | 280g | 50g | 200g | |
| Product name | EVA rubber integrated molding tray | |||||
| Product model | 317-225-45 | 322-242-38 | 325-245-40 | 336-257-39 | 336-257-39-shell | |
 |
 |
 |
 |
 |
||
| Specification parameters | ●Outer Dimensions | 317*225*45mm | 322*242*38mm | 325*245*40mm | 336*257*39mm | 336*257*39mm |
| ●Inside dimension | 281*203mm | 282*203mm | 202*278mm | 280*202mm | 280*202mm | |
| ●Inner diameter size | / | / | / | / | / | |
| ●Neg height | / | / | / | / | / | |
| ●Resistance (heavy hammer) | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | |
| ●Weight | 210g | 260g | 300g | 300g | 300g | |
| Product name | EVA rubber integrated molding tray | |||||
| Product model | 380-281-14 | 400-290-35 | 413-288-30 | 420-230-25 | 447-219-17 | |
 |
 |
 |
 |
 |
||
| Specification parameters | ●Outer Dimensions | 380*281*14mm | 400*290*35mm | 413*288*30mm | 420*230*25mm | 447*219*17mm |
| ●Inside dimension | 364*269mm | 358*248mm | 115*117mm | / | 427*88mm | |
| ●Inner diameter size | / | / | / | 405*210mm | 100*104*62*55mm | |
| ●Neg height | / | / | / | 0.8mm | / | |
| ●Resistance (heavy hammer) | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | |
| ●Weight | 250g | 380g | 400g | 270g | 220g | |
| Product name | EVA rubber integrated molding tray | |||||
| Product model | 454-271-41 | 455-269-76 | 490-325-30 | 493-380-22 | 500-282-44 | |
 |
 |
 |
 |
 |
||
| Specification parameters | ●Outer Dimensions | 454*270*41mm | 455*269*76mm | 490*325*30mm | 493*380*22mm | 500*282*44mm |
| ●Inside dimension | 400*240mm | 411*240mm | 445*283mm | / | / | |
| ●Inner diameter size | / | / | / | 67*30*155*357*54mm | 457*252mm | |
| ●Neg height | / | / | / | 54mm | 30mm | |
| ●Resistance (heavy hammer) | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | |
| ●Weight | 580g | 430g | 480g | 760g | 590g | |
| Product name | EVA rubber integrated molding tray | |||||
| Product model | 510-300-110 | 537-370-100 | 537-382-63 | 539-343-12 | 548-379-85 | |
 |
 |
 |
 |
 |
||
| Specification parameters | ●Outer Dimensions | 510*300*110mm | 537*370*100mm | 537*382*63mm | 539*343*12mm | 548*379*85mm |
| ●Inside dimension | 441*256mm | 498*330mm | 474*338mm | / | 223*164mm | |
| ●Inner diameter size | / | 97*180mm | / | / | / | |
| ●Neg height | / | / | / | / | / | |
| ●Resistance (heavy hammer) | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | |
| ●Weight | 1140g | 1430g | 810g | 260g | 1340g | |
| Product name | EVA rubber integrated molding tray | |||||
| Product model | 548-408-55 | 551-371-52 | 561-367-54 | 616-597-39 | 637-423-100 | |
 |
 |
 |
 |
 |
||
| Specification parameters | ●Outer Dimensions | 548*408*55mm | 551*371*52mm | 561*367*54mm | 616*597*39mm | 637*423*100mm |
| ●Inside dimension | 507*368mm | / | 533*337mm | / | 555*184mm | |
| ●Inner diameter size | / | 500*320mm | 162*80mm | 287*416mm | / | |
| ●Neg height | / | 35mm | / | / | / | |
| ●Resistance (heavy hammer) | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | |
| ●Weight | 780g | 890g | 850g | 1700g | 1770g | |
| Product name | EVA rubber integrated molding tray | |||||
| Product model | 647-481-56 | 685-267-40 | 700-680-35 | 736-512-6 | 796-298-80 | |
 |
 |
|
 |
 |
||
| Specification parameters | ●Outer Dimensions | 647*481*56mm | 685*267*40mm | 700*680*35mm | 736*512*6mm | 796*298*80mm |
| ●Inside dimension | 424*589mm | 645*227mm | 665*640mm | / | 758*260mm | |
| ●Inner diameter size | / | / | 310*155mm | / | / | |
| ●Neg height | / | / | / | / | / | |
| ●Resistance (heavy hammer) | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | 10⁴⁻⁸ Ω | |
| ●Weight | 1170g | 800g | 1600g | 550g | 1080g | |
