Product Introduction

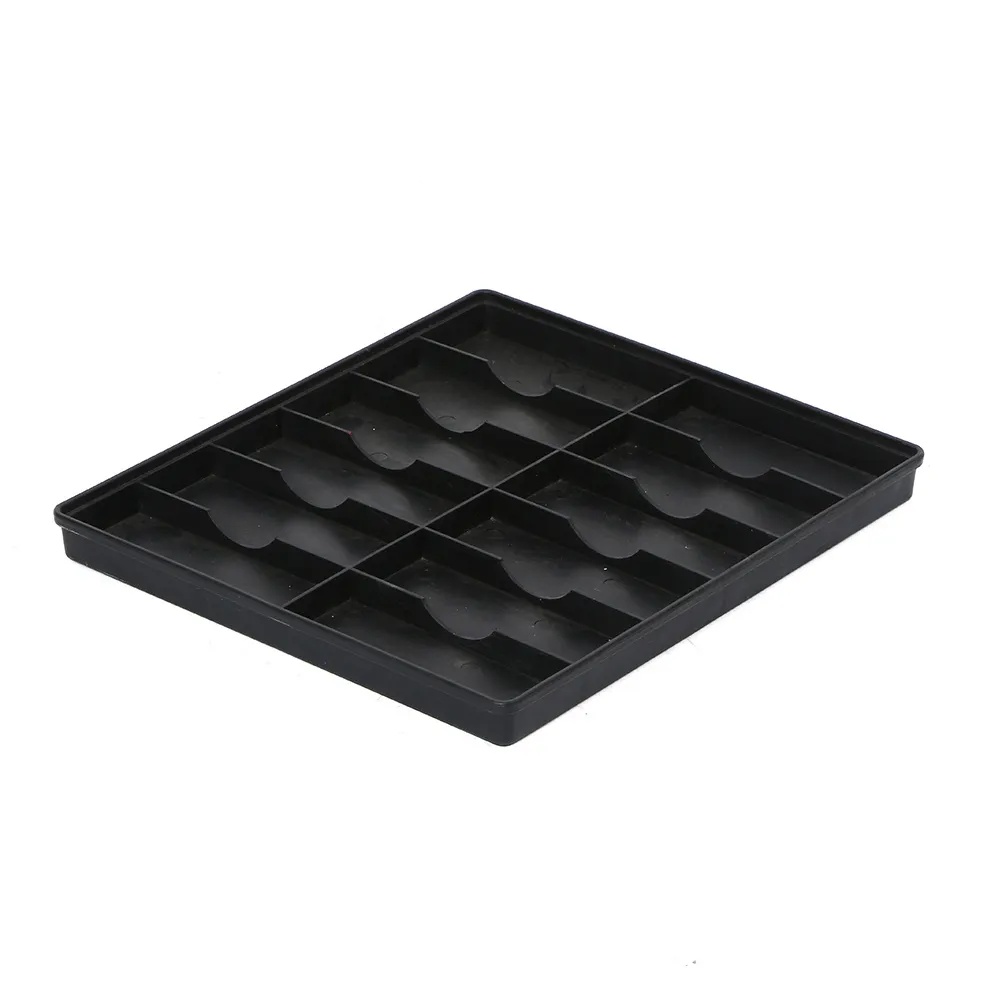

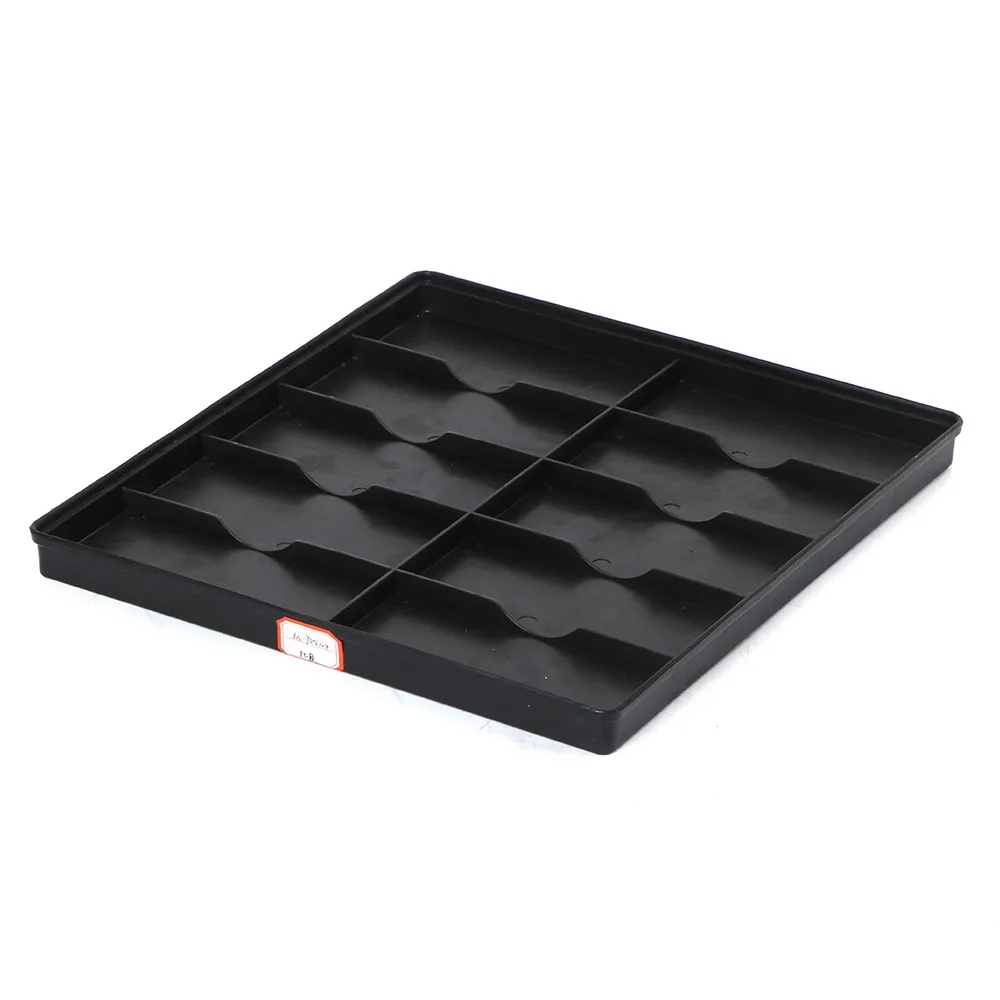

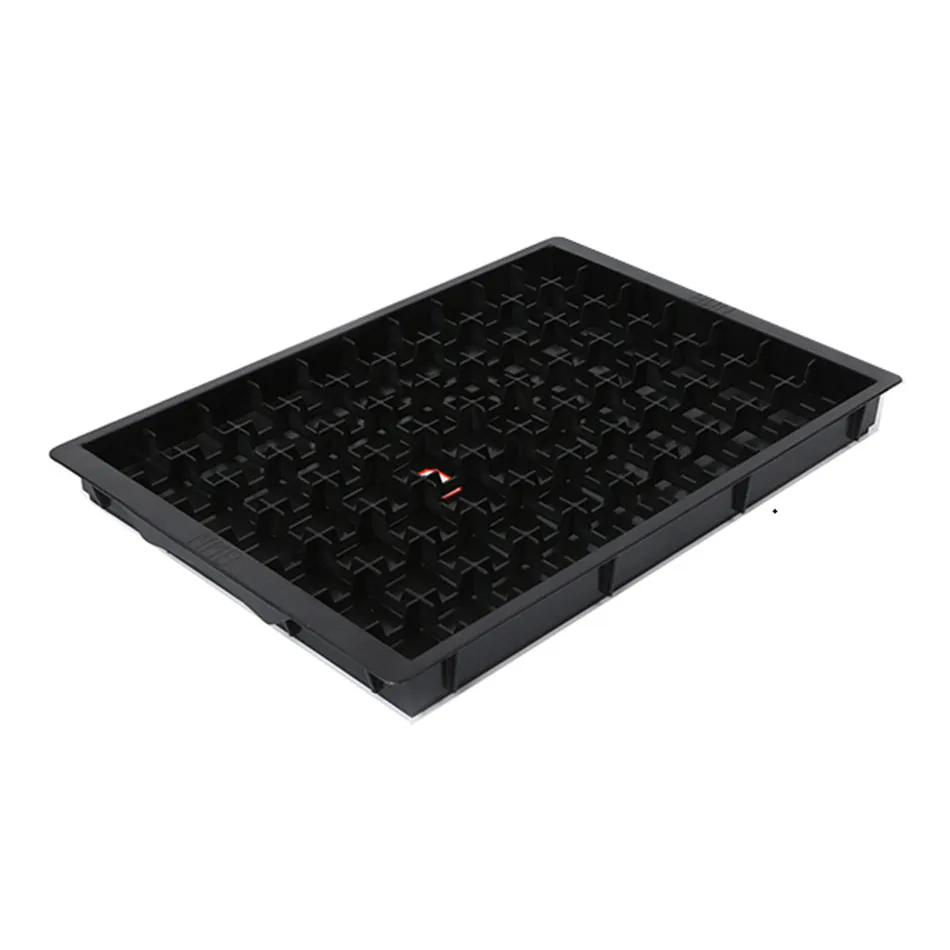

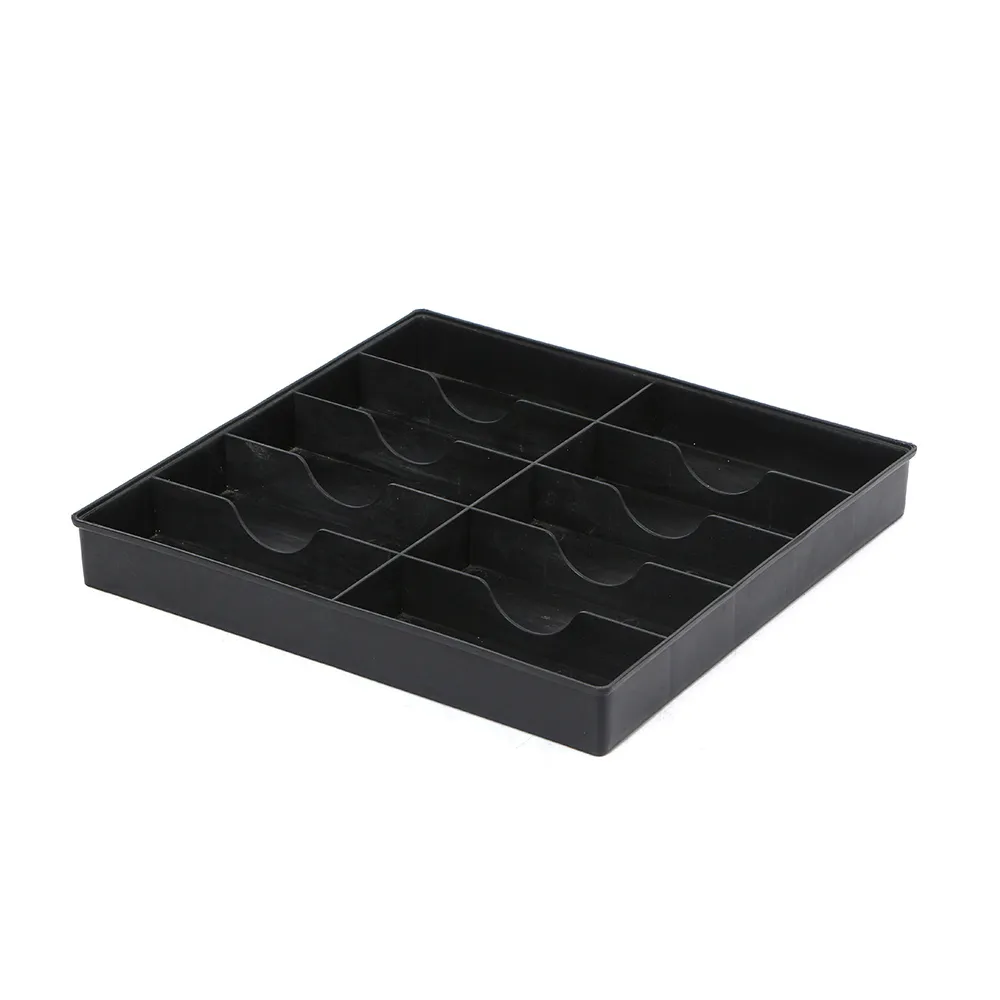

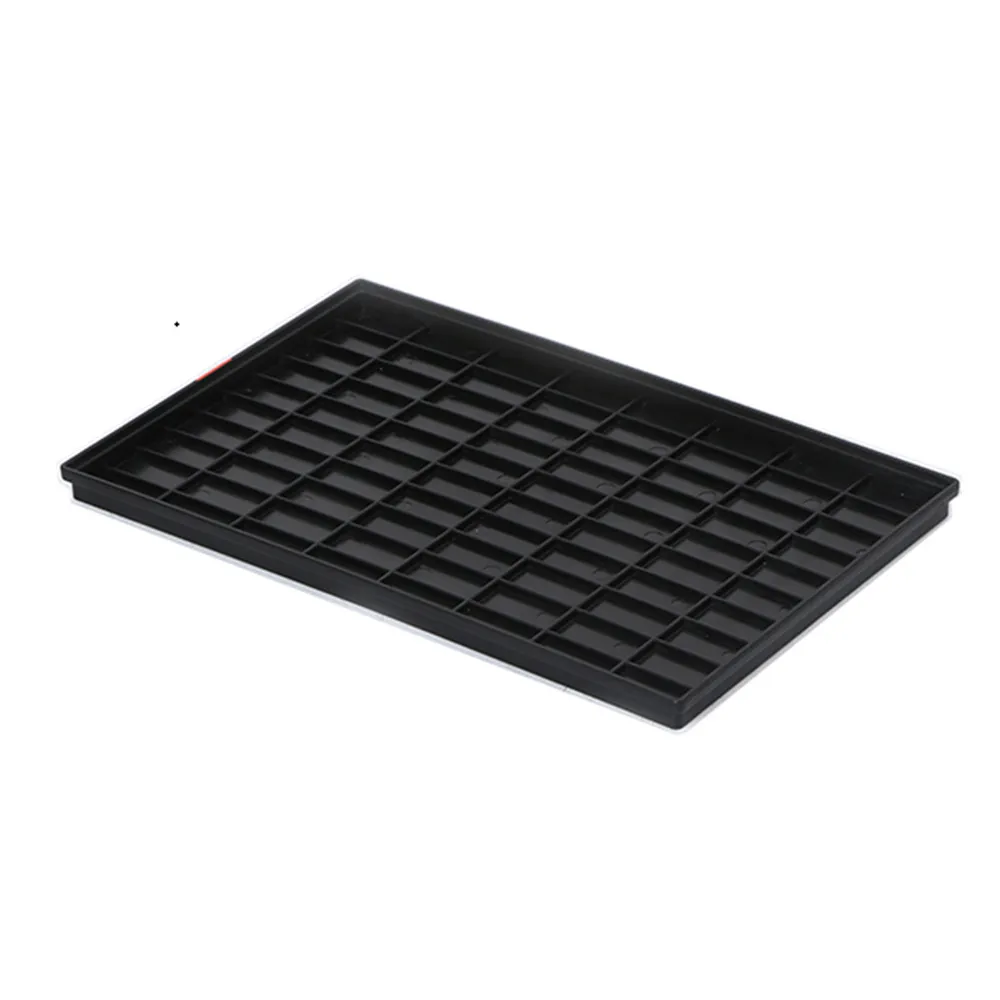

The grid-shaped anti-static tray is a tray made of special conductive material. Its surface has excellent conductive properties and can quickly release the static charge accumulated on the surface of objects, thereby preventing electrostatic discharge (ESD) from damaging electronic equipment and precision instruments. The grid design on the tray can separate different items or electronic components, play a role in classified storage, prevent collision and friction, and also facilitate sorting and counting.

Features

Excellent anti-static performance: By using conductive PP materials or surface treatment technology, static charges can be quickly introduced into the ground to prevent charge accumulation and excessive potential difference, effectively avoid the occurrence of electrostatic discharge, and provide reliable protection for electrostatic sensitive components.
Sturdy and durable: Made of high-strength materials, it has a solid structure and can withstand heavy weight and impact. At the same time, its surface is wear-resistant and corrosion-resistant, and it can maintain stable performance in various harsh environments and has a long service life.
Easy to clean: The surface is smooth and flat, not easy to be stained with dust and dirt, and it is very convenient to clean. Just use clean water or special detergent to easily remove stains, keep the surface of the tray clean and hygienic, and help maintain a good working environment.
A variety of sizes and specifications are available: A variety of external dimensions and grid sizes are available to meet the needs of different equipment, components and occasions. Users can choose the appropriate pallet size, grid number and load-bearing capacity according to their actual needs, with high flexibility.
Economic and environmentally friendly: Made of environmentally friendly materials, it complies with relevant national standards and regulations. Its long life and easy maintenance also reduce the cost of use, reduce the cost of frequent pallet replacement and resource waste, and bring higher economic benefits to users

Technical Specification

Product name		ESD Tray
Product model		3W-9805112	3W-9805120-2	3W-9805121	3W-9805122	3W-9805123
Specification parameters	●External dimensions:	457*312*39mm	340*123*54mm	350*340*44mm	315*290*34mm	290*260*24mm
	●Inner size:	417*292*30mm	295*112*48mm	168*64*36 mm	305*278*27mm	278*250*20mm
	●Wall:	2mm	3.5mm	3mm	2.5mm	2.5mm
	●Bottom wall:	3mm	2.5mm	3mm	3mm	3mm
	●Weight:	0.73Kg	0.37Kg	0.8Kg	0.5Kg	0.37Kg
Product description		◆The grid is detachable, divided into 70 grids	\
		◆Static index: 10e4-10e8	◆It is divided into two grids, with slots on the long side	◆Static index: 10e4-10e8	●Internally divided into ten grids, each grid: 137*57*23m	◆Internally divided into twelve grids, each grid: 122*44*1 5mm
		\	◆Box cover can be equipped	\	◆Static index: 10e4-10e8	◆Static index: 10e4-10e8
Temperature resistance customization		□120°C              □150°C
Color customization		□      □       □    □other
Remarks		\	\	Internally divided into ten grids, each grid: 168*64*28mm	\	\
Optional accessories		□Anti-static label	□Anti-static label	□Anti-static label	□Anti-static label	Anti-static label
		□Silk screen printing	□Anti-static partition	□Anti-static partition	□Screen printing	mouth screen printing
		\	□Screen printing	□Screen printing	\	\



Product name		ESD Tray
Product model		3W-9805124	3W-9805127	3W-9805128	3W-9805129
Specification parameters	●External dimensions:	315*290*23mm	400*325*29mm	315*202* 16mm	356*282*20mm
	●Inner size:	300*27 7*18mm	400*325*29mm	300* 190* 12mm	345*270*15mm
	●Wall:	2.5mm	3mm	3mm	3mm
	●Bottom wall:	3mm	4mm	2.5mm	2.5mm
	●Weight:	0.4Kg	0.74Kg	0.29Kg	0.5Kg
Product description		◆Internally divided into ten grids, each grid: 136*56*15mm	◆Internally divided into 20 grids, each grid: 65*65*25mm	◆Internally divided into 80 grids, each grid: 36*18*4mm	◆Internally divided into 80 grids, each grid: 40*24*5mm
		◆Static index: 10e4-10e8Ω	◆Static index: 10e4-10e8Ω	◆Static index: 10e4-10e8Ω	◆Static index: 10e4-10e8Ω
Temperature resistance customization		□120°C             □150°C
Color customization		□      □       □    □other
Optional accessories		□Anti-static label	□Anti-static label	□Anti-static label	□Anti-static label
		□Screen printing	□Screen printing	□Screen printing	□Screen printing

*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
