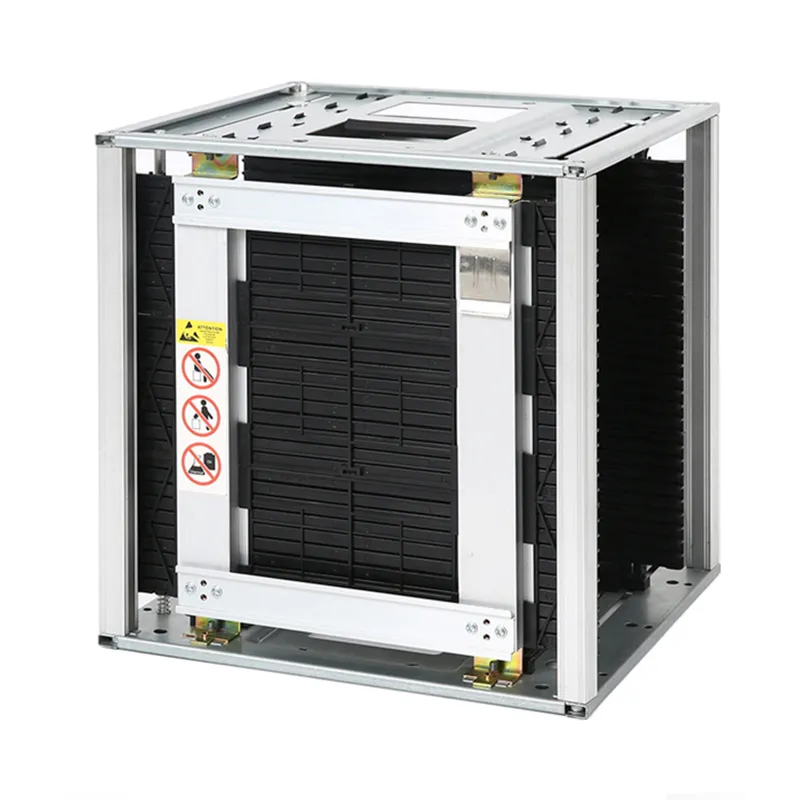

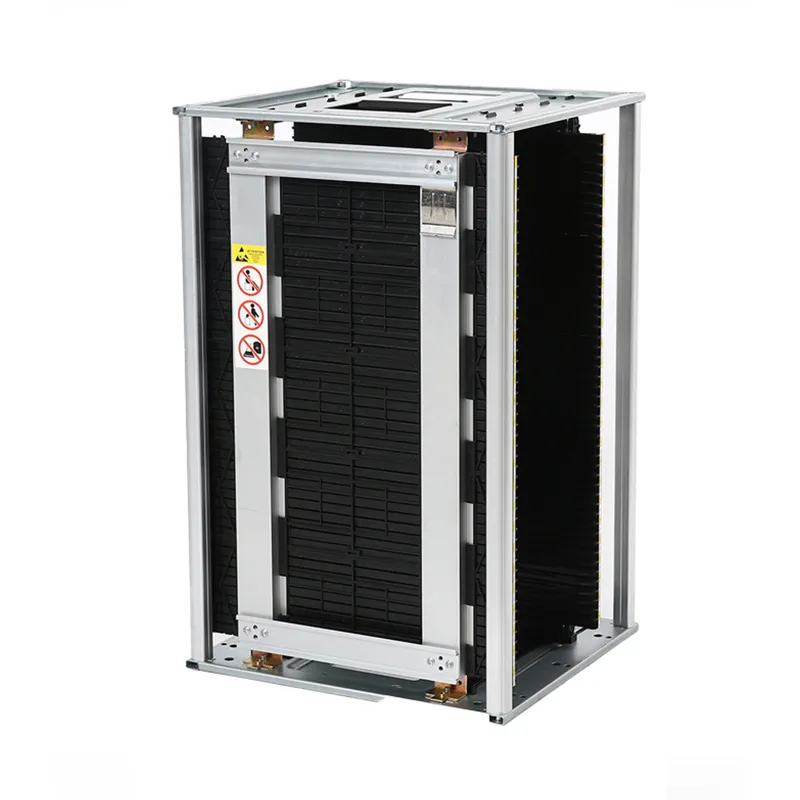

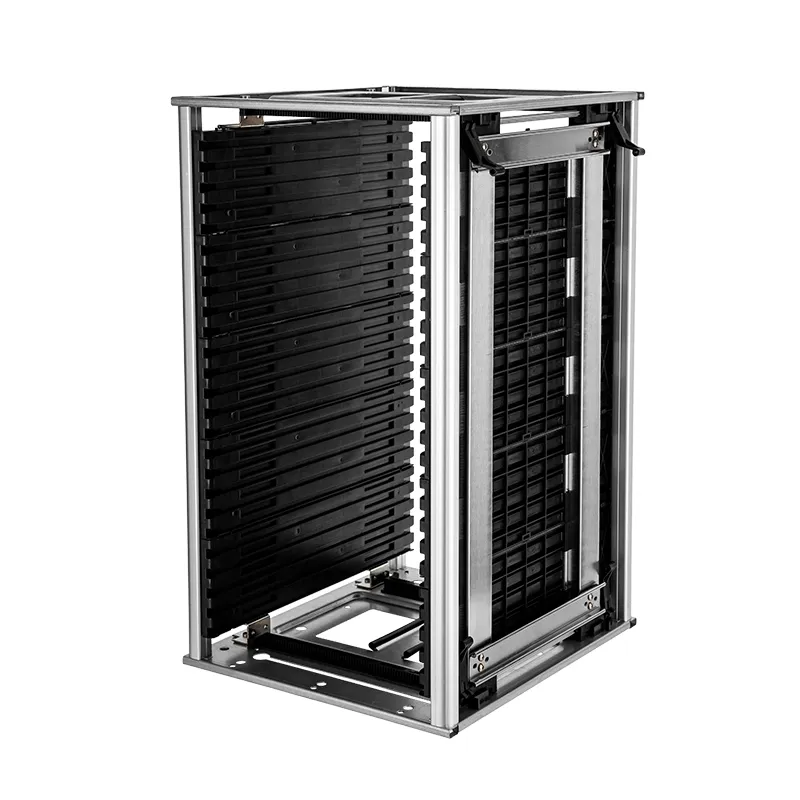

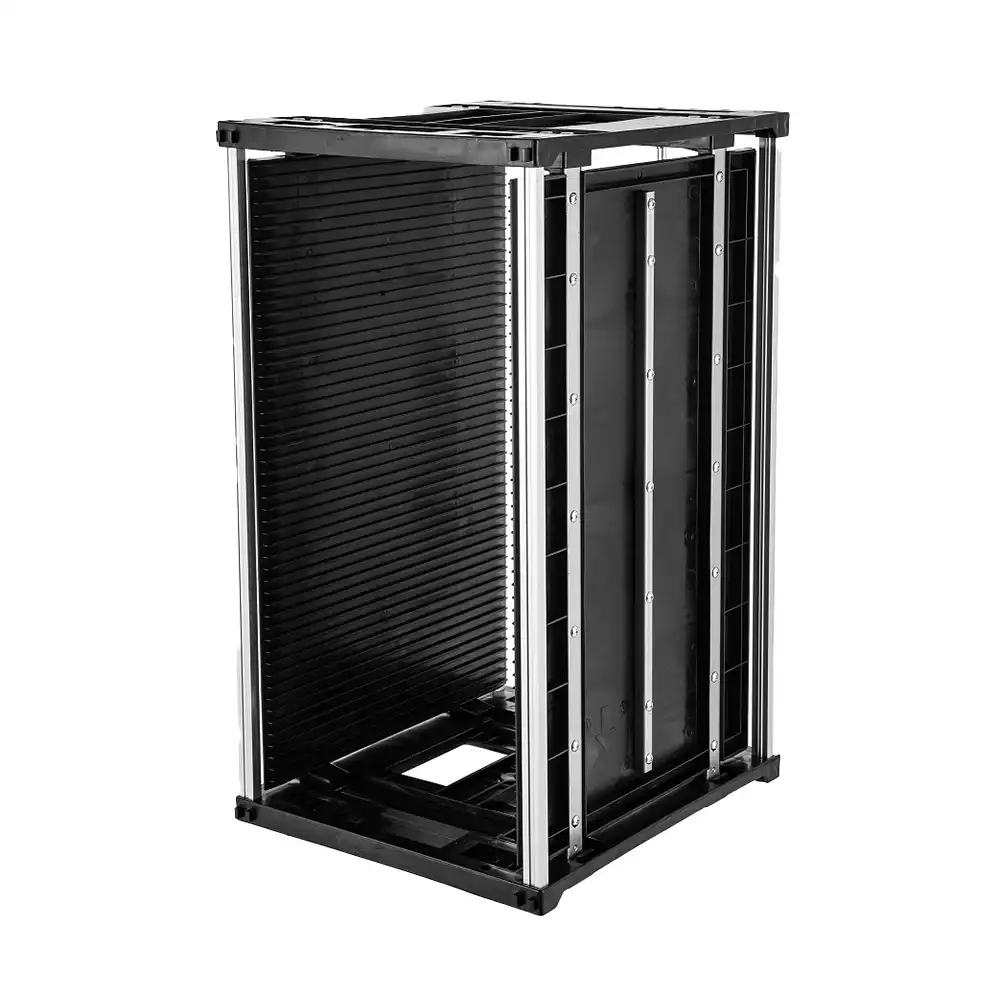

ESD Magazine Rack【355(L)*320(W)*H mm】
Overview:
Product Introduction
In the fields of electronic manufacturing, precision instrument production and other fields that are sensitive to static electricity, anti-static magazine racks are indispensable professional storage tools. With their excellent performance, they ensure the efficiency and safety of the production process.
Highly efficient anti-static, protecting product safety: using high-quality materials such as anti-static engineering plastics and metals coated with anti-static coatings, the surface resistance is precisely controlled at 10⁶ – 10¹¹Ω, which can instantly direct static electricity to the ground, and can function stably even in complex environments, providing long-lasting and reliable static protection for electronic components, precision instruments, etc., to avoid product damage or performance degradation caused by static electricity. The metal steel frame with rigorous mechanical design has a stable and reliable structure, and large-size products can bear up to hundreds of kilograms. Whether it is the classified storage of small electronic components or the temporary storage of heavy industrial parts, it can easily handle the task and is widely used in electronic manufacturing, mechanical processing and other industries.
Technical Specification
| Product name | ESD Magazine Rack | ||||||||||

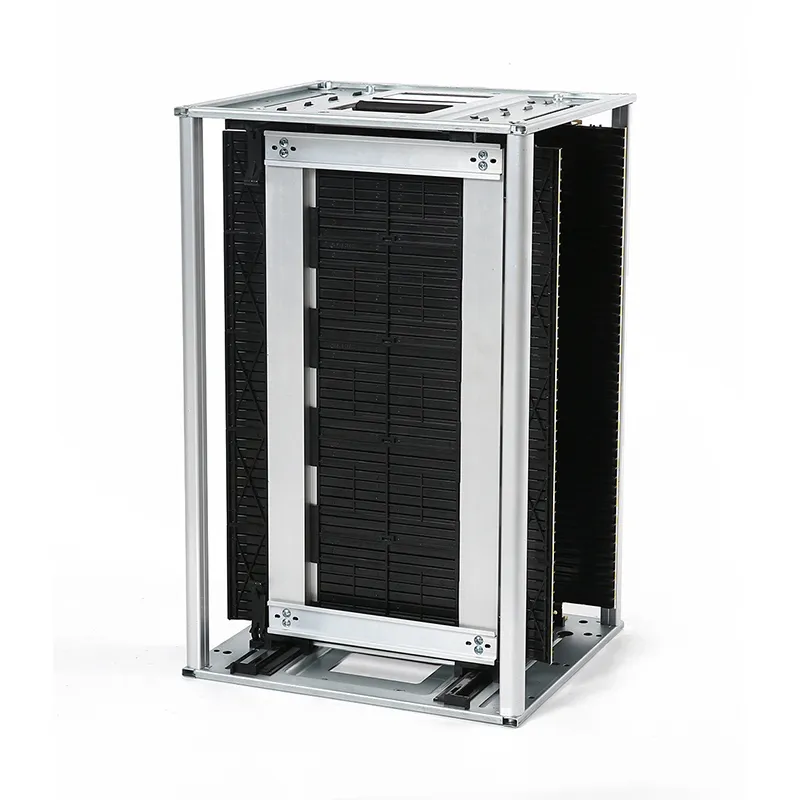

| Product model | 3W-9805301B1 | 3W-9805301B1-1 | 3W-9805301B1-2 | 3W-9805301B1-3 | 3W-9805301B1-4 | ||||||
 |
 |
 |
 |
 |
|||||||
| Adjustment method | Gear adjustment | Screw adjustment | Gear adjustment | ||||||||
| Specification parameters | ●External dimensions: | 355*320*563mm | 355*320*563mm | 355*320*563mm | 355*320*363mm | 355*320*563mm | |||||
| ●Base position: | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 31mm; B: 34mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | ||||||
| ●Adjustable width: | 40-250mm | 40-250mm | 40-250mm | 40-250mm | 40-250mm | ||||||
| ●Groove depth: | 3.5mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm | ||||||
| ●Slot width: | 5mm | 5mm | 5mm | 5mm | 7mm | ||||||
| ●Pitch: | 10mm | 10mm | 10mm | 10mm | 20 mm | ||||||
| ●Number of slots: | 50 | 50 | 50 | 30 | 25 | ||||||
| ●Weight: | 5.56Kg | 5.33Kg | 5.54 | 4.52Kg | 5.6Kg | ||||||
| ●Carrier: | 20kg | 20kg | 20kg | 12kg | 20kg | ||||||
| Product description | ◆Baffle mechanism: spring lever | ||||||||||
| ◆Static index: 10e4-10e8Ω | |||||||||||
| ◆Side board structure: 5 pieces of boards | |||||||||||
| ◆Bottom plate material: galvanized bottom plate | |||||||||||
| Temperature resistance options | 口100°C 口120°C 口150°C (can enter 120°C oven) | ||||||||||
| Optional accessories | □Metal folder | ||||||||||
| □Stacking screw | |||||||||||
| □Layer number label | |||||||||||
| □Anti-sit tag | |||||||||||
| □Turnover cart (3W-9806101 series) | |||||||||||
| Product name | ESD Magazine Rack | ||||||||||
| Product model | 3W-9805301B1-5 | 3W-9805301B1-6 | 3W-9805301B1-7 | 3W-9805301B1-8 | 3W-9805301B1-9 | ||||||
 |
 |
 |
 |
 |
|||||||
| Adjustment method | Gear adjustment | Gear adjustment | Screw adjustment | Gear adjustment | Gear adjustment | ||||||
| Specification parameters | ●External dimensions: | 355*500*563mm | 550*320*263mm | 355*320*263mm | 710*320*563mm | 355*320*563mm | |||||
| ●Base position: | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | ||||||
| ●Adjustable width: | 90-430mm | 40-250mm | 40-250mm | 40-250mm | 40-250mm | ||||||
| ●Groove depth: | 3.5mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm | ||||||
| ●Slot width: | 5mm | 5mm | 5mm | 5mm | 5mm | ||||||
| ●Pitch: | 10mm | 10mm | 10mm | 10mm | 10 mm | ||||||
| ●Number of slots: | 50 | 20 | 10 | 50 | 50 | ||||||
| ●Weight: | 6.94Kg | 3. 99Kg | 3.1Kg | 11.54Kg | 5.9Kg | ||||||
| ●Carrier: | 20kg | 20kg | 10kg | 20kg | 20kg | ||||||
| Product description | ◆Baffle mechanism: spring lever | ||||||||||
| ◆Static index: 10e4-10e8Ω | |||||||||||
| ◆Side board structure: 5 pieces of boards | ◆Side board structure: 2 pieces of boards | ◆Side board structure: 1 pieces of boards | ◆Side board structure: 10 pieces of boards | ◆Side board structure: 5 pieces of boards | |||||||
| ◆Bottom plate material: galvanized bottom plate | |||||||||||
| Temperature resistance options | 口100°C 口120°C 口150°C (can enter 120°C oven) | ||||||||||
| Optional accessories | □Metal folder | ||||||||||
| □Stacking screw | |||||||||||
| □Layer number label | |||||||||||
| □Anti-sit tag | |||||||||||
| □Turnover cart (3W-9806101 series) | |||||||||||
| Product name | ESD Magazine Rack | |||||

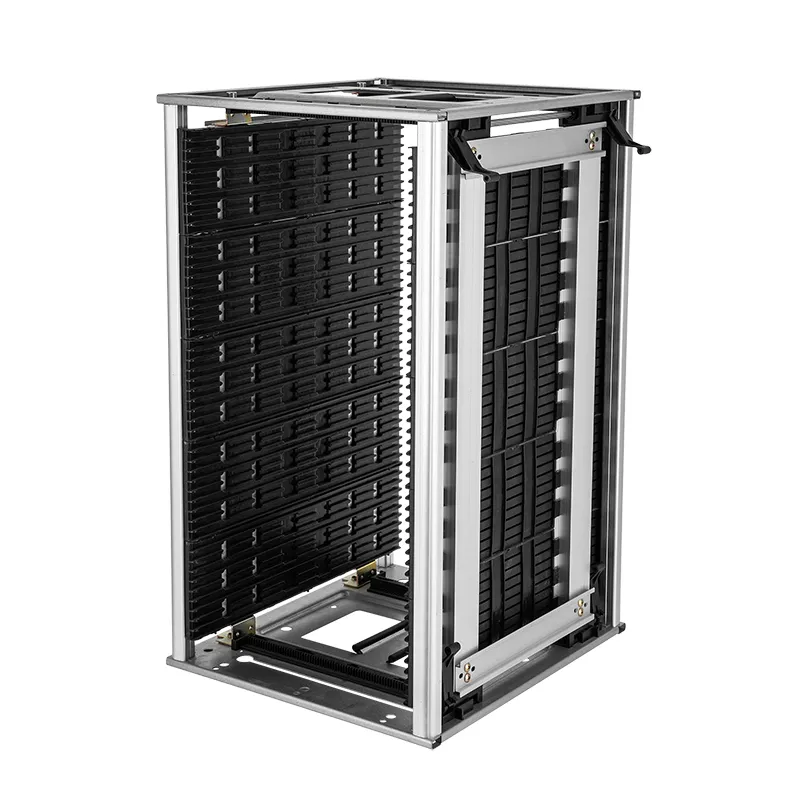

| Product model | 3W-9805301B1H | 3W-9805301B2 | 3W-9805301B2-1 | 3W-9805301B2-3 | 3W-9805301B3 | |
 |
 |
 |
 |
 |
||
| Adjustment method | Screw adjustment | Gear adjustment | Screw adjustment | Gear adjustment | Gear adjustment | |
| Specification parameters | ●External dimensions: | 355*320*563mm | 355*320*563mm | 355*320*563mm | 355*320*563mm | 355*320*563mm |
| ●Base position: | A: 34mm; B: 34mm | A: 34mm; B: 34mm. | A: 34mm; B: 34mm. | A: 34mm; B: 34mm | A: 34mm; B: 33mm . | |
| ●Adjustable width: | 35-250mm | 50-250mm | 30-250mm | 40-250mm | 40-250mm | |
| ●Groove depth: | 3.5mm | 3.5mm | 3.5mm | 3.5mm | 3mm | |
| ●Slot width: | 5mm | 5mm | 10mm | 7mm | 7mm | |
| ●Pitch: | 10 mm | 10 mm | 20 mm | 20 mm | 10 mm | |
| ●Number of slots: | 50 | 50 | 50 | 25 | 50 | |
| ●Weight: | 5.88Kg | 4.18Kg | 4. 07Kg | 4.3Kg | 6.94Kg | |
| ●Carrier: | 20kg | 20kg | 20kg | 20kg | 20kg | |
| Product description | ◆Baffle mechanism: spring lever | |||||
| ◆Static index: 10e4-10e8Ω | ||||||
| ◆Side board structure: 5 pieces of puzzle | ◆Side board structure: Whole board | |||||
| ◆Bottom plate material: galvanized | ◆Bottom plate material: plastic | ◆Bottom plate material: plastic | ◆Bottom plate material: plastic | ◆Bottom plate material: galvanized | ||
| Temperature resistance options | 口200°C (can enter 160°C oven) | 口100°C 口120°C 口150°C (can enter 120°C oven) | ||||
| Optional accessories | 口Metal folder | |||||
| 口Stacking screw | ||||||
| 口Layer number label | ||||||
| 口Anti-sit label | ||||||
| □Turnover cart (3W-9806101 series) | ||||||
| Product name | ESD Magazine Rack | |||||
| Product model | 3W-9805301B3-1 | 3W-9805301B3-2 | 3W-9805301B3-3 | 3W-S9805301B4 | 3W-S9805301B4-1 | |
 |
 |
 |
 |
 |
||
| Adjustment method | Screw adjustment | Gear adjustment | Gear adjustment | Gear adjustment | Screw adjustment | |
| Specification parameters | ●External dimensions: | 355*320*563mm | 355*500*563mm | 355*320*563mm | 355*320*563mm | 355*320*563mm |
| ●Base position: | A: 34mm; B: 33mm | A: 34mm; B: 33mm | A: 31mm; B: 33mm | A: 34 mmB: 33 mm | A: 34 mmB: 33 mm | |
| ●Adjustable width: | 30-250mm | 90-435mm | 40-250mm | 40-250mm | 40-250mm | |
| ●Groove depth: | 3mm | 3mm | 3mm | 3mm | 3mm | |
| ●Slot width: | 7mm | 7mm | 7mm | 7mm | 7mm | |
| ●Pitch: | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | |
| ●Number of slots: | 50 | 50 | 50 | 50 | 50 | |
| ●Weight: | 6.8Kg | 8.24kh | 6. 9kg | 5.52kg | 5.48kg | |
| ●Carrier: | 20kg | 20kg | 20kg | 20kg | 20kg | |
| Product description | ◆Baffle mechanism: spring lever | |||||
| ◆Static index: 10e4-10e8 Ω | ||||||
| ◆Side board structure: whole board | ||||||
| ◆Bottom plate material: metal | ◆Bottom plate material: metal | ◆Bottom plate material: metal | ◆Bottom plate material: plastic | ◆Bottom plate material: plastic | ||
| Temperature resistance options | 口100°C 口120°C 口150°C (can enter 120C oven) | |||||
| Optional accessories | □Metal folder | |||||
| □Stacking screw | ||||||
| □Layer number label | ||||||
| □Anti-sit tag | ||||||
| □Turnover cart (3W-9806101 series) | ||||||
| Product name | ESD Magazine Rack | |||||
| Product model | 3W-9805301Q | 3W-9805301R | 3W-9805301R-1 | 3W-9805301R-2 | 3W-9805301R-3 | |
 |
 |
 |
 |
|||
| Adjustment method | Quick adjustment | Screw adjustment | Screw adjustment | Screw adjustment | Screw adjustment | |
| Specification parameters | ●External dimensions: | 355*320*563 mm | 355*320*565 mm | 355*320*565 mm | 355*320*568 mm | 355*320*568 mm |
| ●Base position: | A: 34 mmB: 34 mm | A: 34mm; B: 34mm | A: 34mm; B: 34mm | A: 33mm; B: 33.5mm | A: 33mm; B: 33.5mm | |
| ●Adjustable width: | 50-250mm | 50-250mm | 50-230mm | 50-240mm | 50-230mm | |
| ●Groove depth: | 3.5mm | 4mm | 4mm | 4mm | 4mm | |
| ●Slot width: | 5 mm | 7mm | 7mm | 7mm | 7mm | |
| ●Pitch: | 10 mm | 10mm | 10mm | 10mm | 10mm | |
| ●Number of slots: | 50 | 50 | 50 | 25 | 50 | |
| ●Weight: | 5.53 kg | 7.12Kg | 8.5Kg | 6.72Kg | 8.68Kg | |
| ●Carrier: | 20 kg | 20 kg | 20 kg | 20 kg | 20kg | |
| Product description | ◆Baffle mechanism: spring stop lever | |||||
| ◆Static index: 10e4-10e8Ω | ||||||
| ◆Side board structure: 5-piece boards | ◆Side board structure: whole board | |||||
| ◆Bottom plate material: metal plate | ◆Bottom plate material: plastic board | ◆Bottom plate material: metal plate | ◆Bottom plate material: plastic board | ◆Bottom plate material: metal plate | ||
| Temperature resistance options | □100℃ □120℃ □150 ℃ | 口125°C | ||||
| Optional accessories | □Metal folder | |||||
| □Stacking screws | ||||||
| □Layer number label | ||||||
| □Anti-sit tag | ||||||
| □Turnover cart (3W-9806101 series) | ||||||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
