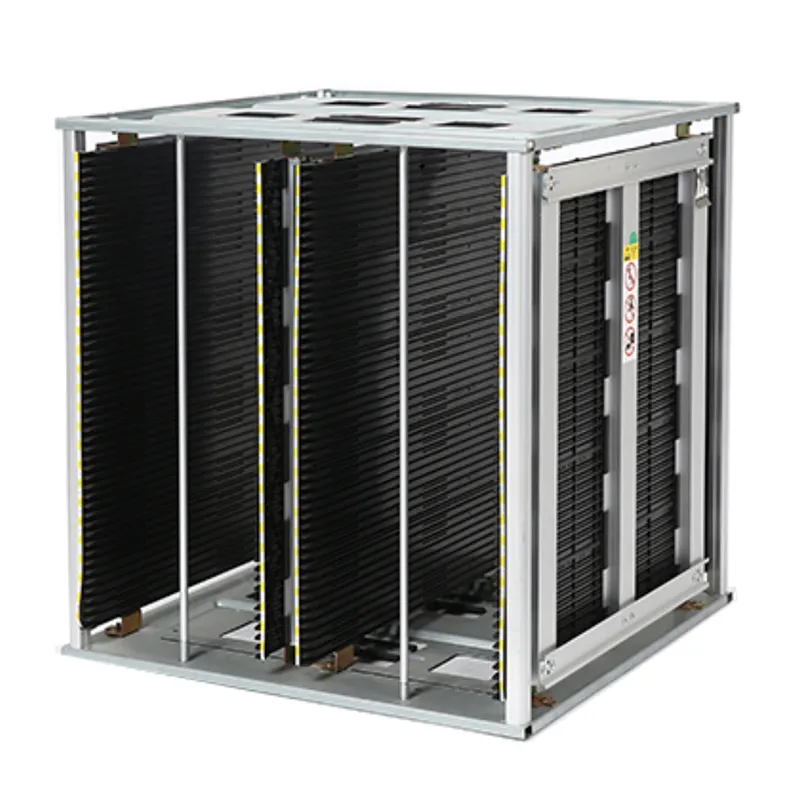

ESD Magazine Rack【400(L)*320(W)*H mm】
Overview:
The anti-static magazine rack is an essential professional storage device. Thanks to its outstanding performance, it guarantees the efficiency and safety of the production process. Crafted from high-grade materials, including anti-static engineering plastics and metals with anti-static coatings on their surfaces,
Product Introduction
The anti-static magazine rack is an essential professional storage device. Thanks to its outstanding performance, it guarantees the efficiency and safety of the production process. Crafted from high-grade materials, including anti-static engineering plastics and metals with anti-static coatings on their surfaces, it offers durable and dependable static protection for electronic components, precision instruments, and the like. This protection prevents product damage or performance deterioration due to static electricity. Moreover, it comes in various styles, such as multi-layer drawer types, open shelves, foldable models, etc., making it adaptable to diverse storage situations.Through electroplating, spraying corrosion-resistant coating and other processes, it has excellent acid and alkali resistance and oil resistance; high-quality materials have strong wear resistance and can withstand frequent handling. At the same time, its smooth surface is easy to clean, and its simple structural design makes fault inspection easier, effectively reducing maintenance costs and downtime.
Technical Specification
| Product name | ESD Magazine Rack | |||
| Product model | 3W-9805301B2-2 | 3W-9805301B2-5 | 3W-9805301N | |
 |
 |
 |
||
| Adjustment method | Gear adjustment | Gear adjustment | Screw adjustment | |
| Specification parameters | ●External dimensions: | 400*320*573mm | 400*320*563mm | 460*320*568mm |
| ●Base position: | A: 34mm; B: 39mm | A: 34 mm B: 34 mm | A: 34 mm B: 34.5 mm | |
| ●Adjustable width: | 50-250mm | 50-250mm | 50-250mm | |
| ●Groove depth: | 3.5mm | 3.5mm | 3 mm | |
| ●Slot width: | 5mm | 5mm | 7 mm | |
| ●Pitch: | 10 mm | 10 mm | 10 mm | |
| ●Number of slots: | 50 | 50 | 50 | |
| ●Weight: | 5.42Kg | 6.54Kg | 7.72Kg | |
| ●Carrier: | 20kg | 20kg | 20kg | |
| Product description | ◆Baffle mechanism: spring lever | |||
| ◆Static index: 10e4-10e8 Ω | ||||
| ◆Side board structure: 5 pieces of boards | ◆Side board structure: Whole board | |||
| ◆Bottom plate material: Plastic bottom plate | ◆Bottom plate material: Metal bottom plate | ◆Bottom plate material: Plastic bottom plate | ||
| Temperature resistance options | 口100°C 口120°C 口150°C (cannot enter the oven) | |||
| Optional accessories | □Metal folder | |||
| □Layer number label | ||||
| □Anti-sit label | ||||

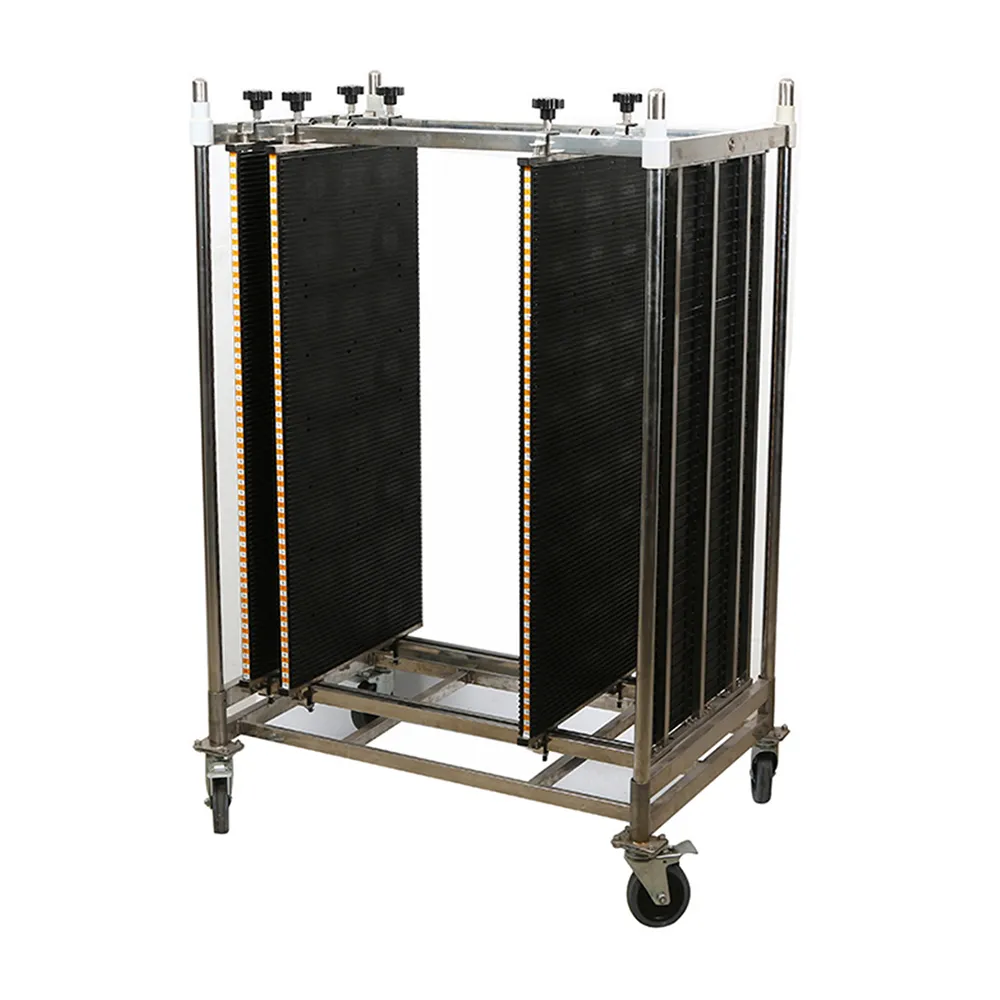

| □Turnover car (3W-9806101 series) | ||||
| □Stacking screws | ||||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
