ESD Magazine Rack with Wheels Mobile ESD PCB Storage Cart
Overview:
Technical advantages
ESD trolley, also known as PCB board turnover cart, transfer cart, storage cart, etc., is an industrial equipment specially designed to prevent static electricity accumulation and discharge. It is mainly used in static-sensitive working environments. By using special materials and technologies, it effectively eliminates static electricity and prevents its accumulation, ensuring the safety and stability of the working process. Anti-static turnover carts are made of special anti-static materials, such as anti-static materials with a surface resistance of 10 to the 6th power to 10 to the 9th power, which can quickly conduct away the accumulated static electricity and prevent static electricity from damaging electronic components. The metal grounding chain installed at the bottom of the car can discharge static electricity through the grounding chain even if the wheels are affected by dust and affect static electricity discharge, further ensuring the effective elimination of static electricity.
Equipped with high-quality anti-static plastic wheels or conductive rubber wheels, some of which have brakes, the trolley is flexible and stable, and is convenient for transporting goods between workshops, warehouses and other places. The design of the wheels makes the trolley quiet during movement and does not interfere with the working environment.
The body frame is usually made of high-quality stainless steel or carbon steel, which has excellent compression and wear resistance, can withstand heavy cargo weight, and maintain a long service life in harsh working environments. For example, some turnover vehicles use 304 stainless steel to make frames, which are not only strong and durable, but also have good corrosion resistance.
Technical Specification
| Product name | ESD Trolley | |
| Product model | 9805208-2 | |
| Specification parameters | ●External dimensions: | 1100*715*1400mm |
| ●Side size: | 1028*545*30(single)/40(double) | |
| ●Pallet size: | 525*250mm | |
| ●Side panel structure: | 4-piece plug-in board | |
| ●Adjustable width: | 0-445mm (Max ) | |
| ●Groove depth: | 4mm | |
| ●Groove width: | 7mm | |
| ●Pitch: | 10 | |
| ●Number of slots: | 100 | |
| ●Weight: | 72.8Kg | |
| ●PCB board storage capacity: | 300 pieces | |
| ●weight bearing: | 150kg | |
| Product description | ◆Bearing design, smooth movement | |

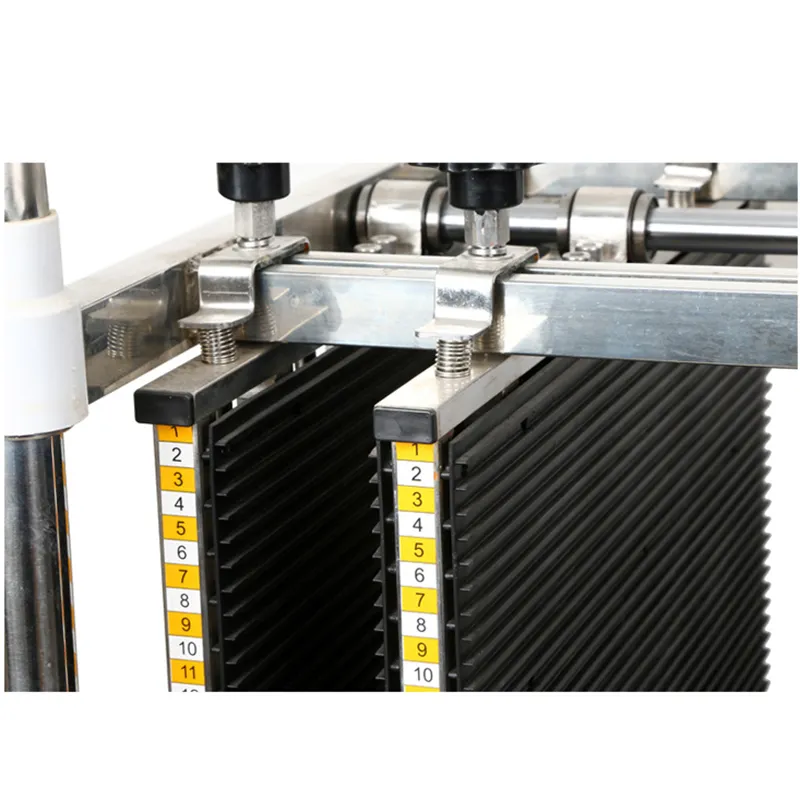

| ◆Double knob locking device | ||
| ◆2 single-sided panels and 1 double-sided panels | ||
| ◆Anti-silent caster material: PU material | ||
| ◆Bottom reinforced crossbar | ||
| ◆Static index: 10e4-10e8Ω | ||
| Temperature resistance options | 口100°C 口120°C 口150°C | |
| Optional accessories | □File box | |
| □Adjustment label | ||
| □Slot code label | ||
| □Anti-static label | ||
| □Anti-collision guardrail | ||
*Temperature resistance refers to the maximum temperature of the PCB board that the turnover cart can withstand
World-Class ESD Manufacturing Capacity
When you source from Sanwei, you are partnering directly with an industry-leading OEM/ODM manufacturer. We operate a state-of-the-art 70,000+ m² integrated production facility in Yueqing Central Industrial Park, Zhejiang, managing every single process from proprietary material formulation to final high-precision product molding.
Integrated Scale
70,000+ m² advanced plant base equipped with heavy-duty precision injection molding machines to handle bulk wholesale orders with stable lead times.
Full-Chain Control
Complete in-house control spanning proprietary anti-static material R&D, structural mold engineering, automated manufacturing, and swift global logistics delivery.
Rigorous Inspection
Strict raw material testing combined with multi-point surface resistivity metering on the production line ensures 100% compliance with international ESD standard guidelines.
Anti-Static Products and Solutions
Delivering comprehensive electrostatic protection across your entire manufacturing and operational lifecycle.
SMT Equipment
Anti-static collection boxes and racks for automated lines.
Storage & Logistics
Turnover carts, shelves, boxes, trays, and component containers.
Workstation & PPE
Anti-static chairs, mats, wrist straps, and personal protection.
Custom Development
Custom mold development and special anti-static materials.
OUR OEM/ODM ADVANTAGES
Advanced R&D & Material Innovation
In-house developed anti-static materials with national invention patents and heat resistance up to 200℃. We do not just mold — we formulate compounds.
Full-Scale Production Capacity
30,000㎡ plant with complete injection molding, granulation and supporting processing systems for stable and efficient supply.
Full-Process Customization
Material resistivity, color, size, logo, packaging and certifications — customizable to meet IEC61340-5-1, ANSI/ESD S20.20 or military standards.
Certified Quality & Global Compliance
“Sanwei successfully developed custom high-temperature resistant clean natural color trays for our semiconductor assembly line, replacing imported products, ensuring excellent ESD safety, and meeting the high cleanliness requirements of the workshop.”
TRUSTED BY GLOBAL FORTUNE 500 INDUSTRY LEADERS
Our proprietary ESD solutions are deployed in elite production facilities worldwide, including: Intel, Motorola, Siemens, IBM, Panasonic, Nokia, and Dell.
Looking for Custom Sizes or Bulk Wholesale Pricing?
Backed by our robust in-house R&D team, Sanwei provides complete OEM/ODM options tailored to your specific SMT production lines or warehouse layout. Contact our specialists today for custom molds, color coding, or integrated 5S storage consulting.
Frequently Asked Questions (FAQ)
What is the HS code for ESD trolley?
The HS code for an ESD trolley may vary depending on its design, materials, and country classification. It is commonly classified under categories for industrial carts, trolleys, or handling equipment. Please confirm with your local customs authority for the exact HS code.
What is an ESD trolley?
An ESD trolley is a mobile storage and handling cart designed to safely transport static-sensitive products such as PCBs, electronic components, and production materials while preventing electrostatic discharge damage.
How an ESD Trolley Works?
An ESD trolley works by using conductive materials, ESD-safe surfaces, and grounding systems to dissipate static electricity. This helps prevent static charge buildup during the transportation and storage of sensitive electronic components.
Why You Need an ESD PCB Trolley?
An ESD PCB trolley helps protect printed circuit boards from electrostatic damage during manufacturing, assembly, inspection, and transportation. It improves production safety, reduces component failure risks, and supports efficient workflow in electronics factories.
What size is a PCB magazine rack?
PCB magazine rack sizes vary depending on PCB dimensions and production requirements. Common ESD PCB racks are designed to fit standard PCB magazines, such as 355 × 320 mm, 460 × 400 mm, or customized sizes for specific production lines.
