Product Introduction

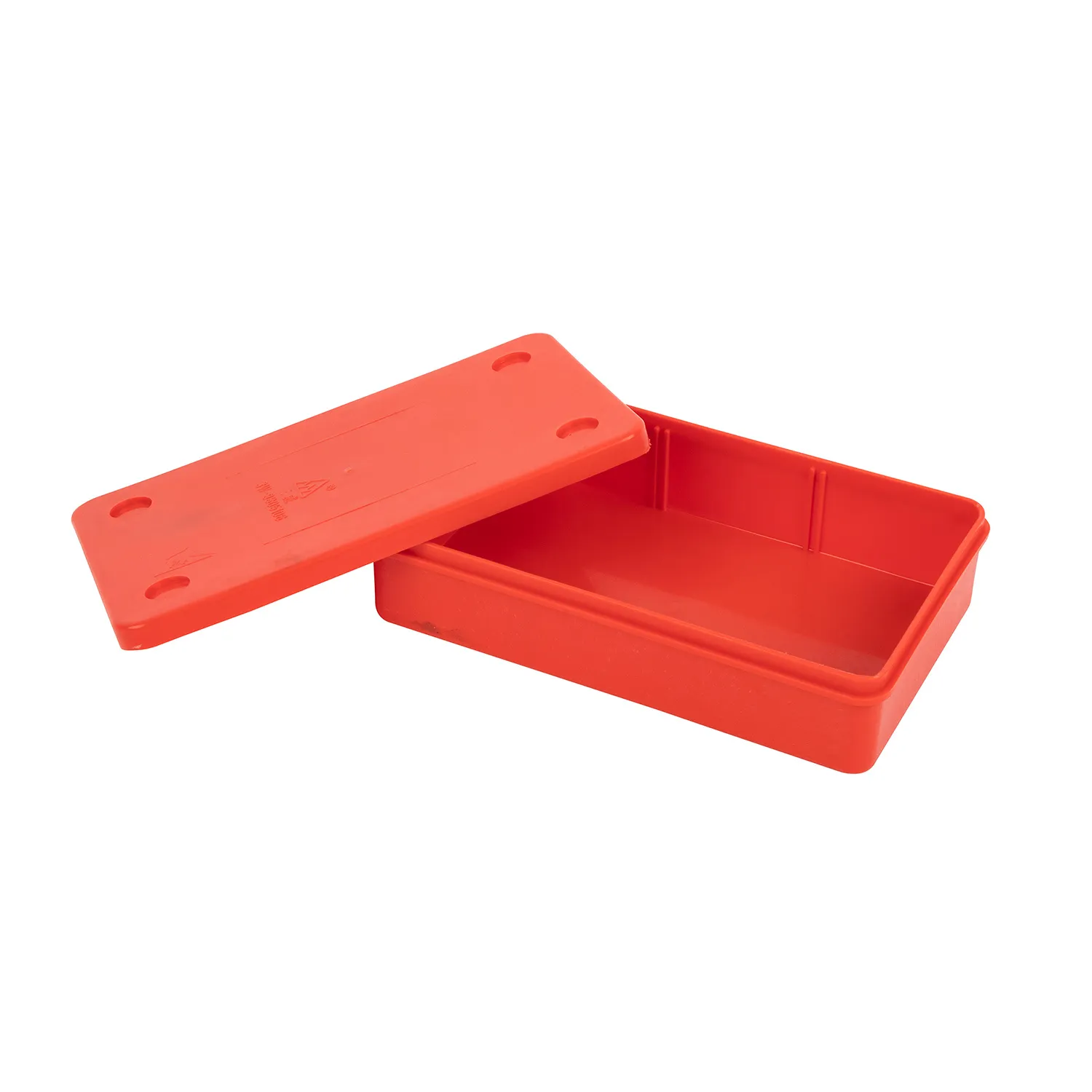

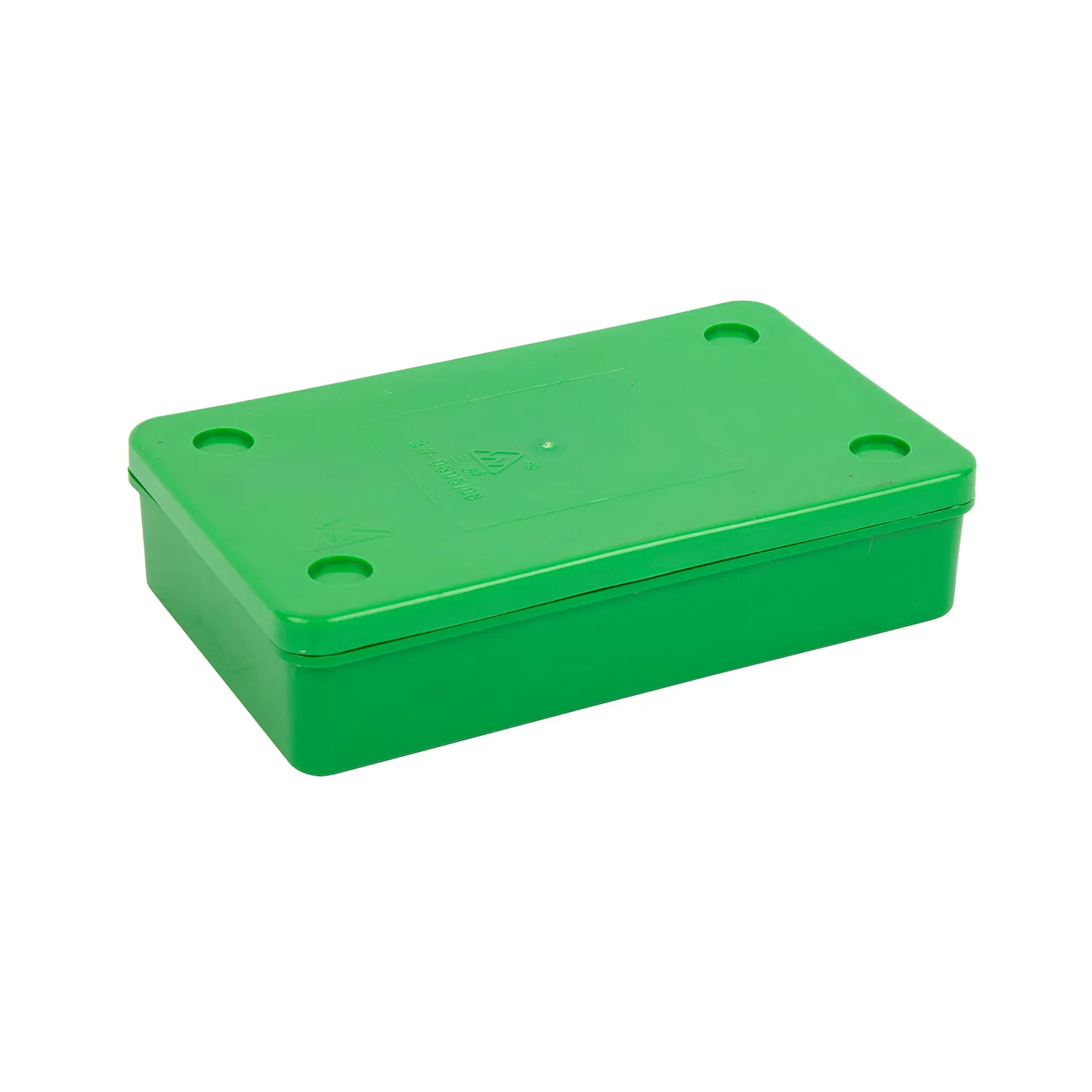

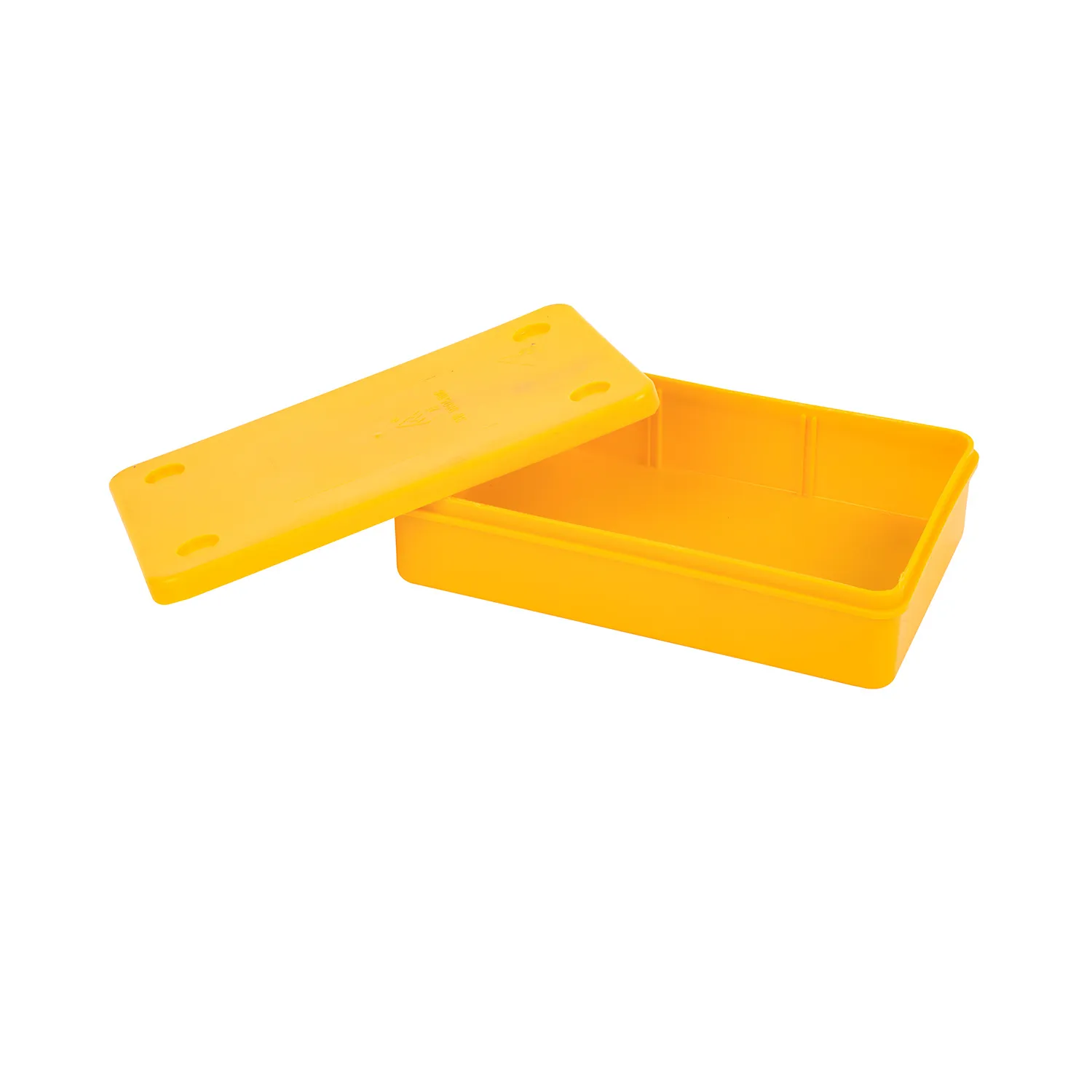

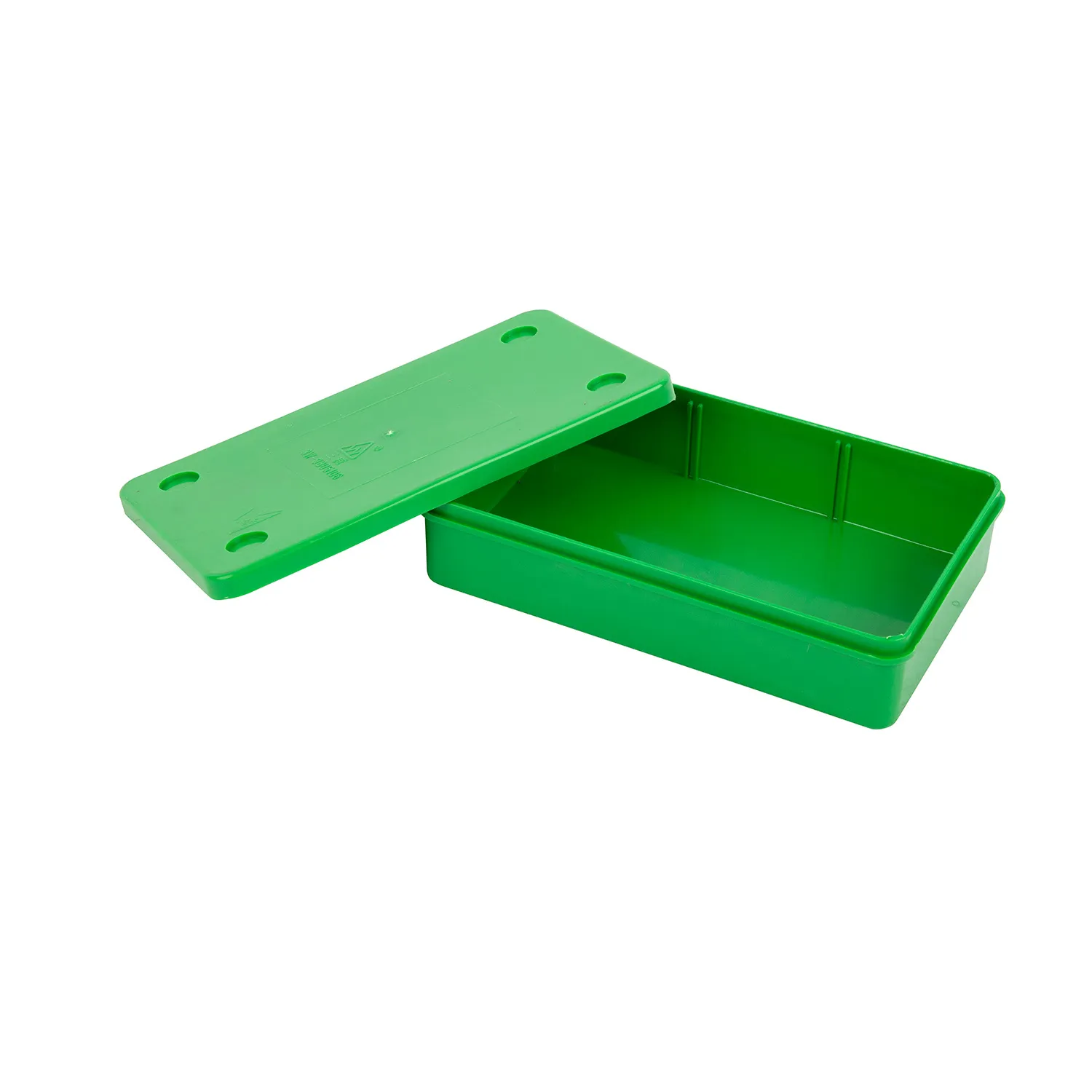

ESD Bin also known as anti-static parts box, is a container specially used to store electronic components and other items. It can effectively prevent the generation and accumulation of static electricity, thereby protecting the stored items from static damage. It is widely used in machinery, automobiles, home appliances, light industry, electronics and other industries. It is suitable for transportation, distribution, warehousing and circulation processing in factory production. It can be used with a variety of logistics containers and workstations. It is suitable for various warehouses and production sites.

Anti-static performance: It can effectively release the static charge accumulated on the surface of objects, prevent charge accumulation and high potential difference, and thus avoid static electricity damage to components.
Material characteristics: non-toxic and odorless, moisture-proof, corrosion-resistant, lightweight and durable. Some materials also have the characteristics of high strength, high hardness, high toughness and super wear resistance.
Diverse designs: Exquisite appearance, diverse colors, can be customized in different sizes according to user needs, support capping, digital recognition and other functions, multiple boxes can be overlapped to make full use of space.

Classification

Classification by use: including anti-static component bins, conductive component bins, flame retardant component bins, spare parts component bins, IC component bins, ordinary component bins, red defective component bins, etc.
Classification by structural performance: covering stacked component bins, hanging component bins, flip-top component bins, component bins with covers, oblique-mouth component bins, flat-mouth component bins, drawer-type component bins, component bins with digital drawers, etc.

Working principle: ESD sensitive devices are placed in anti-static component bins. During the handling and placement process, friction will be generated when the sensitive devices are in contact with and separated from the component box, generating electric charges. The anti-static component box has the characteristics of static dissipation, which not only generates less charge during contact and separation, but also releases these charges in time to avoid charge accumulation, thus effectively protecting ESD sensitive devices.

Technical Specification

Product name		ESD Bin
Product model		3W-9805106	3W-9805106-2	3W-9805132	3W-9805133
Specification parameters	●External dimensions:	203*124*50mm	230* 160*64mm	395*230*91mm	395*115*91mm
	●Inner size:	193*1 13*42mm	220* 150*55mm	355*2 10*80mm	360*93*80mm
	●Wall:	2mm	2mm	2.5mm	2.5mm
	●Bottom wall:	2.5mm	3mm	3mm	3mm
	●Weight:	0.25kg	0.35kg	0.8kg	0. 46kg
Product description				◆There are slots inside
		◆Stackable
		◆Static index: 10e4-10e8
Temperature resistance customization		口120°C             口150°C
Color customization		□      □       □  □other
Optional accessories		□Anti-static label
		□Anti-static cover
		□Anti-static partition
