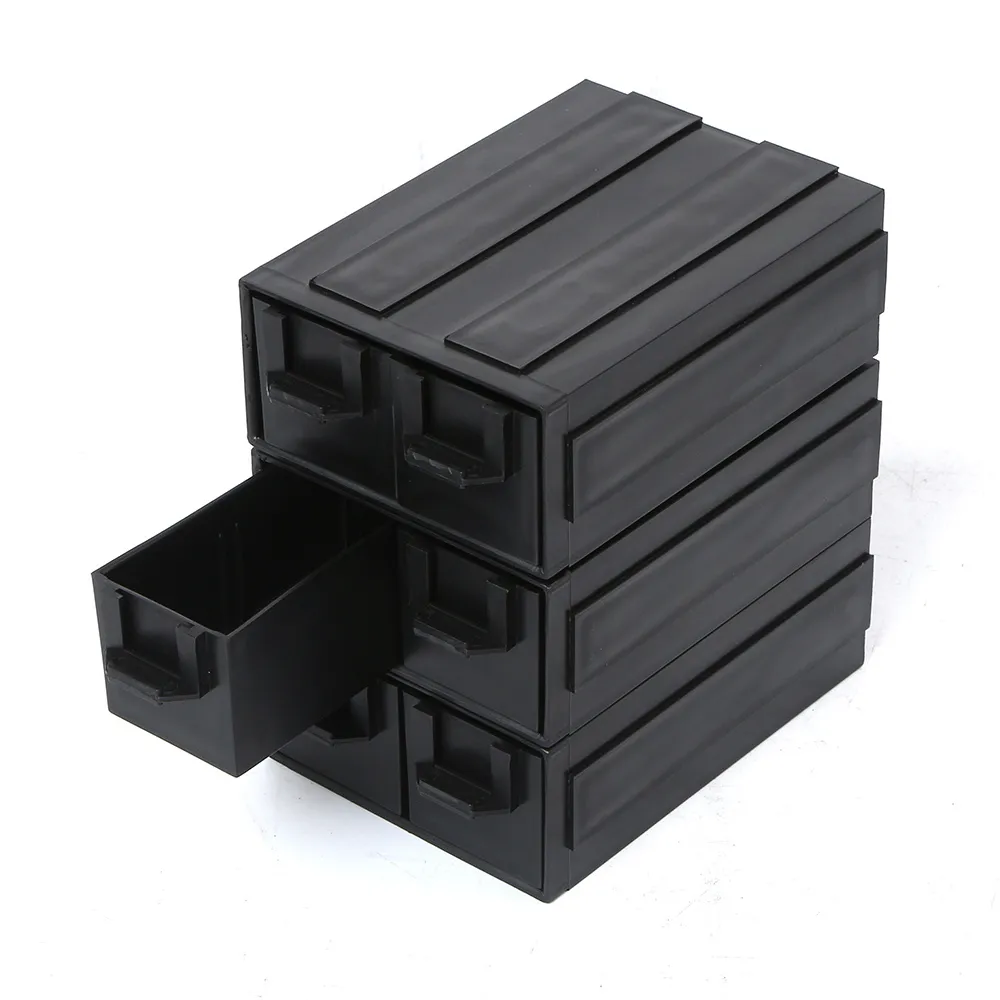

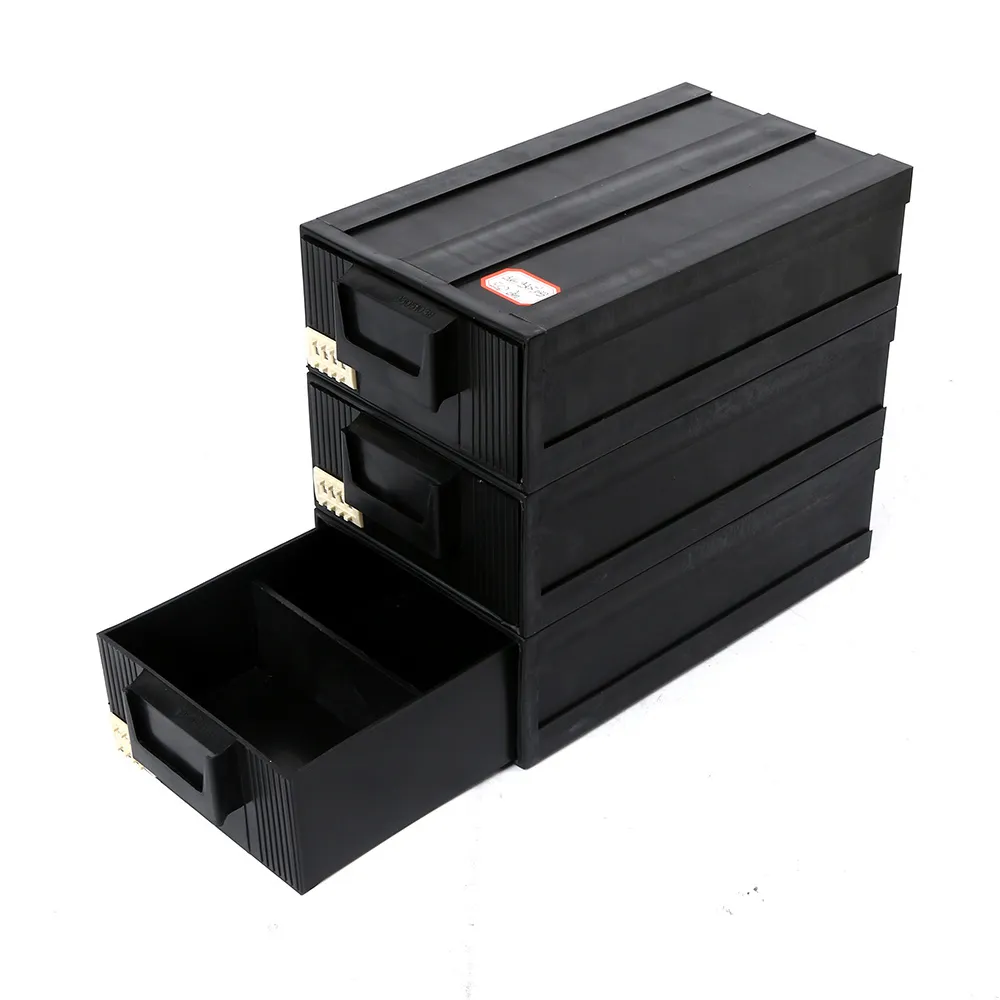

Product Introduction

ESD bin with drawer is a storage container used to store electronic components and other items, which can prevent the generation and accumulation of static electricity, thereby protecting the stored items from static damage.
Excellent anti-static performance: The use of conductive PP (polypropylene) and other anti-static materials for injection molding can effectively release the static charge accumulated on the surface of the object, so that it will not produce charge accumulation and high potential difference, avoiding static electricity damage to components.
Convenient classification and storage: There are usually slots inside, and some can also be equipped with plug-in boards, which makes it easy to classify and store components of different types and specifications, so that items can be placed neatly and orderly, and are easy to access and manage.
Flexible combination: Each component box can be combined with each other through the upper, lower, left and right sub-slots. Multiple component boxes can be combined into a whole according to actual needs to increase storage capacity and stability, while also making effective use of space.
Sturdy and durable: It has the characteristics of moisture-proof, anti-corrosion, heat insulation, wear resistance, etc. It is made of high-strength materials, can withstand a certain amount of pressure and impact, is not easy to be damaged, and can be reused for a long time.
Easy to use: Drawer-style design, equipped with a handle, makes it easy to pull out and push the drawer in. The operation is simple and convenient, which improves work efficiency.

Technical Specification

Product name		ESD Bin
Product model		3W-9805103	3W-9805103-2	3W-9805103B
Specification parameters	●External dimensions:	136*95*48mm	136*95*48mm	240*141*72mm
	●Inner dimension:	136*87*40mm	127 *88*41mm	238*133*63mm
	●Outer dimensions of drawer:	127*88*41mm	136*43*40mm	250*132*61mm
	●Drawer inner size:	122*82*38mm	122*38*37mm	232*125*58mm
	●Side wall:	2mm	2mm	2.5mm
	●Bottom wall:	2.5mm	2.5mm	2.5mm
	●weight:	0. 17kg	0.21kg	0.63kg
Product description		◆Slot inside
		◆Can be stacked, can be connected left and right
		◆Static index: 10e4-10e8Ω
				◆With digital counter
Temperature resistance customization		口120°C              口150°C
Color customization		口       口       口     口other
Optional accessories		口Anti-static label
		口Anti-static partition
