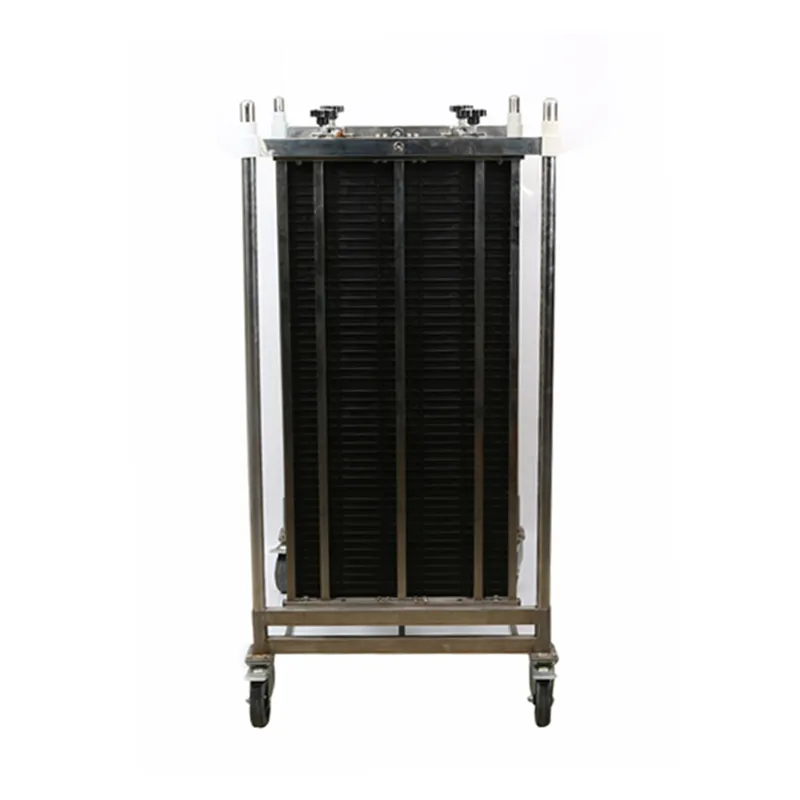

ESD Trolley Large Capacity PCB Storage Cart 3W-9805208-2
Overview:
Technical advantages
ESD trolley, also known as PCB board turnover cart, transfer cart, storage cart, etc., is an industrial equipment specially designed to prevent static electricity accumulation and discharge. It is mainly used in static-sensitive working environments. By using special materials and technologies, it effectively eliminates static electricity and prevents its accumulation, ensuring the safety and stability of the working process. Anti-static turnover carts are made of special anti-static materials, such as anti-static materials with a surface resistance of 10 to the 6th power to 10 to the 9th power, which can quickly conduct away the accumulated static electricity and prevent static electricity from damaging electronic components. The metal grounding chain installed at the bottom of the car can discharge static electricity through the grounding chain even if the wheels are affected by dust and affect static electricity discharge, further ensuring the effective elimination of static electricity.
Equipped with high-quality anti-static plastic wheels or conductive rubber wheels, some of which have brakes, the trolley is flexible and stable, and is convenient for transporting goods between workshops, warehouses and other places. The design of the wheels makes the trolley quiet during movement and does not interfere with the working environment.
The body frame is usually made of high-quality stainless steel or carbon steel, which has excellent compression and wear resistance, can withstand heavy cargo weight, and maintain a long service life in harsh working environments. For example, some turnover vehicles use 304 stainless steel to make frames, which are not only strong and durable, but also have good corrosion resistance.
Technical Specification
| Product name | ESD Trolley | |
| Product model | 9805208-2 | |
| Specification parameters | ●External dimensions: | 1100*715*1400mm |
| ●Side size: | 1028*545*30(single)/40(double) | |
| ●Pallet size: | 525*250mm | |
| ●Side panel structure: | 4-piece plug-in board | |
| ●Adjustable width: | 0-445mm (Max ) | |
| ●Groove depth: | 4mm | |
| ●Groove width: | 7mm | |
| ●Pitch: | 10 | |
| ●Number of slots: | 100 | |
| ●Weight: | 72.8Kg | |
| ●PCB board storage capacity: | 300 pieces | |
| ●weight bearing: | 150kg | |
| Product description | ◆Bearing design, smooth movement | |

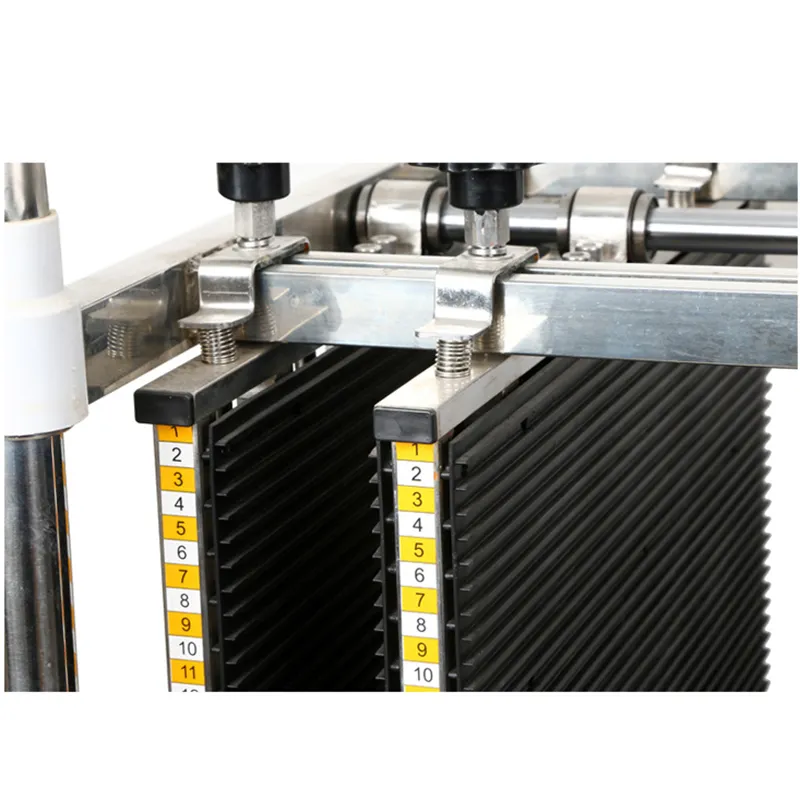

| ◆Double knob locking device | ||
| ◆2 single-sided panels and 1 double-sided panels | ||
| ◆Anti-silent caster material: PU material | ||
| ◆Bottom reinforced crossbar | ||
| ◆Static index: 10e4-10e8Ω | ||
| Temperature resistance options | 口100°C 口120°C 口150°C | |
| Optional accessories | □File box | |
| □Adjustment label | ||
| □Slot code label | ||
| □Anti-static label | ||
| □Anti-collision guardrail | ||
*Temperature resistance refers to the maximum temperature of the PCB board that the turnover cart can withstand
World-Class ESD Manufacturing Capacity
When you source from Sanwei, you are partnering directly with an industry-leading OEM/ODM manufacturer. We operate a state-of-the-art 70,000+ m² integrated production facility in Yueqing Central Industrial Park, Zhejiang, managing every single process from proprietary material formulation to final high-precision product molding.
Integrated Scale
70,000+ m² advanced plant base equipped with heavy-duty precision injection molding machines to handle bulk wholesale orders with stable lead times.
Full-Chain Control
Complete in-house control spanning proprietary anti-static material R&D, structural mold engineering, automated manufacturing, and swift global logistics delivery.
Rigorous Inspection
Strict raw material testing combined with multi-point surface resistivity metering on the production line ensures 100% compliance with international ESD standard guidelines.
Anti-Static Products and Solutions
Delivering comprehensive electrostatic protection across your entire manufacturing and operational lifecycle.
SMT Equipment
Anti-static collection boxes and racks for automated lines.
Storage & Logistics
Turnover carts, shelves, boxes, trays, and component containers.
Workstation & PPE
Anti-static chairs, mats, wrist straps, and personal protection.
Custom Development
Custom mold development and special anti-static materials.
OUR OEM/ODM ADVANTAGES
Advanced R&D & Material Innovation
In-house developed anti-static materials with national invention patents and heat resistance up to 200℃. We do not just mold — we formulate compounds.
Full-Scale Production Capacity
30,000㎡ plant with complete injection molding, granulation and supporting processing systems for stable and efficient supply.
Full-Process Customization
Material resistivity, color, size, logo, packaging and certifications — customizable to meet IEC61340-5-1, ANSI/ESD S20.20 or military standards.
Certified Quality & Global Compliance
“Sanwei successfully developed custom high-temperature resistant clean natural color trays for our semiconductor assembly line, replacing imported products, ensuring excellent ESD safety, and meeting the high cleanliness requirements of the workshop.”
TRUSTED BY GLOBAL FORTUNE 500 INDUSTRY LEADERS
Our proprietary ESD solutions are deployed in elite production facilities worldwide, including: Intel, Motorola, Siemens, IBM, Panasonic, Nokia, and Dell.
Looking for Custom Sizes or Bulk Wholesale Pricing?
Backed by our robust in-house R&D team, Sanwei provides complete OEM/ODM options tailored to your specific SMT production lines or warehouse layout. Contact our specialists today for custom molds, color coding, or integrated 5S storage consulting.
Frequently Asked Questions (FAQ)
1. What is an ESD trolley?
A mobile cart made of static‑dissipative materials, with grounding chains and anti‑static wheels, used to transport sensitive electronics safely.
2. How to make a cart ESD safe?
Replace surfaces with anti‑static material, install a grounding chain, fit conductive wheels, and test resistance regularly.
3. What is an ESD safe material?
A material with surface resistance roughly between 10⁶ and 10⁹ Ω that quickly dissipates static charge without sparking.
4. How often should an ESD trolley be tested?
At least weekly; daily in dusty or high‑usage environments.
5. Can an ordinary cart be converted into an ESD cart?
Yes, by changing all critical components, but the conversion must be verified with proper testing.
6. What are the common applications of ESD trolleys?
Electronics assembly, semiconductor, medical device, and aerospace industries for handling PCBs and static‑sensitive parts.
7. What is the price of a PCB trolley?
Roughly from $50 for basic models to over $1,200 for industrial units; exact cost depends on size, material, and customization.
8. What is an ESD tray?
A conductive or static‑dissipative container (often with slots) used to store and transport PCBs, ICs, and components without ESD damage.
