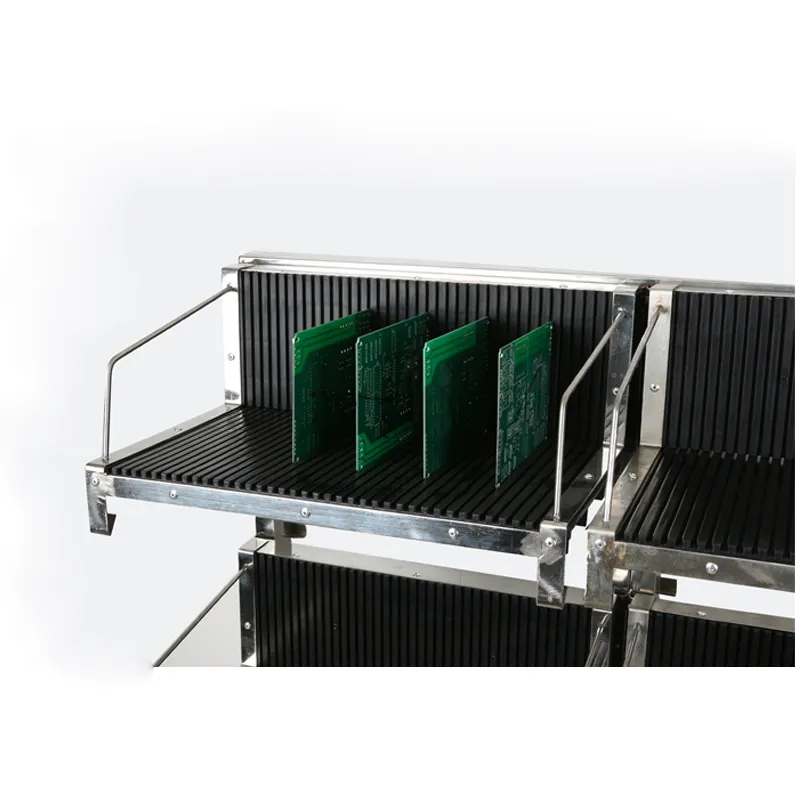

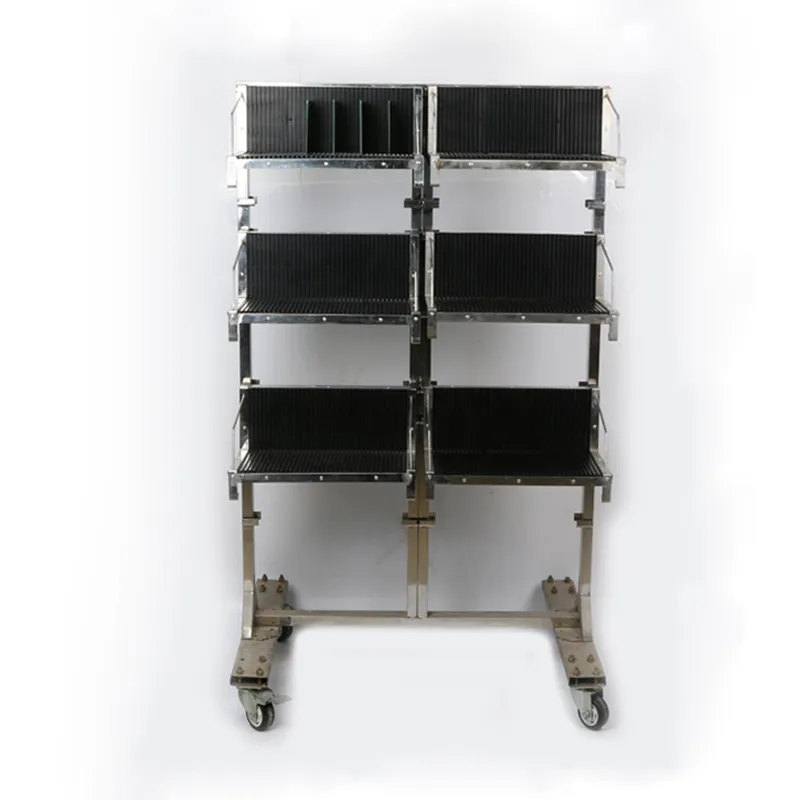

ESD Trolley PCB Storage Turnover Frame 3W-9805206 850×600×1400mm
Overview:
Product Introduction
In static‑sensitive industries such as electronics manufacturing, semiconductor fabrication, and precision instrument assembly, effective anti‑static measures are critical to product quality and production safety. Our anti‑static collection racks – engineered to function as both an ESD Trolley and a dedicated PCB Storage Cart – deliver a high‑performance, reliable storage solution that combines innovative design with superior static control.
Superior static dissipation: A special anti‑static coating and integrated grounding system quickly channel surface charges to earth, maintaining surface resistance within the safe range of 10⁶–10⁹ Ω. This effectively prevents electrostatic damage to sensitive components and minimises dust attraction, ensuring product integrity throughout storage and handling.
Efficient organisation and accessibility: The multi‑tier open‑shelf design allows sorted storage of materials, semi‑finished goods, or finished products of varying sizes for rapid retrieval. Built‑in label holders and dividers simplify identification and zone management, significantly boosting storage efficiency.
Robust and long‑lasting: Constructed from high‑strength steel with a scientific mechanical structure, the rack offers excellent load‑bearing capacity – each shelf supports 150–300 kg (depending on the model). It withstands frequent loading and unloading operations without deformation, delivering a long service life even under heavy‑duty conditions.
Technical Specification
| Product name | ESD Trolley | ||
| Product model | 3W-9805206 | ||
| Specification parameters | ●External dimensions: | 850*600*1400mm | |
| ●Board size: | 415*285*200mm | ||
| ●Side panel structure:: | 3W-9805407 Turnover frame | ||
| ●Groove depth: | 2.8mm | ||
| ●Groove width: | 5mm | ||
| ●Pitch: | 10 | ||
| ●Number of slots: | 38 | ||
| ●Weight: | 47.5Kg | ||
| ●PCB board storage capacity: | 20 pcs 3W-9805407 can be hung | ||
| ●weight bearing: | 100kg | ||
| Product description | ◆Anti-silent caster material: PU material | ||
| ◆Static index: 10e4-10e8Ω | |||
| Temperature resistance options | 口100°C 口120°C 口150°C | ||
| Optional accessories | 口Anti-static label | ||
*Temperature resistance refers to the maximum temperature of the PCB board that the turnover cart can withstand
