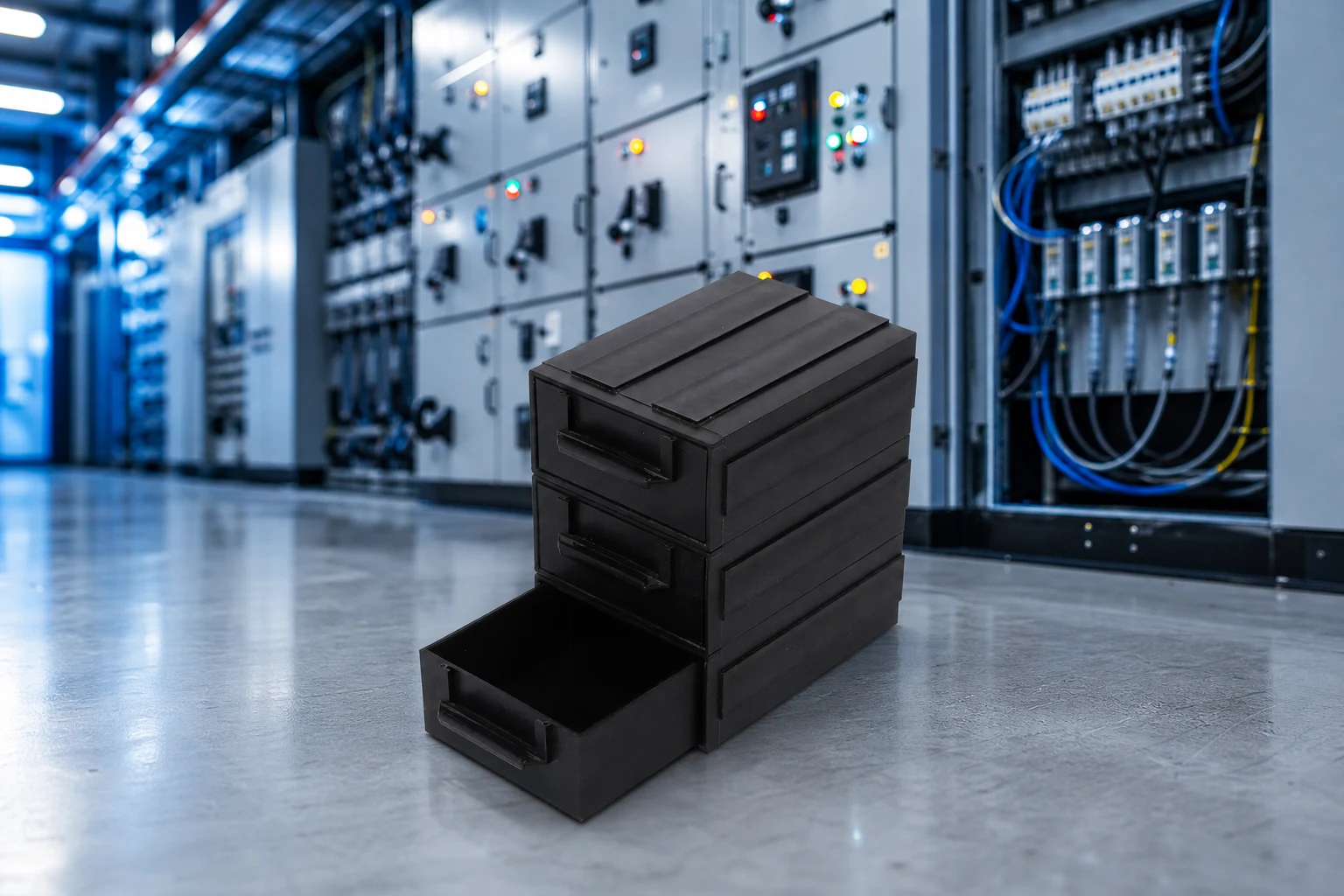

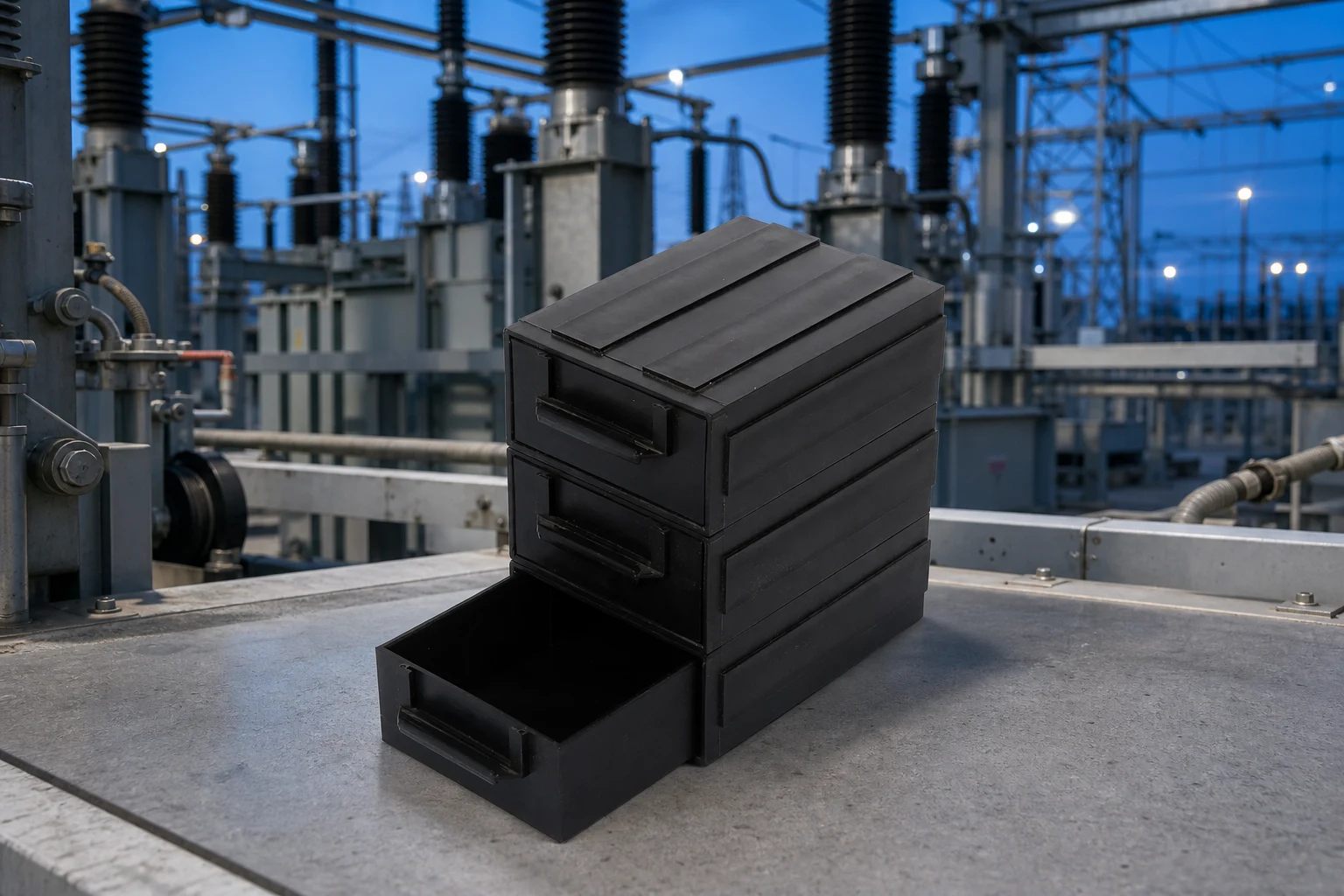

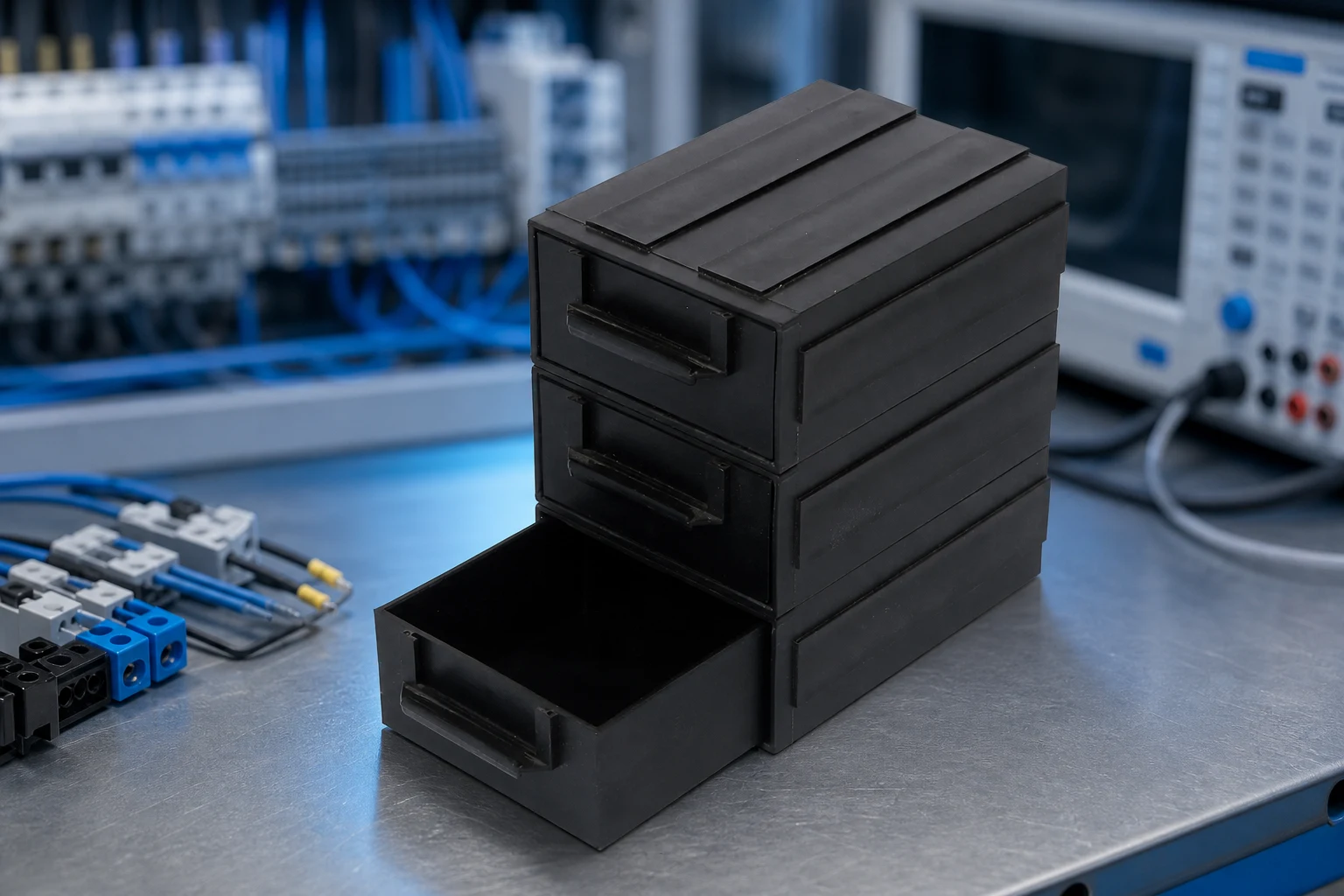

Stackable Drawer ESD Bin: Modular Storage for SMT and EPA Workstations

A stackable drawer ESD bin combines pull-out access with vertical stacking so SMT and EPA workstations can stage classified components without losing floor space. This guide explains when drawer-style modular bins beat open totes, how to verify resistance and grounding, and what procurement teams should specify before quoting. Written for global electronics manufacturing and EPA teams—specify 50 or 60 Hz plant power only where electrical grounding interfaces matter, not for material selection.

Part 1. What is a stackable drawer ESD bin?

Drawer-style ESD bins use conductive or static-dissipative polypropylene bodies with a pull-out tray for fast pick-and-place. Stackable variants add interlocking top and bottom features so multiple units form a stable column beside a line or bench.

Unlike generic plastic parts bins, ESD drawer bins are molded from carbon-filled PP or equivalent materials intended to limit charge accumulation on surfaces that contact components. Buyers still must ground the bin system per ANSI/ESD S20.20 and IEC 61340-5-1.

Modular layouts matter when kitting changes by SKU: one column can hold resistors, another ICs, and a third mechanical inserts—each drawer opens independently while the stack stays interlocked.

Cross-site programs benefit from a single drawing register for storage hardware so MRO orders do not drift across regions.

Facilities running both 50 Hz and 60 Hz equipment should still specify the same ESD material class; grounding audits focus on resistance paths, not mains frequency.

Cross-site programs benefit from a single drawing register for storage hardware so MRO orders do not drift across regions.

Facilities running both 50 Hz and 60 Hz equipment should still specify the same ESD material class; grounding audits focus on resistance paths, not mains frequency.

Field evaluation notes

Document who owns ESD audits versus procurement sign-off—misaligned approvals delay standardization across plants.

Capture photos of existing layouts before RFQ; dimensions inferred from memory often underestimate clearance for drawer pull or rack handles.

Part 2. Where do teams deploy them on SMT and assembly lines?

Line-side staging is the primary use case: operators preload drawers with reels, trays, or bagged SMD parts before a changeover. When the stack sits on a grounded worksurface or cart, charge on bin surfaces has a path to ground.

EPA repair benches benefit from drawer access because technicians open only the compartment under test, reducing accidental contact with unrelated ESD-sensitive devices.

Warehouse kitting areas use stacks as mobile buffers between central stores and the shop floor. If your program uses automated guided vehicles, confirm stack height and weight limits with logistics.

When contractors rotate frequently, label standards and color codes matter more than marginal cost differences between models.

When contractors rotate frequently, label standards and color codes matter more than marginal cost differences between models.

Integration with EPA programs

Map each storage zone to ANSI/ESD S20.20 and IEC 61340-5-1 control items applicable to your program tier.

Training beats hardware alone: operators must know when to ground personnel and when to move assemblies in shielding bags for warehouse transits.

Part 3. Material, resistance, and grounding requirements

Conductive PP bins are widely listed in the 10⁴–10⁶ Ω range; dissipative grades may extend toward 10⁹ Ω depending on filler loading and test method. Your ESD coordinator should map supplier data to the control items in your EPA audit.

Grounding is not automatic: bins must sit on grounded mats, racks, or carts, or use approved grounding cords when the program requires. A conductive bin on an insulative shelf can still isolate charge.

Cleanliness affects readings—flux mist and oils can coat surfaces. Plan wipe-down intervals compatible with production chemicals.

Export shipments should list carton L×W×H and gross weight per stack so freight forwarders avoid repacking that breaks interlocks.

Facilities running both 50 Hz and 60 Hz equipment should still specify the same ESD material class; grounding audits focus on resistance paths, not mains frequency.

Export shipments should list carton L×W×H and gross weight per stack so freight forwarders avoid repacking that breaks interlocks.

Facilities running both 50 Hz and 60 Hz equipment should still specify the same ESD material class; grounding audits focus on resistance paths, not mains frequency.

Field evaluation notes

Document who owns ESD audits versus procurement sign-off—misaligned approvals delay standardization across plants.

Capture photos of existing layouts before RFQ; dimensions inferred from memory often underestimate clearance for drawer pull or rack handles.

Measurement and record keeping

Log resistance checks after cleaning cycles; flux and oils can shift readings over weeks of production.

Store supplier certificates with lot numbers so audits trace back to the mold run—not a generic material family.

Part 4. Stacking, interlocking, and modular expansion

Interlocking feet and slots reduce tip risk when stacks exceed three units. Ask for maximum stack load from the supplier—marketing photos may show taller columns than your safety policy allows.

Horizontal linking (side-by-side arrays) appears on some drawer bin families. That pattern mirrors magazine-rack thinking but for components rather than PCBs.

When expanding a layout, standardize on one model series so spares, dividers, and replacement drawers remain interchangeable.

Digital work instructions with photos of correct grounding beat verbal handoffs during overtime shifts.

Digital work instructions with photos of correct grounding beat verbal handoffs during overtime shifts.

Integration with EPA programs

Map each storage zone to ANSI/ESD S20.20 and IEC 61340-5-1 control items applicable to your program tier.

Training beats hardware alone: operators must know when to ground personnel and when to move assemblies in shielding bags for warehouse transits.

Part 5. How to size drawer bins for your components

Measure the largest part envelope plus pick clearance. Drawer inner height must accommodate tweezers or vacuum pens without scraping conductive walls.

For reel kits, confirm outer diameter and hub width. A drawer that fits 7-inch reels may waste space for 13-inch variants—mixed lines sometimes use two drawer heights in one stack.

Weight matters: conductive PP is heavier than commodity polypropylene. Specify total loaded weight per stack for ergonomic review.

If your MES tracks lot numbers, align label placement on drawers or rack faces so scans do not block ESD contacts.

Facilities running both 50 Hz and 60 Hz equipment should still specify the same ESD material class; grounding audits focus on resistance paths, not mains frequency.

If your MES tracks lot numbers, align label placement on drawers or rack faces so scans do not block ESD contacts.

Facilities running both 50 Hz and 60 Hz equipment should still specify the same ESD material class; grounding audits focus on resistance paths, not mains frequency.

Field evaluation notes

Document who owns ESD audits versus procurement sign-off—misaligned approvals delay standardization across plants.

Capture photos of existing layouts before RFQ; dimensions inferred from memory often underestimate clearance for drawer pull or rack handles.

Part 6. Procurement checklist for export buyers

Include model numbers, annual quantity bands, destination country, and required markings (RoHS, lot labels). Export packs from established ESD bin manufacturers typically include carton dimensions for freight modeling.

Ask whether anti-static labels, partitions, or counter accessories are available for the same drawer family—mixing accessories across unrelated molds often fails.

Confirm lead time separately for first article samples and repeat production batches.

Seasonal humidity swings can change resistance readings—schedule checks before customer audits, not only after failures.

Seasonal humidity swings can change resistance readings—schedule checks before customer audits, not only after failures.

Integration with EPA programs

Map each storage zone to ANSI/ESD S20.20 and IEC 61340-5-1 control items applicable to your program tier.

Training beats hardware alone: operators must know when to ground personnel and when to move assemblies in shielding bags for warehouse transits.

Part 7. Common mistakes to avoid

Buying commodity black bins when the program requires documented conductive PP is the most frequent failure mode—audit teams will flag unknown materials.

Stacking too high without interlocks has caused tip events in busy aisles. Enforce stack height in work instructions, not only in catalog photos.

Mixing drawer bins for components and open totes for finished goods without clear labeling increases ESD mishandling risk during rush builds.

Spare parts strategy should cover latches, dividers, and replacement feet before the first peak season after go-live.

Facilities running both 50 Hz and 60 Hz equipment should still specify the same ESD material class; grounding audits focus on resistance paths, not mains frequency.

Spare parts strategy should cover latches, dividers, and replacement feet before the first peak season after go-live.

Facilities running both 50 Hz and 60 Hz equipment should still specify the same ESD material class; grounding audits focus on resistance paths, not mains frequency.

Field evaluation notes

Document who owns ESD audits versus procurement sign-off—misaligned approvals delay standardization across plants.

Capture photos of existing layouts before RFQ; dimensions inferred from memory often underestimate clearance for drawer pull or rack handles.

Part 8. Matching stackable drawer ESD bins to your line layout

When drawer stacks sit beside SMT loaders or EPA benches, buyers usually shortlist one conductive PP family and standardize dividers, labels, and grounding hardware across shifts.

Start from inner drawer dimensions and stack load rating, then confirm resistance logs at your facility RH band—50 or 60 Hz plant power is irrelevant to bin selection, but humidity and chemical exposure are not.

Compare total cost of ownership: accessory compatibility, spare MOQ, and cleaning labor often exceed unit price deltas.

Request carton photos and pallet patterns for inbound logistics—unexpected overhangs drive repallet charges at port.

Compare total cost of ownership: accessory compatibility, spare MOQ, and cleaning labor often exceed unit price deltas.

Request carton photos and pallet patterns for inbound logistics—unexpected overhangs drive repallet charges at port.

When to compare drawer bins versus open totes

Drawer bins win when operators need classified access without exposing neighboring lots. Open totes remain better for bulk fasteners or mechanical parts that are not ESD-sensitive.

Mixed lines often keep drawer stacks for ICs and hopper bins for hardware—color and label discipline prevents night-shift mis-picks.

Documentation to attach to your RFQ

Include bench photos, maximum stack height, part envelope drawings, and your EPA test interval. Export desks can then quote compatible drawer heights and spare drawer MOQ without rework.

• ESD Bin
• Contact Us

Share your layout sketch, part types, and annual quantity bands with Sanwei export engineering via Contact Us for model matching, resistance documentation, and carton dimensions.

FAQ

What surface resistance should ESD storage bins meet?

Most buyers specify dissipative or conductive ranges commonly cited as 10⁴–10⁹ Ω, aligned with IEC 61340-5-1 and ANSI/ESD S20.20 program requirements. Confirm the supplier test method and whether resistance is measured on inner and outer surfaces.

Can stackable ESD bins replace magazine racks?

They solve different problems. Drawer and stackable bins organize components, reels, and kits at the bench. Magazine racks buffer PCBs between SMT machines. Many lines use both in sequence.

How should buyers document ESD storage in an RFQ?

Include part types, temperature exposure, stacking height, grounding method, color or labeling needs, and target quantities. Photos of the workstation layout reduce sizing errors.

Are heat-resistant ESD boxes suitable for reflow ovens?

Standard conductive PP boxes are for handling and staging, not inside reflow or wave solder processes. Specify peak temperature and dwell time so the supplier can quote the correct grade.

What is the minimum order quantity for custom colors?

MOQ varies by mold and pigment load. For export programs, buyers often standardize on black conductive PP first, then add color variants after pilot runs.

How often should ESD storage be cleaned in production?

Wipe down bins when flux residue, oils, or particulates accumulate—dirty surfaces can raise resistance readings. Follow your EPA audit checklist and the supplier care instructions.

Should ESD racks be conductive or dissipative?

PCB magazine racks typically use conductive or static-dissipative materials with metal frames. Verify slot pitch, PCB width range, and whether the unit must enter a burn-in or aging room.

Where can I request samples before a bulk order?

Request samples through the supplier export desk with model numbers, quantities, and destination country so logistics and compliance documents can be quoted together.
