Guide to ESD Surface Resistance Tester

There has been a increasing need for electronics in our society, thus controlling electrostatic discharge (ESD) has become essential in most industries today. A very important instrument used to measure ESD is an ESD Surface Resistance Tester. This resource will provide a complete description of surface resistance, its standards and the various ways of using an ESD surface resistance tester properly.

What is Surface Resistance?

Surface resistance defines the resistance that is measured between 2 points located on a surface. Under ESD applications, it is extremely important to understand the surface resistance of materials due to the potential for accumulation of an electrostatic charge if the surface is high in resistance, which could be damaging to electronic components. By obtaining knowledge about the surface resistance of materials used in electronics manufacturing facilities, ESD risk can be greatly reduced.

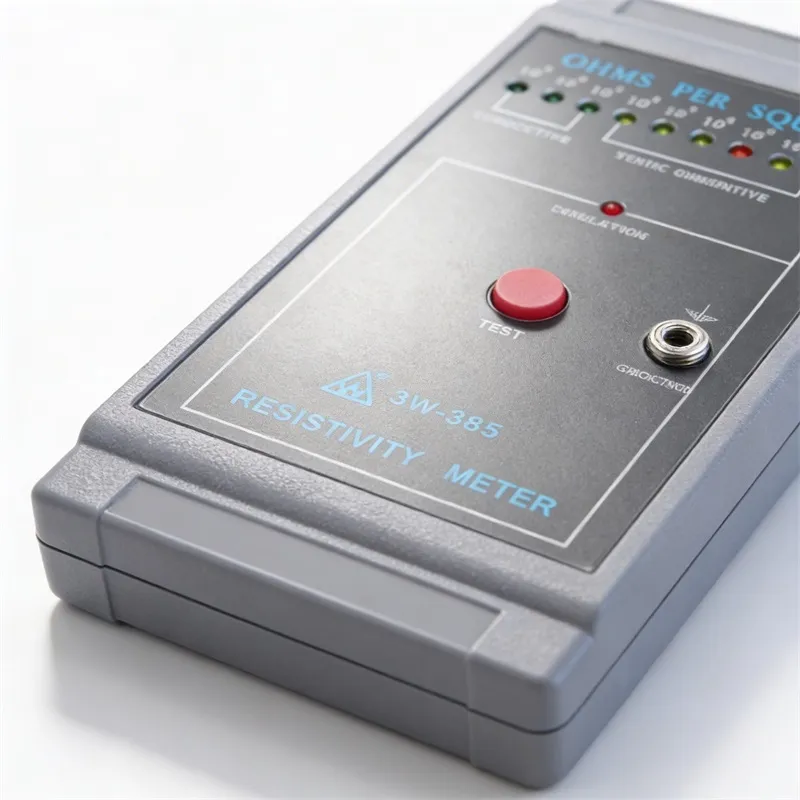

What is the Standard for Surface Resistance?

The Electrostatic Discharge Association and the American National Standards Institute provide precise guidelines regarding appropriate levels of surface resistance. Surfaces are generally classified by their resistance level, such that:

Conductive: less than 10^5 ohms

Static Dissipative: 10^5 to 10^11 ohms

Insulative: greater than 10^11 ohms

By knowing these classifications, companies will be able to select appropriate materials for floors, work surfaces, and any other important aspects of their operations.

How to Use an ESD Surface Resistance Tester

Using an Electrostatic Discharge (ESD) Surface Resistance Tester is simple when using the correct techniques. Below is a step by step process.

Surface Preparation: Make sure that the object to be measured is free from dirt, grease and moisture.

Calibrate the tester regularly, per the operating manual or calibration instructions, to ensure it remains accurate.

Appropriate Technique to Conduct the Test: Ensure you are using adequate probe placement with uniform force when applying the tester pins. After placement is completed, allow the equipment to reach equilibrium for a short period of time prior to making any measurements with the tester unit.

Results Analysis: Check the ESD resistance readings against industry standards to establish whether the surface can be used in an ESD sensitive areas.

Why Is Regular Surface Resistance Testing Important?

Regularly run surface resistivity testing is critical to establishing ESD safe areas. Over time, dirty surfaces/uses, wear and tear will reduce a surface’s resistive properties. Periodic testing will identify any changes in surface resistance and allow you to confirm that your surfaces continue to meet ESD standards. Protecting ESD sensitive equipment, improving ESD product reliability and ensuring workplace safety.

Best Practices for Conducting Surface Resistance Tests

To achieve the best performance from your surface resistance tester, adhere to the following guidelines:

– Only perform tests on clean, dry surfaces.

– Verify calibration of the tester regularly before use.

– Use ESD wrist straps and proper footwear if operating in highly sensitive environments.

– Follow the manufacturer’s guidelines for probe placement and test duration.

– Maintain records of testing results to monitor trends and identify potential issues.

Top ESD Testing Equipment for Effective ESD Control

Other necessary instruments that are crucial to achieving successful ESD control, in conjunction with a surface resistance tester are the following:

WISPL- Wrist strap testers are used to test the effectiveness of wristbands when used as a means of grounding operators.

– Field Meters: Measure electrostatic fields present in the work environment.

– Ionization Testers: Ensure the effectiveness of ionizers in neutralizing static charge.

Resistance meters are instruments used for taking detailed measurements from a variety of materials or surfaces.

– ESD Simulators: Test how materials and devices respond to simulated ESD events.

What Are the Limitations of an ESD Surface Resistance Tester?

While an ESD surface resistance tester is an invaluable tool, it does have some limitations:

It may not account for environmental factors like temperature or humidity.

Proper use of the device is critical to its function; incorrect placement of the probe or insufficient force could result in inaccuracies.

Other ESD Related Characteristics Cannot Be Measured (E.g., Capacitance, Electric Field Strength); May Provide Additional Valuable Information For Application.

FAQs

How often should surface resistance tests be conducted?

It is recommended that surface resistance testing occur every quarter and also prior to introducing new materials into an ESD sensitive environment. Areas with a high volume of foot traffic or areas with strict ESD controls may require more frequent testing.

Can surface resistance be affected by environmental conditions?

The properties of humidity, temperature, and contamination such as dust or oil can all alter how well surfaces react to a physical environment. Higher humidity will usually create lower resistance, while dry conditions will yield increased resistance on the surface.

Is it possible to test floor surfaces with a handheld ESD surface resistance tester?

Indeed, there are some surface resistivity testers available for flooring applications. Make sure that your tester is equipped with the required accessories (e.g., insulated electrodes) needed to efficiently measure the resistivity of larger areas.

Are there specific materials that offer better ESD resistance?

ESD (Electrostatic Discharge) mats, ESD floors, ESD coatings etc., all use conductive or static-dissipative (or both) materials that help in preventing static electricity.
Whenever you’re looking at choosing materials, they need to conform to industry specific ESD standards.

What should I do if a surface fails an ESD resistance test?

Make sure you clean with surfaces that have an approved cleaning material, making sure all debris, grease (free from any contaminants), are removed. You can also retest the surface. If the surface still fails, you may need to replace the substrate with an ESD-compliant substrate.

Can I use a surface resistance tester for both flat and curved surfaces?

Most ESD test instruments designed for measuring surface resistance can accommodate both flat and slightly curved surfaces however, you must always validate compatibility by reviewing both the probes used as well as the user manual for proper probe usage before attempting any tests.

Are there specific industries where surface resistance testing is mandatory?

These industries depend on strict ESD control measures including periodic testing for surface resistance, thus demonstrating the importance of following these requirements.

How can I ensure my surface resistance tester stays in good condition?

Keep your tester inside the storage protective casing when not in use and avoid exposing it—when in-use or via unintentional exposure—to sustained periods of extreme temperatures/moisture and/or strong electromagnetic fields. The manufacturer recommends scheduling regular calibration/maintenance checks based on manufacturer’s support specifications.

The use of an ESD surface resistance testing device will help ensure that electronic devices are kept safe by providing an accurate measure for determining whether a device’s surface resistance is within acceptable limits. Understanding the concept of surface resistance, following established standards and regularly testing ESD surfaces will help businesses reduce the risk of ESD to their electronics and will ensure compliance with applicable industry standards during testing.
