Wrist Strap Online Monitor SMT Cleanroom Anti Static Wrist Checker
نظرة عامة
If you rely on wrist straps for ESD protection, you’ve probably wondered: how do I know it’s working right now, this very second? Periodic testing only tells you it was working at the time of the test—but what about the rest of the shift? That’s the gap a سوار معصم للمراقبة عبر الإنترنت fills. It connects to your existing strap and continuously checks the ground path, instantly alerting you if the connection breaks, the cord fails, or skin contact becomes poor. Many operators appreciate that a سوار معصم للمراقبة عبر الإنترنت removes the need for hourly self‑checks, freeing them to focus on the job.
For a more technical perspective, a Wrist Strap Continuous Monitor does exactly the same thing—the two names are often used interchangeably—but the idea is consistent: real‑time, uninterrupted supervision of the operator’s grounding integrity. With both audible and visual alarms, a Wrist Strap Continuous Monitor ensures that any fault is caught the moment it occurs, not during the next audit. Whether you call it an online monitor or a continuous monitor, the benefit is clear: it removes human error from the testing routine and gives you confidence that every minute of production is truly ESD‑safe.
المواصفات الفنية

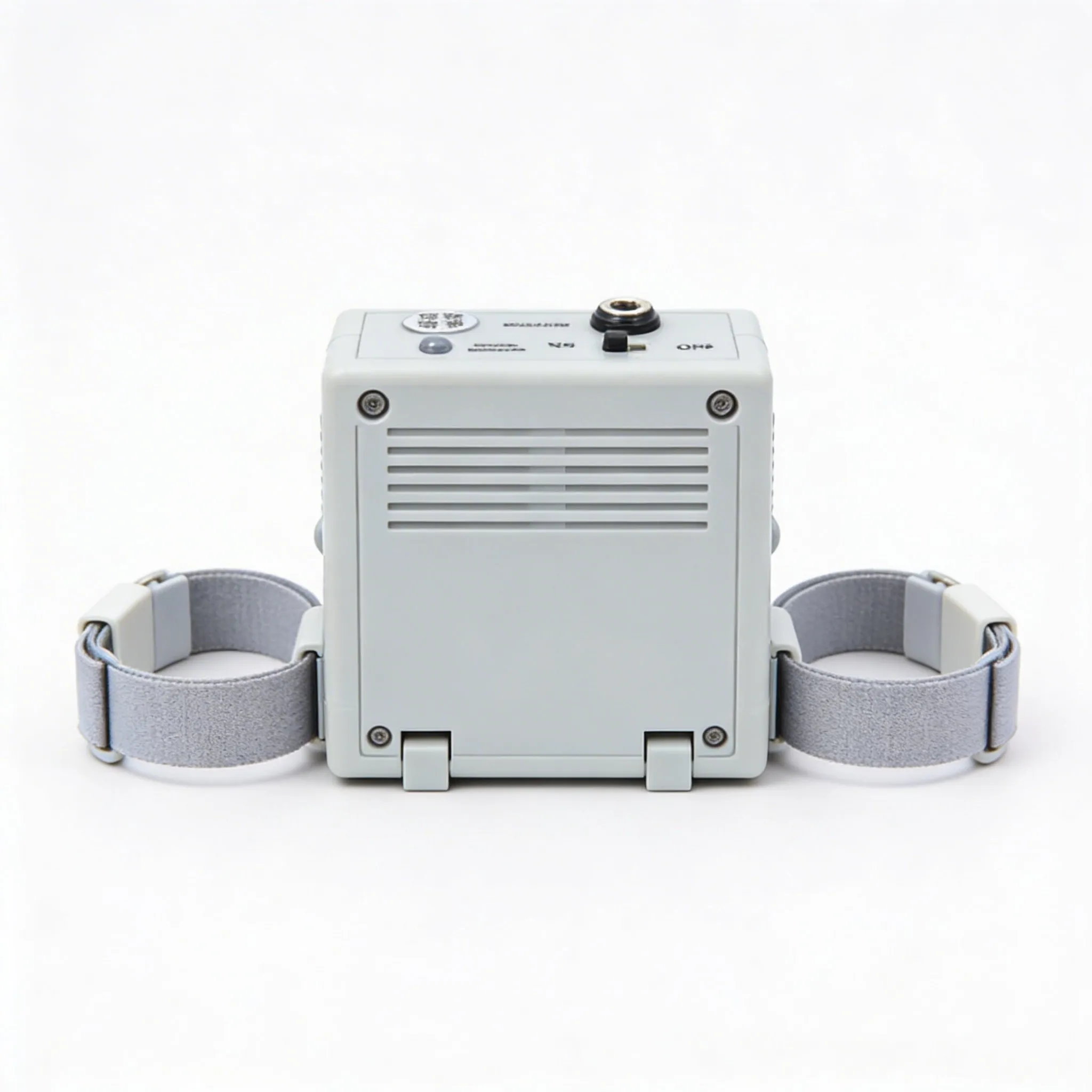

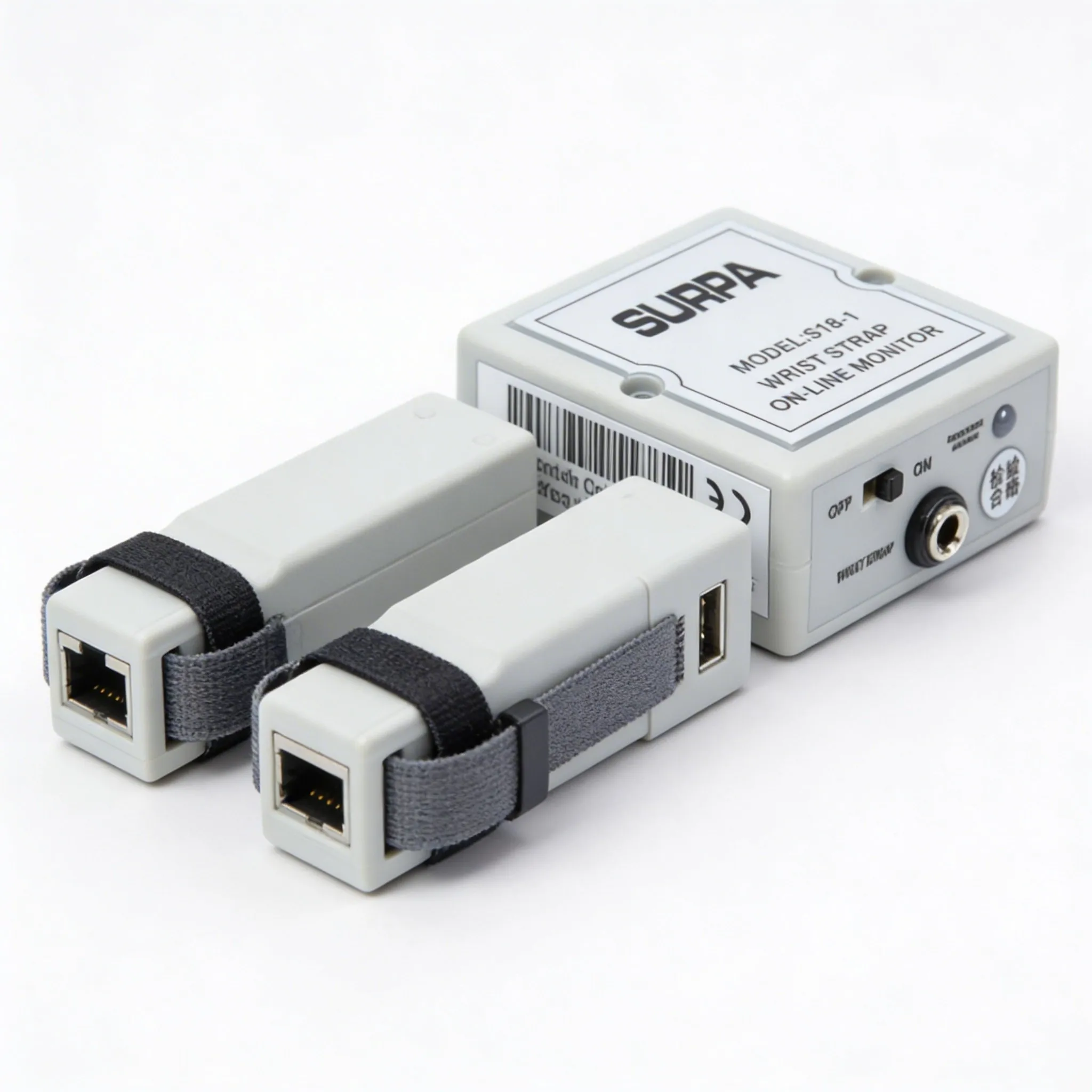

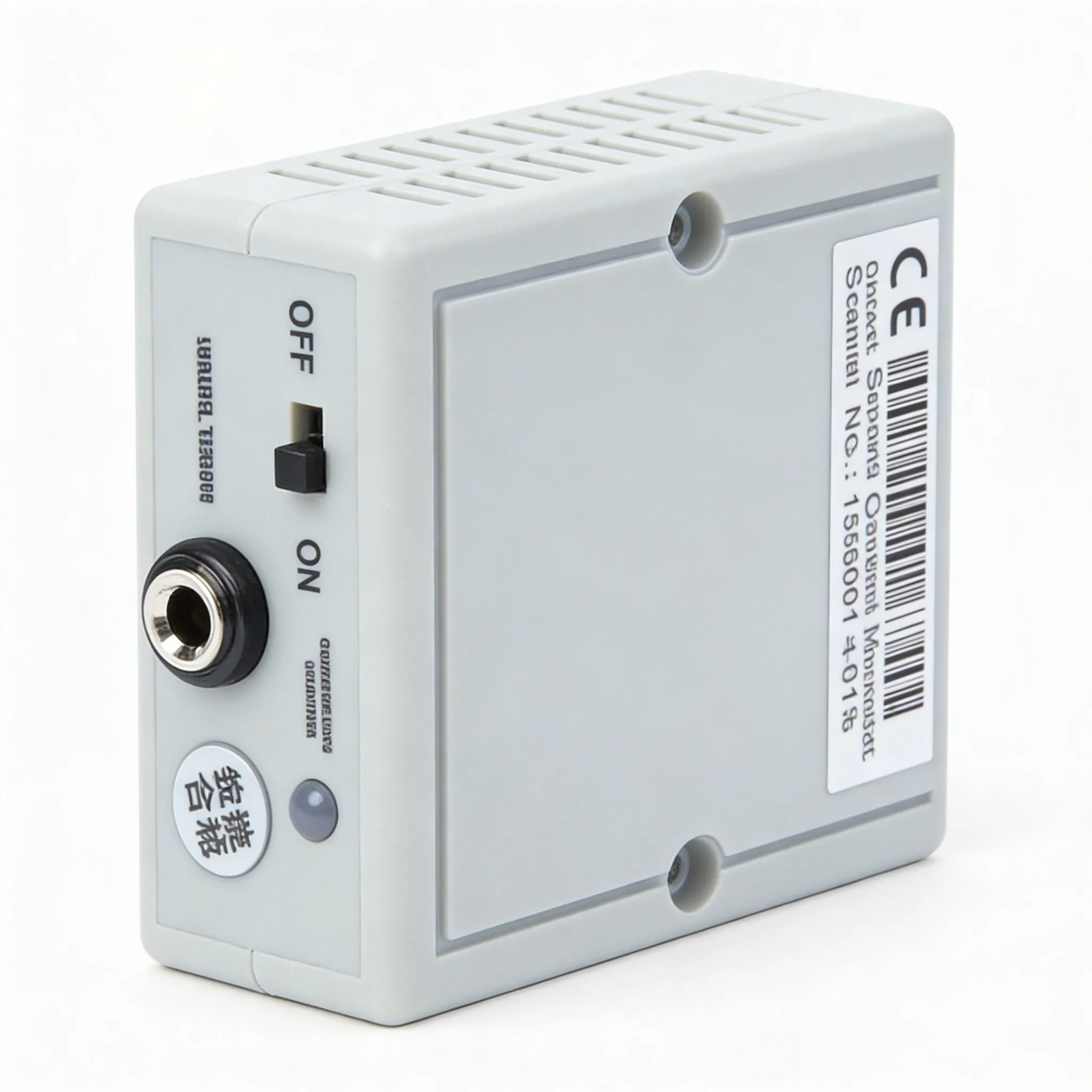

| نموذج | 3W-7851 وضع خدمة واحد | 3W-7852 وضع الخدمة المزدوج |
| دالة | 1.4 ميجا أوم ±5% | 1.4 ميجا أوم ±5% |
| مزود الطاقة | تيار متردد 6 فولت، 0.3 أمبير | تيار متردد 6 فولت، 0.3 أمبير |
| استهلاك الطاقة | 1.8 واط | 1.8 واط |
| الحجم (الطول × العرض × الارتفاع) | 63×60×28 ملم | ١١٠×٦٠×٢٨ ملم |
| وزن | ٢٥٠جم | 310 جم |
ملاحظة: باستثناء حزام المعصم
World-Class ESD Manufacturing Capacity
When you source from Sanwei, you are partnering directly with an industry-leading OEM/ODM manufacturer. We operate a state-of-the-art 70,000+ m² integrated production facility in Yueqing Central Industrial Park, Zhejiang, managing every single process from proprietary material formulation to final high-precision product molding.
Integrated Scale
70,000+ m² advanced plant base equipped with heavy-duty precision injection molding machines to handle bulk wholesale orders with stable lead times.
Full-Chain Control
Complete in-house control spanning proprietary anti-static material R&D, structural mold engineering, automated manufacturing, and swift global logistics delivery.
Rigorous Inspection
Strict raw material testing combined with multi-point surface resistivity metering on the production line ensures 100% compliance with international ESD standard guidelines.
مضاد للكهرباء الساكنة المنتجات والحلول
Delivering comprehensive electrostatic protection across your entire manufacturing and operational lifecycle.
معدات SMT
صناديق ورفوف مانعة للشحنات الساكنة للخطوط المؤتمتة.
التخزين والخدمات اللوجستية
عربات دوارة، أرفف، صناديق، صواني، وحاويات مكونات.
محطة العمل ومعدات الوقاية الشخصية
كراسي مقاومة للكهرباء الساكنة، وحصائر، وأربطة معصم، وحماية شخصية.
تطوير مخصص
تطوير قوالب مخصصة ومواد خاصة مضادة للكهرباء الساكنة.
مزايا OEM/ODM لدينا
البحث والتطوير المتقدم وابتكار المواد
In-house developed anti-static materials with national invention patents and heat resistance up to 200℃. We do not just mold — we formulate compounds.
الإنتاج بسعة كاملة
30,000㎡ plant with complete injection molding, granulation and supporting processing systems for stable and efficient supply.
تخصيص العملية الكاملة
Material resistivity, color, size, logo, packaging and certifications — customizable to meet IEC61340-5-1, ANSI/ESD S20.20 or military standards.
الجودة المعتمدة والامتثال العالمي
“Sanwei successfully developed custom high-temperature resistant clean natural color trays for our semiconductor assembly line, replacing imported products, ensuring excellent ESD safety, and meeting the high cleanliness requirements of the workshop.”
TRUSTED BY GLOBAL FORTUNE 500 INDUSTRY LEADERS
Our proprietary ESD solutions are deployed in elite production facilities worldwide, including: Intel, Motorola, Siemens, IBM, Panasonic, Nokia, and Dell.
Looking for Custom Sizes or Bulk Wholesale Pricing?
Backed by our robust in-house R&D team, Sanwei provides complete OEM/ODM options tailored to your specific SMT production lines or warehouse layout. Contact our specialists today for custom molds, color coding, or integrated 5S storage consulting.
Frequently Asked Questions (FAQ)
1. What is a wrist strap continuous monitor?
A wrist strap continuous monitor is a device that constantly checks the grounding integrity of an operator’s ESD wrist strap throughout the entire work shift. Unlike periodic testers that only check at the start of a shift, a continuous monitor provides real‑time, uninterrupted verification that the wrist strap and ground path remain intact. If any part of the loop fails—whether due to a broken cord, poor skin contact, or a loose connection—the monitor triggers an audible and visual alarm instantly.
2. What is the difference between a continuous monitor and a periodic wrist strap tester?
A periodic tester (often called a “touch tester”) checks wrist strap resistance at a single point in time—typically at the beginning of a shift. A continuous monitor, on the other hand, verifies the wrist strap and ground path in real time throughout the entire work shift. The key difference is that periodic testing can only tell you the strap was working at the moment of the test; a continuous monitor catches failures the instant they occur, eliminating the gap where a component could be exposed to ESD. ANSI/ESD S20.20 allows either approach, but continuous monitoring provides a higher level of protection for sensitive devices.
3. How does a wrist strap continuous monitor work?
A continuous monitor works by sending a low‑voltage signal through the wrist strap and the operator’s body to ground. It continuously observes the resistance (or impedance) of the loop, which consists of the monitor, the cord, the wristband, and the person. If any part of this loop opens—becoming disconnected or exceeding the acceptable resistance limit—the circuit detects the change and triggers an alarm. Different monitors use different technologies: capacitance‑based, impedance‑based (wave distortion), or resistance‑based (dual‑wire) systems.
4. What causes a wrist strap continuous monitor to alarm?
A continuous monitor typically alarms due to a faulty wrist strap cord, poor contact between the wristband and the operator’s skin, a loose worksurface mat connection, or a grounding/electrical wiring problem. Other causes can include dry skin, wearing the band incorrectly, or a failing solder connection in the cord. In some cases, an electrostatic field present in the environment can also trigger the alarm. The alarm is designed to alert the operator immediately so the issue can be corrected before any ESD‑sensitive components are exposed to risk.
5. Is a wrist strap continuous monitor compliant with ANSI/ESD S20.20?
Yes. Continuous monitors meet the continuous monitoring requirements of ANSI/ESD S20.20. Per ESD‑S1.1 Annex A.3, “Daily (wrist strap system) testing may be omitted if constant monitoring is used”. Additionally, continuous monitors satisfy the ISO and ANSI/ESD S20.20 test logging requirements by their very function—they eliminate the need for users to manually test wrist straps and log the results. This makes them a cost‑effective way to maintain compliance while providing superior protection.
6. What is the ParkSnap feature on a continuous monitor?
ParkSnap is a convenient feature that allows the operator to disconnect and “park” their wrist strap when leaving the workstation without triggering a false alarm. The operator touches the ParkSnap or park delay switch, and the monitor’s audible alarm disables for approximately 8 seconds—giving the operator enough time to remove the wrist strap and attach it to the ParkSnap connector. This places the monitor into standby mode while the operator is away, and the alarm automatically re‑activates when the wrist strap is reconnected. It eliminates the nuisance of false alarms during breaks or when operators need to temporarily leave their workstations.
