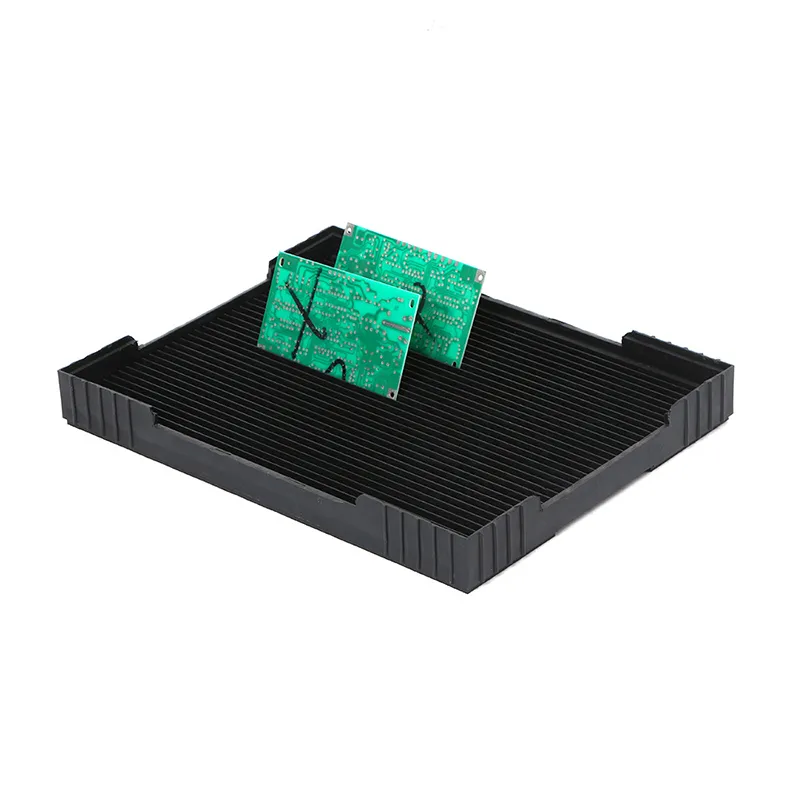

ESD Rack 407/408/409
Overview:
Anti-static racks are indispensable equipment in modern industry and scientific research. With their excellent anti-static performance and multifunctional design, they have become an ideal choice for storage solutions in various industries. Choose anti-static racks to protect your products, improve work efficiency, and ensure safe production.
Product Introduction
Anti-static racks are storage devices specially designed to prevent static electricity accumulation and discharge. They are widely used in electronics, semiconductors, medical and other static-sensitive industries. They not only effectively protect stored items from static electricity damage, but also improve the safety and efficiency of the working environment. Anti-static racks are also called tray racks, anti-static tray racks or anti-static turnover racks.
Application Scenario
Electronics manufacturing: temporary storage of SMT components such as chips, LEDs, capacitors and resistors
Laboratory: dust-proof and anti-static storage of precision instruments, optical lenses, and medical consumables
Warehousing and logistics: Static-sensitive products are divided into different areas for circulation, improving the 6S management level of the workshop.
Technical Specification
| Product name | ESD Rack | ||||
| Product model | 3W-9805407 | 3W-9805408 | 3W-9805409 (4 slots) | 3W-9805409 (9 slots) | |
 |
 |
 |
 |
||
| Specification parameters | ●External dimensions: | 415*285*200mm | 320*248*37mm . | 100*15*1 4mm | 100*15*1 4mm |
| ●Groove depth: | 5mm | 8.5mm | 10mm | 10mm | |
| ●Groove width: | 2.6mm | 5.5mm | 2mm | 1.5mm | |
| ●Pitch: | 10mm | 6.5mm | 18mm | 10mm | |
| ●Number of slots: | 38 | 35 | 4 | 9 | |
| ●Weight: | 1.74kg | 0.62kg | 0.006kg | 0.008kg | |
| Product description | ◆Static index: 10e4-10e8Ω | ||||
| Temperature resistance customization | 口 120°C 口 150°C | ||||
| Color customization | 口 口  口  口other |
||||
| Optional accessories | 口 Anti-static label | ||||
