Product Introduction

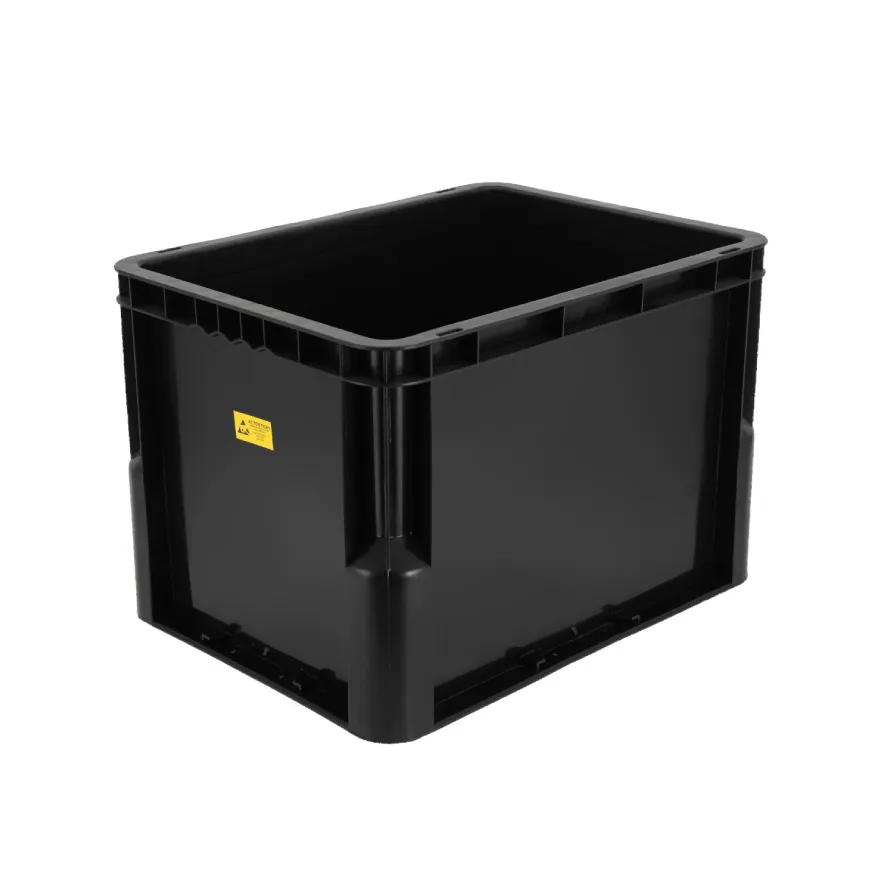

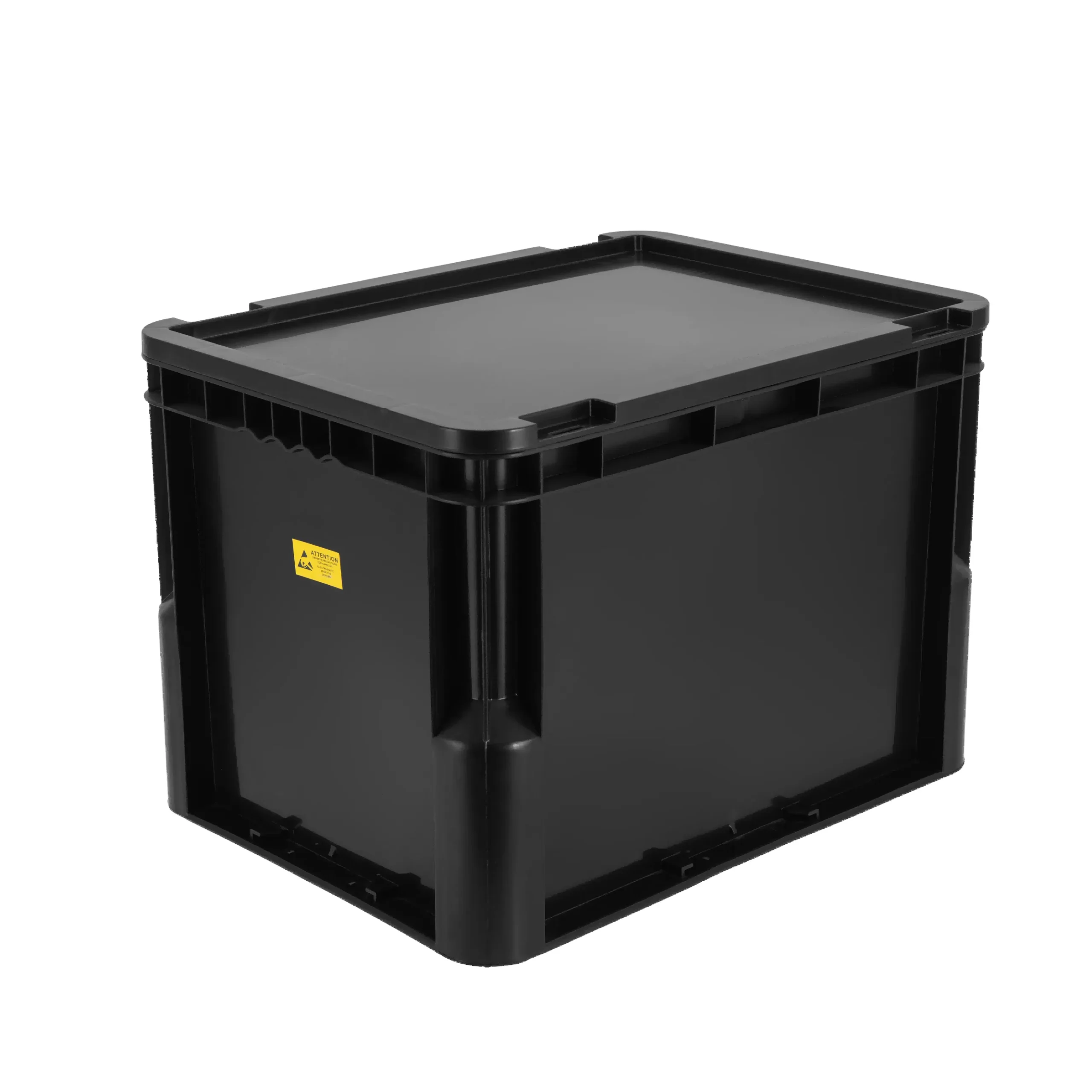

Our anti-static turnover boxes adopt advanced composite material manufacturing technology, with polypropylene (PP) as the base material, and incorporate special conductive media such as high-purity and high-performance carbon powder. This unique material formula makes the turnover box have excellent conductivity, and the surface and volume resistivity are stably controlled below 10 to the 9th power ohms/square centimeter. It can quickly and effectively release the static charge accumulated on the surface of the object, eliminate the accumulation of charge and the generation of high potential difference from the root, and create a safe environment with almost zero static electricity for the electronic components and products inside. Whether in the frequent turnover process of the production workshop or in the long-term static state of storage in the warehouse, it can ensure that your precision electronic products are protected from static electricity, greatly reduce the product damage rate caused by static electricity, and ensure product quality and corporate economic benefits.

Technical Specification

Product name		ESD Box
Product model		3W-9805345	3W-9805349	3W-9805350
Specification parameters	●External dimensions:	400*300*120mm	400*300*150mm	400*300*280mm
	●Inner size:	355*255*115mm	355*255*140mm	355*255*270mm
	●Sidewall:	2.5mm	2mm	2mm
	●Bottom wall:	3.5mm	3mm	3mm
	●Weight:	0.97kg	1.07kg	1.55kg
	●Carrier:	30kg	30kg	30kg
Product description		◆Static index: 10e4-10e8Ω
Color customization		□      □       □    □other
Optional accessories		□Anti-static label
		□Anti-static partition
		□Folder
		□Silk screen/hot stamping
		□Box cover
