ESD Trolley Widely Adjustable PCB Transfer Cart 3W-9805201-2(950*550*1380mm)
Aperçu
Avantages techniques
ESD trolley, also known as PCB board turnover cart, transfer cart, storage cart, etc., is an industrial equipment specially designed to prevent static electricity accumulation and discharge. It is mainly used in static-sensitive working environments. By using special materials and technologies, it effectively eliminates static electricity and prevents its accumulation, ensuring the safety and stability of the working process. Anti-static turnover carts are made of special anti-static materials, such as anti-static materials with a surface resistance of 10 to the 6th power to 10 to the 9th power, which can quickly conduct away the accumulated static electricity and prevent static electricity from damaging electronic components. The metal grounding chain installed at the bottom of the car can discharge static electricity through the grounding chain even if the wheels are affected by dust and affect static electricity discharge, further ensuring the effective elimination of static electricity.
Équipé de roues en plastique antistatique de haute qualité ou de roues en caoutchouc conducteur, dont certaines sont équipées de freins, le chariot est flexible et stable, et est pratique pour transporter des marchandises entre les ateliers, les entrepôts et d'autres endroits. La conception des roues rend le chariot silencieux lors des déplacements et ne perturbe pas l'environnement de travail.
Le bâti du corps est généralement fabriqué en acier inoxydable ou en acier au carbone de haute qualité, qui offre une excellente résistance à la compression et à l'usure, peut supporter le poids de charges lourdes et maintenir une longue durée de vie dans des environnements de travail difficiles. Par exemple, certains véhicules à basculement utilisent de l'acier inoxydable 304 pour fabriquer leurs châssis, qui sont non seulement solides et durables, mais possèdent également une bonne résistance à la corrosion.
Spécification technique
| Nom du produit | Chariot ESD | ||
| Modèle de produit | 9805201-2 | ||
| Paramètres de spécification | ●Dimensions extérieures : | 950*550*1380mm | 1200*550*1380mm |
| ●Taille latérale : | 1000*460*30 (simple) /40 (double) mm | ||
| ●Taille de l'assiette : | 248*460 mm | ||
| ●Structure du panneau latéral : | Platine 4 pièces enfichable | ||
| ●Largeur réglable : | 0-850mm (Max) | 0-1050 mm (Max) | |
| Profondeur de rainure : | 4,5 mm | ||
| Largeur de la rainure : | 4,5 mm | ||
| Pitch : | 10 | ||
| ●Nombre d'emplacements : | 100 | ||
| ●Poids : | 36 kg | ||
| ● Capacité de stockage de la carte PCB : | 300 pièces | ||
| ●mise en charge: | 100 kg | ||

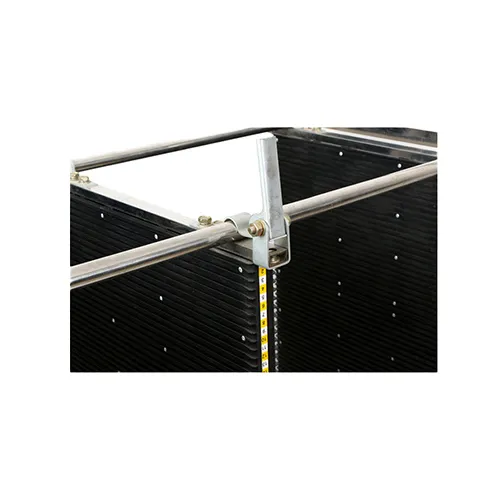

| Description du produit | Dispositif de verrouillage à main | ||
| ◆2 vignettes simples + 2 vignettes doubles | |||
| ◆Matériau des roulettes antistatiques : matériau PP | |||
| Indice statique : 10e4-10e8Ω | |||
| Options de résistance à la température | □ 100°C □ 120°C □ 150°C | ||
| Accessoires optionnels | Boîte de classement | ||
| □Code d'emplacement libellé | |||
| Étiquette antistatique | |||
La résistance à la température désigne la température maximale de la carte de circuit imprimé que le chariot de retournement peut supporter.
World-Class ESD Manufacturing Capacity
When you source from Sanwei, you are partnering directly with an industry-leading OEM/ODM manufacturer. We operate a state-of-the-art 70,000+ m² integrated production facility in Yueqing Central Industrial Park, Zhejiang, managing every single process from proprietary material formulation to final high-precision product molding.
Integrated Scale
70,000+ m² advanced plant base equipped with heavy-duty precision injection molding machines to handle bulk wholesale orders with stable lead times.
Full-Chain Control
Complete in-house control spanning proprietary anti-static material R&D, structural mold engineering, automated manufacturing, and swift global logistics delivery.
Rigorous Inspection
Strict raw material testing combined with multi-point surface resistivity metering on the production line ensures 100% compliance with international ESD standard guidelines.
Antistatique Produits et Solutions
Delivering comprehensive electrostatic protection across your entire manufacturing and operational lifecycle.
Matériel SMT
Boîtes et racks antistatiques pour lignes automatisées.
Stockage et Logistique
Chariots de manutention, étagères, boîtes, plateaux et conteneurs de composants.
Poste de travail & EPI
Chaises antistatiques, tapis, bracelets antistatiques et protection personnelle.
Développement personnalisé
Développement de moules sur mesure et matériaux antistatiques spéciaux.
NOS AVANTAGES OEM/ODM
R&D Avancé & Innovation en Matériaux
In-house developed anti-static materials with national invention patents and heat resistance up to 200℃. We do not just mold — we formulate compounds.
Capacité de production à grande échelle
30,000㎡ plant with complete injection molding, granulation and supporting processing systems for stable and efficient supply.
Personnalisation complète du processus
Material resistivity, color, size, logo, packaging and certifications — customizable to meet IEC61340-5-1, ANSI/ESD S20.20 or military standards.
Qualité Certifiée & Conformité Globale
“Sanwei successfully developed custom high-temperature resistant clean natural color trays for our semiconductor assembly line, replacing imported products, ensuring excellent ESD safety, and meeting the high cleanliness requirements of the workshop.”
TRUSTED BY GLOBAL FORTUNE 500 INDUSTRY LEADERS
Our proprietary ESD solutions are deployed in elite production facilities worldwide, including: Intel, Motorola, Siemens, IBM, Panasonic, Nokia, and Dell.
Looking for Custom Sizes or Bulk Wholesale Pricing?
Backed by our robust in-house R&D team, Sanwei provides complete OEM/ODM options tailored to your specific SMT production lines or warehouse layout. Contact our specialists today for custom molds, color coding, or integrated 5S storage consulting.
Frequently Asked Questions (FAQ)
1. What is a transfer cart?
An industrial transfer cart is a specialized material handling vehicle designed to transport heavy loads over short distances within factories, warehouses, and other industrial environments. Unlike forklifts, these electrically driven carts offer smooth, stable movement and can be customized with load capacities from a few tons to over a hundred tons.
2. What are the different types of heavy duty trolleys?
Common types include: flatbed trolleys (open platform for stable loads); platform trolleys with sides (for loose or unstable items); folding platform trolleys (space-saving, foldable handle); structural foam tilt trucks (padded surface for floor-level tasks); and beam trolleys (for overhead rail systems, capacities up to 50+ tons).
3. What type of containers or packaging should ESD sensitive materials be transported in?
ESD sensitive materials must be transported in packaging that prevents static charge accumulation, such as conductive corrugated cardboard containers, static-dissipative plastic totes or boxes, ESD foam (to cushion and shield components like PCBs), et moisture barrier bags with metal shielding layers.
4. What is an ESD tray?
An ESD tray is a conductive or static-dissipative container designed to store and transport sensitive electronic components (such as PCBs, ICs, and semiconductors) safely. It features a conductive surface that channels static charges to ground, typically with a surface resistance under 10⁹ ohms, and often includes compartments or slots to secure individual parts.
5. What is an ESD trolley?
An ESD trolley (also known as a PCB board turnover cart or anti-static storage cart) is a mobile industrial equipment designed to prevent static electricity accumulation and discharge in static-sensitive environments. Made from anti-static materials with a surface resistance of 10⁶–10⁹Ω, it features conductive wheels and a metal grounding chain to safely dissipate static charges, ensuring the protection of electronic components during transport.
