ESD Box Storage Industrial Conductive Plastic Container for Electronics Manufacturing
Aperçu
Présentation du produit
ESD Box Storage, also known as an anti-static storage box or conductive turnover box, is specially designed for the safe storage and transportation of electrostatic-sensitive electronic components. It effectively dissipates static electricity, prevents charge accumulation and high-voltage discharge, and minimizes the risk of electrostatic discharge (ESD) damage to PCBs, IC chips, semiconductors, and other sensitive devices.
Manufactured from high-quality conductive plastic, aluminum alloy, or stainless steel, the box provides excellent electrical conductivity to safely release static charges before they can affect valuable electronic parts. The interior can be fitted with conductive foam, anti-static sponge, or conductive liners to provide additional cushioning and reliable ESD protection during handling and transportation.
For enhanced safety, the ESD box storage can also be connected to a grounding wire, allowing static electricity to be discharged directly to the ground. This design ensures continuous electrostatic protection throughout storage, production, and logistics processes.
Widely used in electronics manufacturing, SMT assembly, semiconductor production, automotive, machinery, home appliances, and other industrial applications, this anti-static storage box offers a reliable solution for protecting static-sensitive components while improving storage efficiency and product reliability.
Spécification technique
| Nom du produit | Boîte ESD | |||||
| Modèle de produit | 3W-9805303A | 3W-9805303B | 3W-9805303C | 3W-9805303D | 3W-9805304 | |
 |
 |
 |
 |
 |
||
| Paramètres de spécification | ●Dimensions extérieures : | 605*365*135 mm | 605*365*95 mm | 605*365*85 mm | 615*375*25 mm | 390*285*275 mm |
| ●Taille intérieure : | 560*325*125mm | 560*325*83 mm | 560*325*85 mm | 355*250*255 mm | ||
| Flanc | 3 mm | 3 mm | 3 mm | 3 mm | ||
| Mur du fond : | 3 mm | 4 mm | 4 mm | |||
| ●Poids : | 2kg | 1,04 kilogramme | 1,04 kilogramme | 0,9 kg | 1,96 kg | |
| ●Transporteur : | 30 kg | 30 kg | 30 kg | |||
| Description du produit | Indice statique : 10e4-10e8Ω | |||||
| Personnalisation de la couleur | 口 口  口  ouvert |
|||||
| Accessoires optionnels | Étiquette antistatique | |||||
| Partition antistatique | ||||||
| Immeuble de grande hauteur (3W-9805303C) | ||||||
| Sérigraphie/dorure à chaud | ||||||
| Couvercle de boîte (3W-9805303D) | Couverture de boîte | |||||
| Chariot de rotation (série 3W-9806101) | ||||||
| Nom du produit | Boîte ESD | |||||

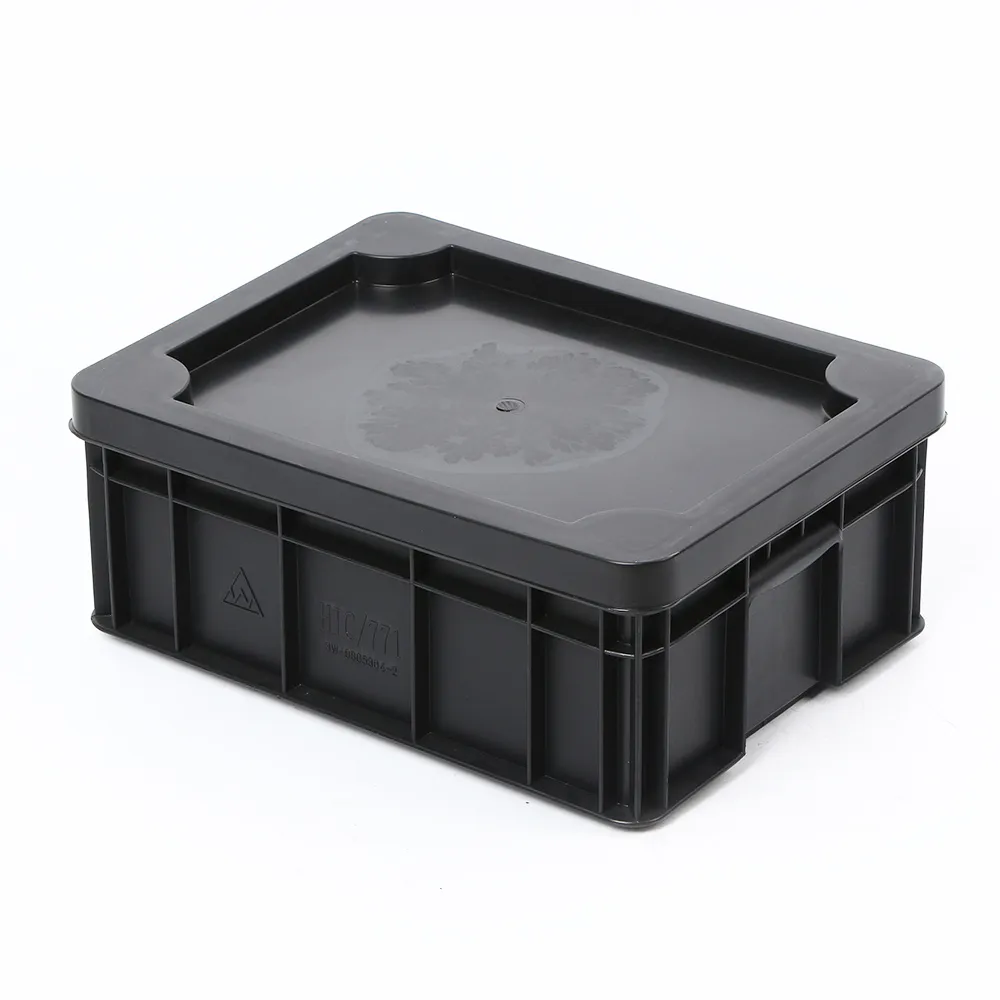

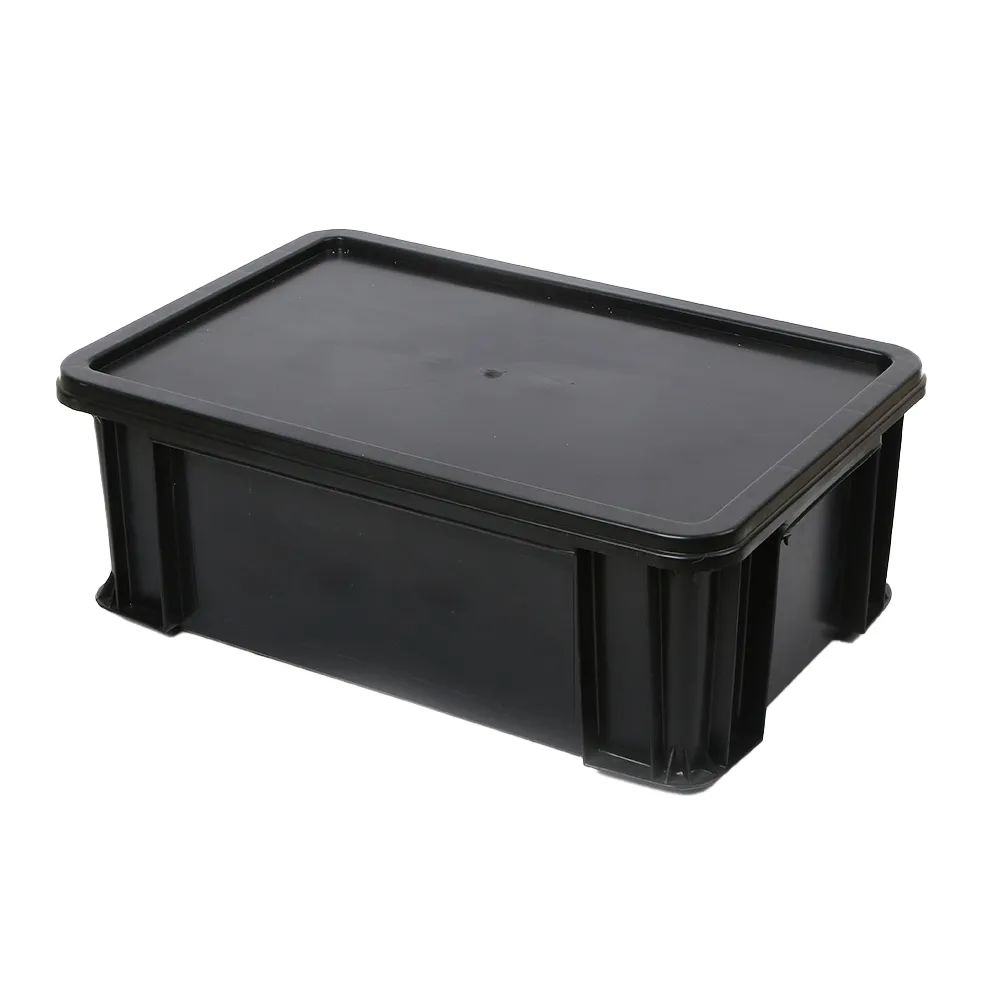

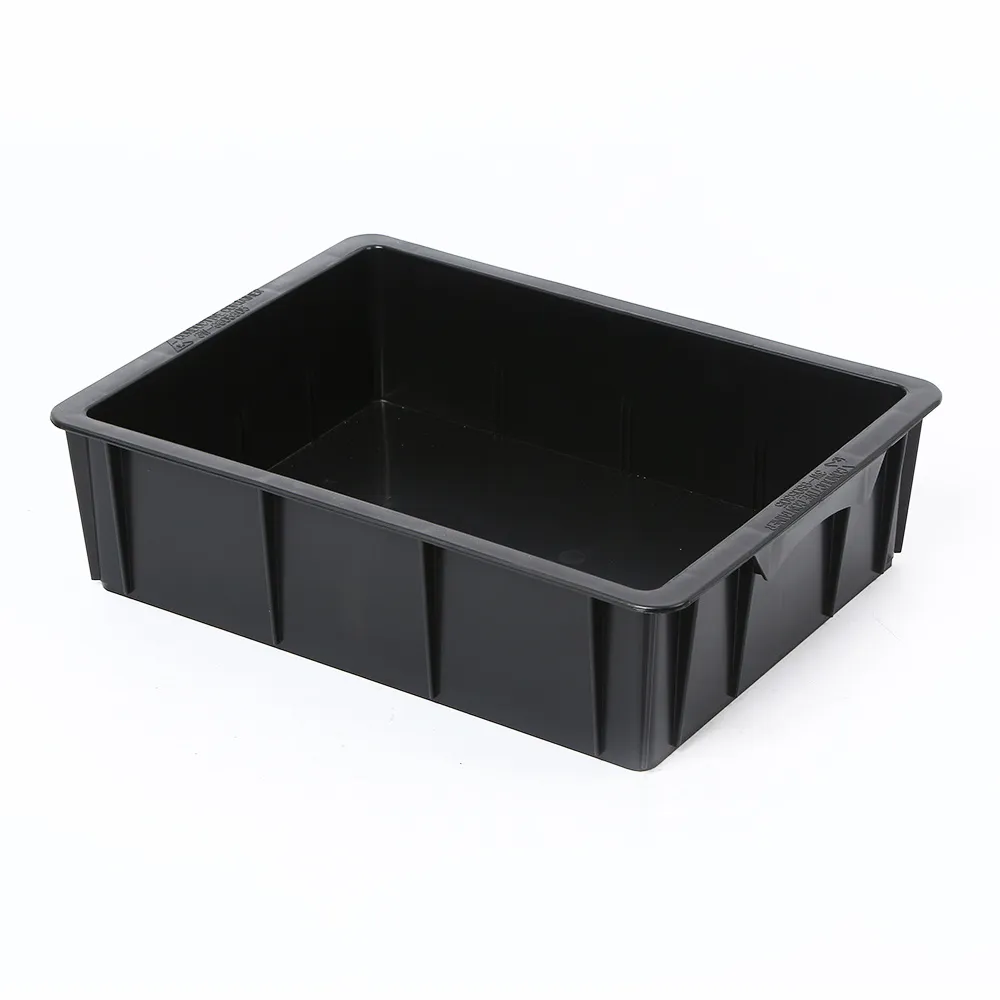

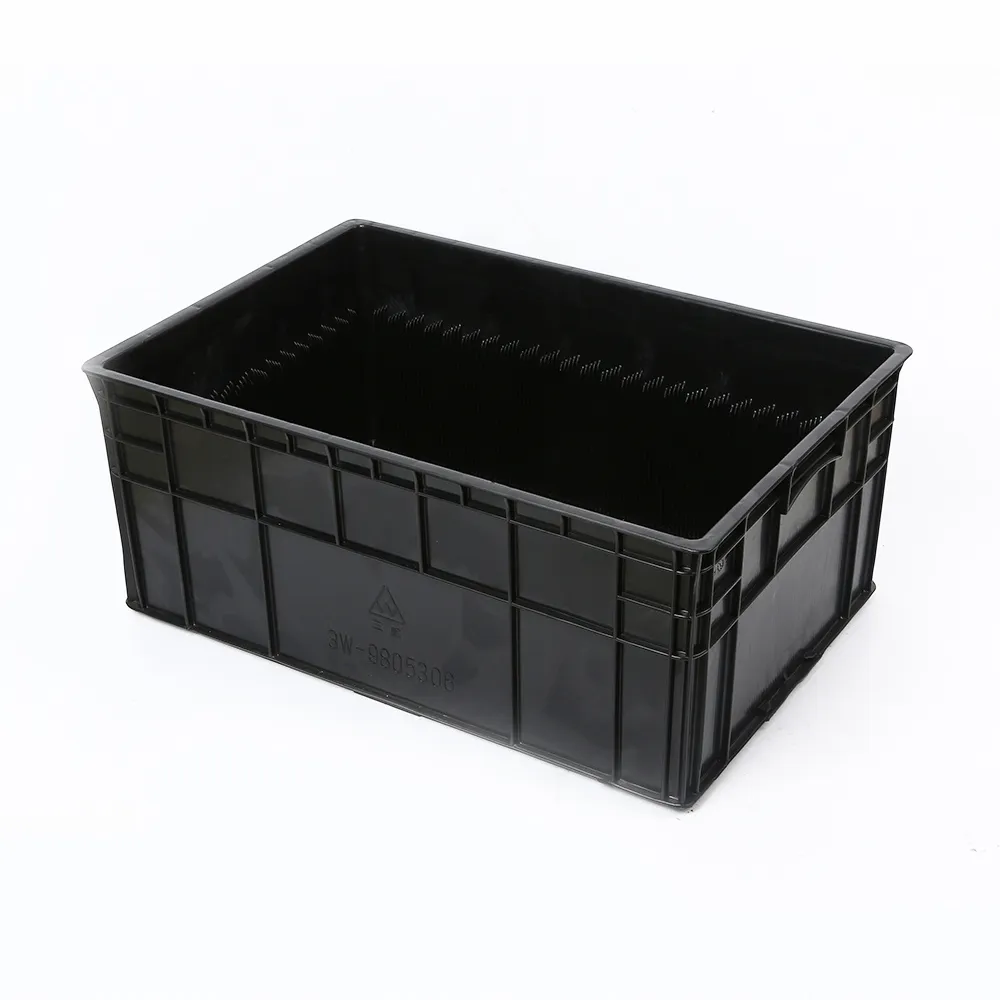

| Modèle de produit | 3W-9805304-2 | 3W-9805305-2 | 3W-9805305 | 3W-9805306 | 3W-9805307 | |
 |
 |
 |
 |
 |
||
| Paramètres de spécification | ●Dimensions extérieures : | 330*245*120 mm | 395*185*155 mm | 405*305*110 mm | 655*445*275 mm | 590*390*205 mm |
| ●Taille intérieure : | 295*210*108 mm | 345*145*150 mm | 360*270*100 mm | 615*405*260 mm | 530*330*200 mm | |
| Flanc | 3,5 mm | 3 mm | 3 mm | 3 mm | 3 mm | |
| Mur du fond : | 4 mm | 3,5 mm | 4 mm | 4 mm | 4 mm | |
| ●Poids : | 0,87 kg | 0,78 kg | 0,84 kg | 3,98 kg | 2,48 kg | |
| ●Transporteur : | 30 kg | 30 kg | 30 kg | 30 kg | 30 kg | |
| Description du produit | Il y a des fentes autour de la boîte (elle peut être utilisée avec des cloisons fendues pour stocker des circuits imprimés) | |||||
| Indice statique : 10e4-10e8Ω | ||||||
| Personnalisation de la couleur | 口 口  口 ouvert |
|||||
| Accessoires optionnels | Étiquette antistatique | |||||
| Partition antistatique | ||||||
| Sérigraphie/dorure à chaud | ||||||
| Couverture de boîte | Couverture de boîte | Couverture de boîte | ||||
| Chariot de rotation (série 3W-9806101) | ||||||
| Nom du produit | Boîte ESD | |||||

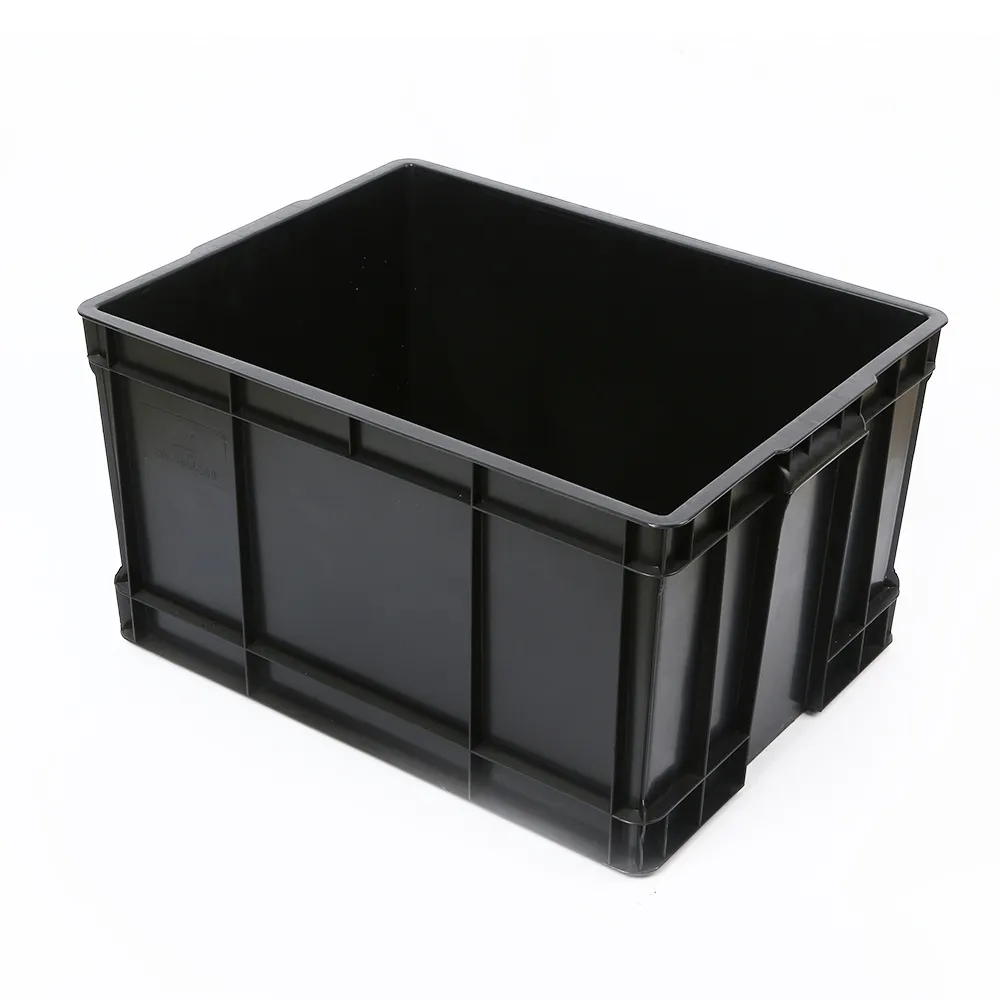

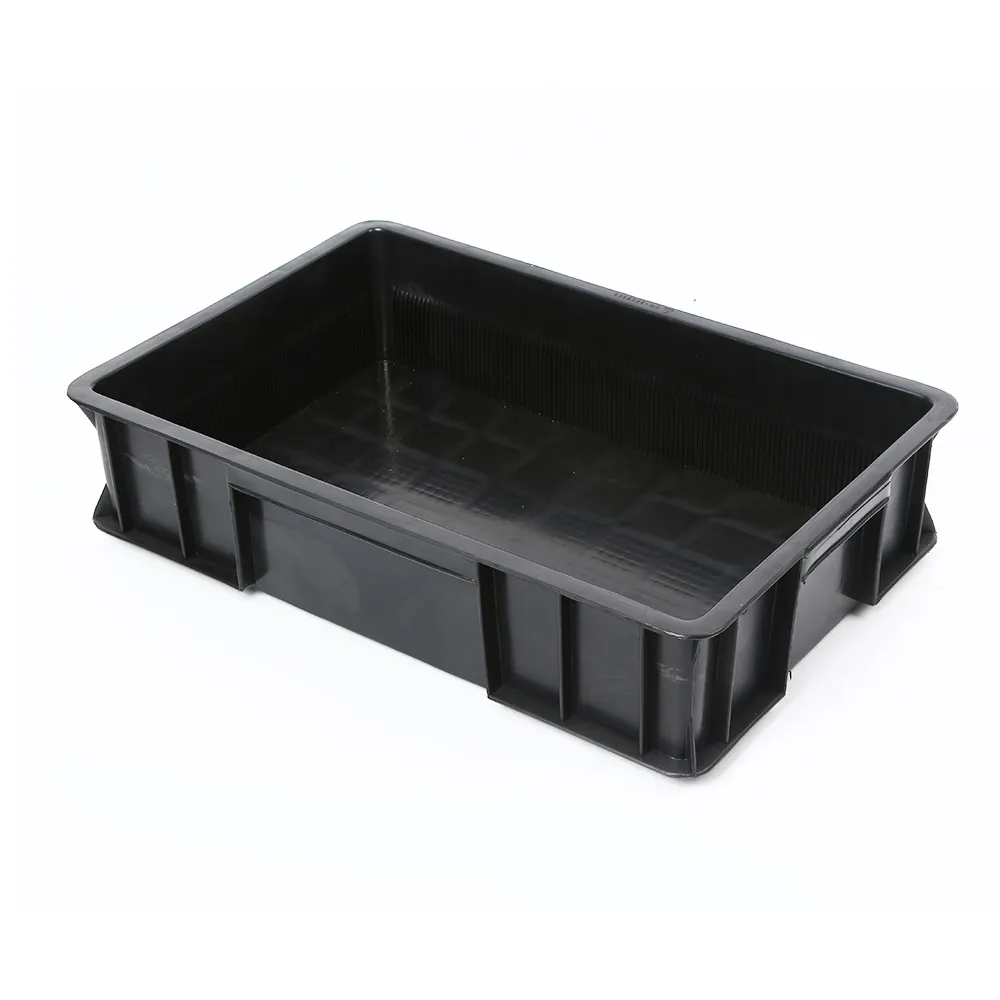

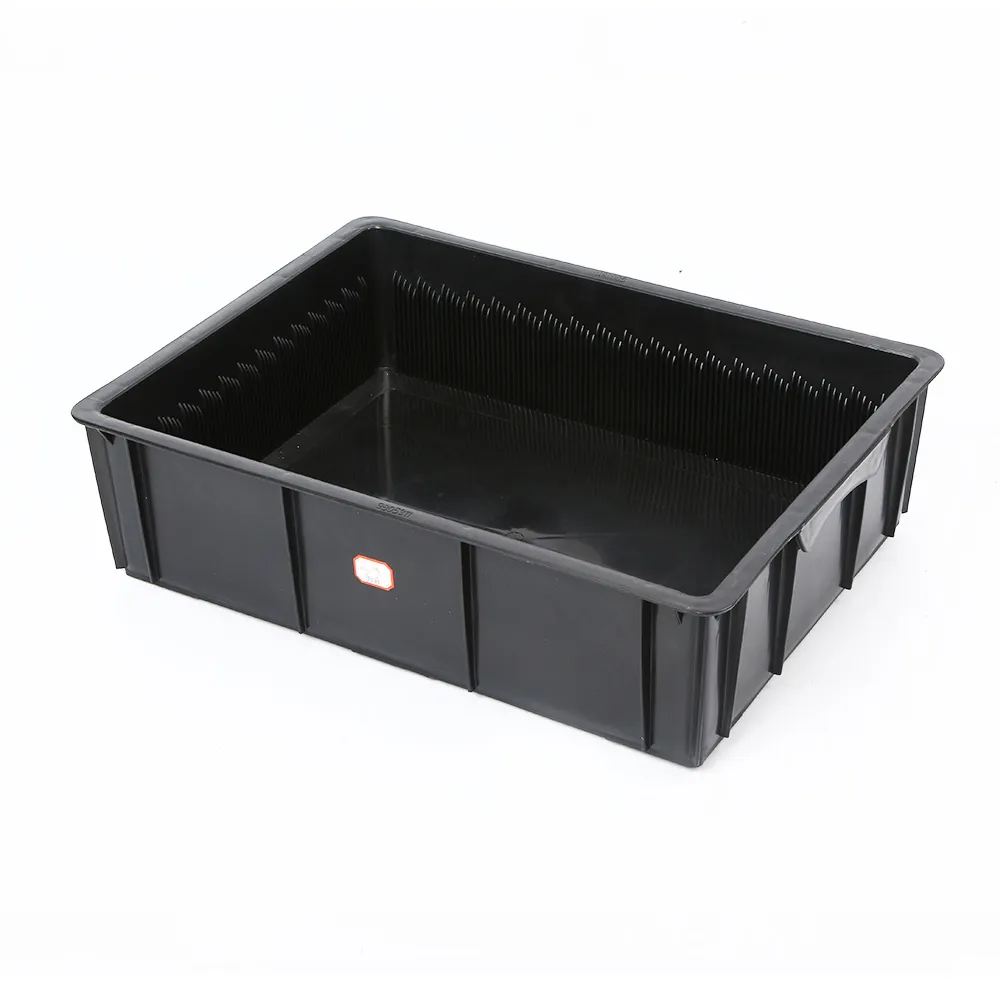

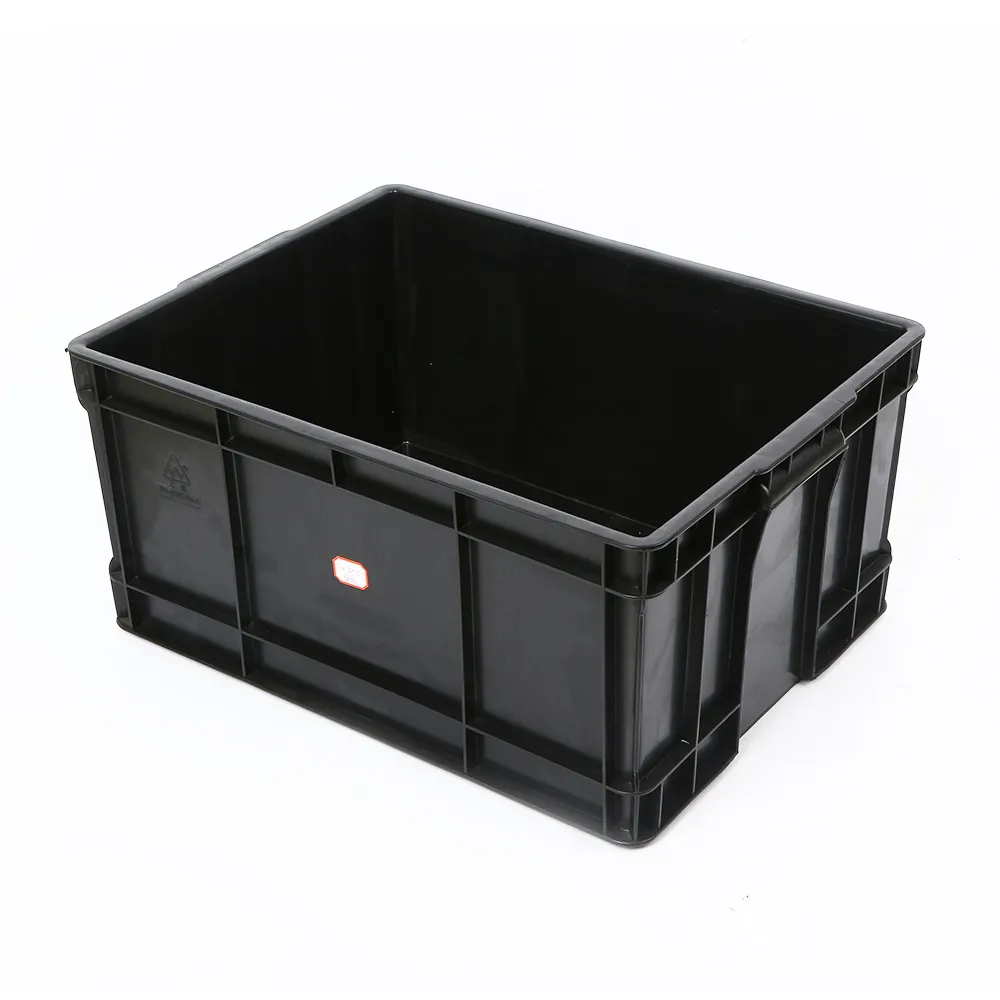

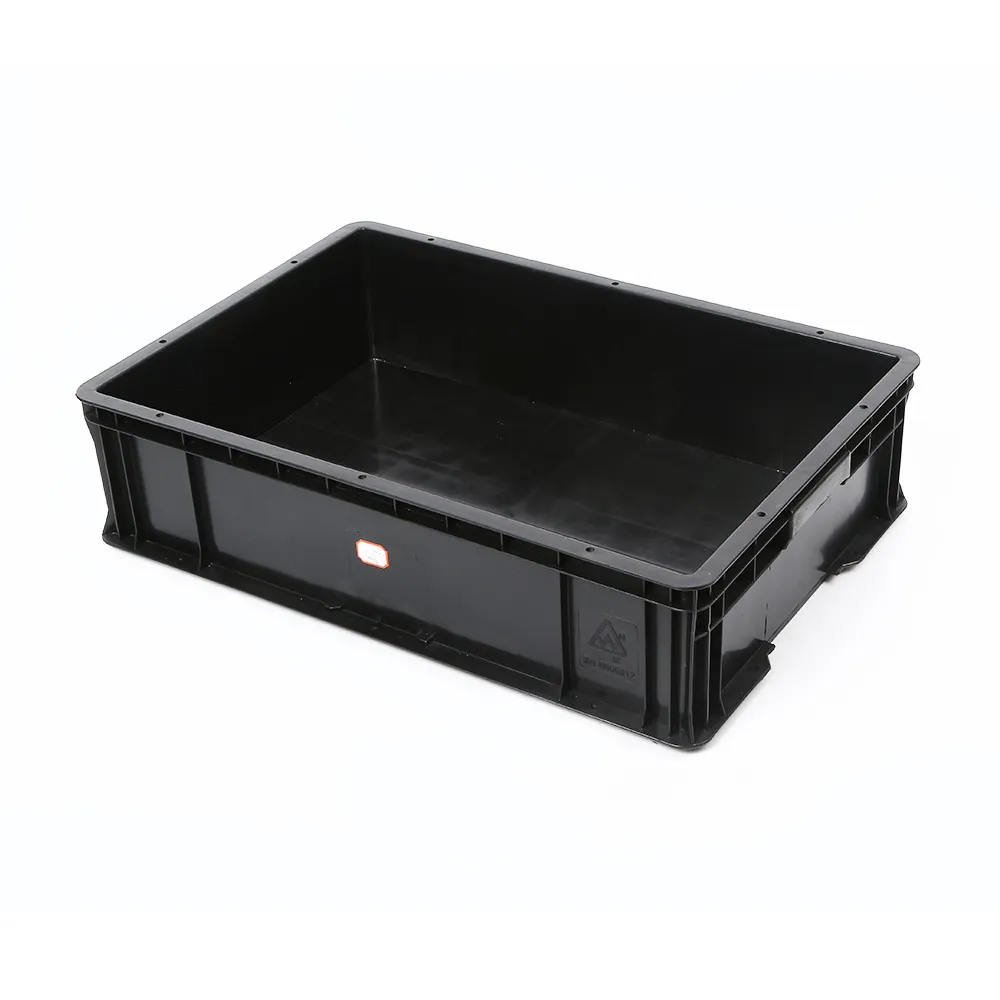

| Modèle de produit | 3W-9805308 | 3W-9805309-2 | 3W-9805309 | 3W-9805311 | 3W-9805312 | |
 |
 |
 |
 |
 |
||
| Paramètres de spécification | ●Dimensions extérieures : | 605 x 400 x 140 mm | 550*415*265 mm | 550*415*305 mm | 530*395*145 mm | 645*440*165 mm |
| ●Taille intérieure : | 560*355*135 mm | 495*365*255 mm | 495*365*295 mm | 485 x 355 x 135 mm | 595*395*155 mm | |
| Flanc | 3 mm | 3 mm | 3 mm | 3,5 mm | 3 mm | |
| Mur du fond : | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm | |
| ●Poids : | 2,16 kg | 2,6 kg. | 2,84 kilogrammes | 2,14 kg | 2,4 kg | |
| ●Transporteur : | 30 kg | 30 kg | 30 kg | 30 kg | ||
| Description du produit | Il y a des fentes autour de la boîte | \ | \ | Il y a des fentes sur la paroi intérieure | \ | |
| Indice statique : 10e4-10e8Ω | ||||||
| Personnalisation de la couleur | 口 口 口 ouvert |
|||||
| Accessoires optionnels | Étiquette antistatique | |||||
| Partition antistatique | ||||||
| Sérigraphie / dorure à chaud | ||||||
| Immeuble de grande hauteur | ||||||
| Nom du produit | Boîte ESD | |||||

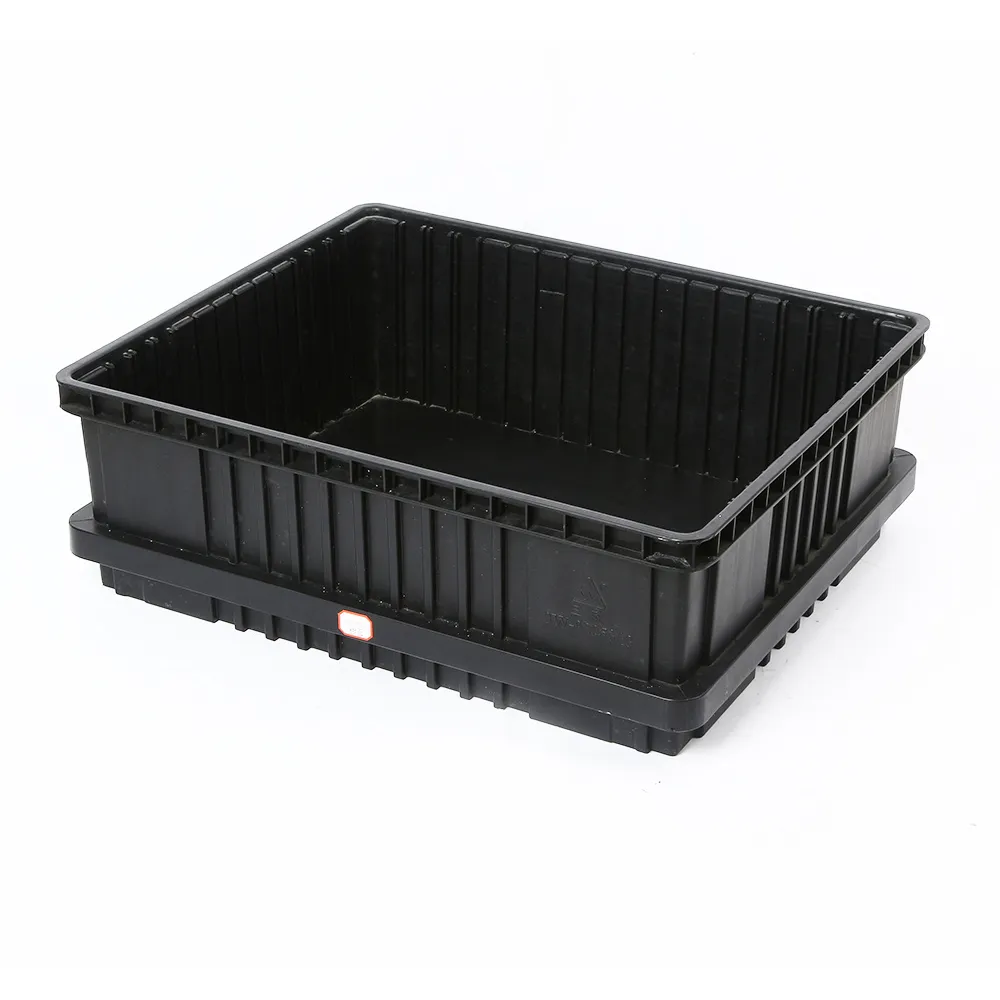

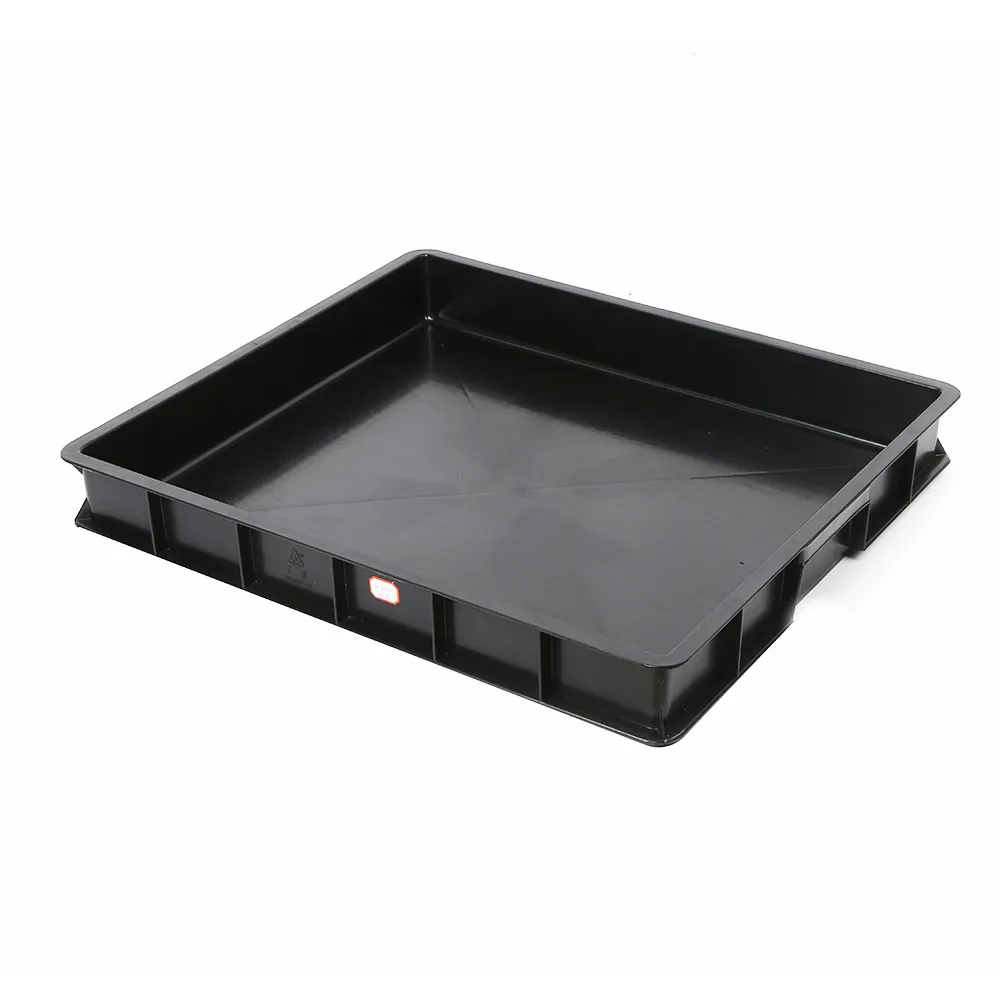

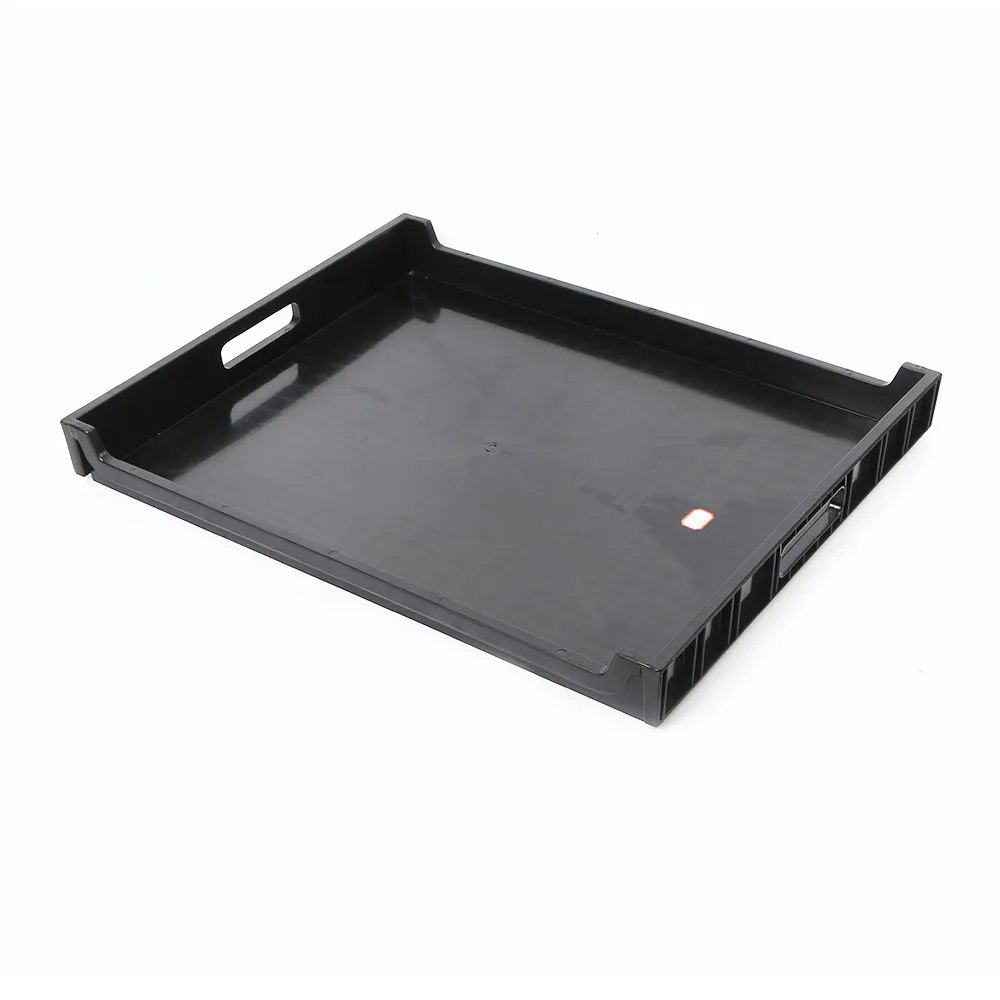

| Modèle de produit | 3W-9805313 | 3W-9805313-2 | 3W-9805314 | 3W-9805315 | 3W-9805315-2 | |
 |
 |
 |
 |
 |
||
| Paramètres de spécification | ●Dimensions extérieures : | 605*505*205 mm | 690*560*205mm | 700*610*90 mm | 690*550*75 mm | 845*525*95 mm |
| ●Taille intérieure : | 555*450*200 mm | 655*522*200 mm | 650*560*85 mm | 650*515*70 mm | 810*495*90 mm | |
| Mur | 3 mm | 3 mm | 4 mm | 2 millimètres | 2,5 mm | |
| Mur du fond : | 5 mm | 5 mm | 4 mm | 3 mm | 3 mm | |
| ●Poids : | 3,48 kg | 4,5 kg | 2,87 kg | 2,11 kg | 2,29 kg | |
| Support de charge : | 30 kg | 30 kg | 30 kg | 30 kg | 30 kg | |
| Description du produit | Il y a des fentes autour de la boîte | \ | \ | \ | ||
| Indice statique : 10e4-10e8Ω | ||||||
| Personnalisation de la couleur | 口 口 口 ouvert |
|||||
| Accessoires optionnels | Étiquette antistatique | |||||
| Sérigraphie/dorure à chaud | ||||||
| Chariot de rotation (série 3W-9806101) | ||||||
World-Class ESD Manufacturing Capacity
When you source from Sanwei, you are partnering directly with an industry-leading OEM/ODM manufacturer. We operate a state-of-the-art 70,000+ m² integrated production facility in Yueqing Central Industrial Park, Zhejiang, managing every single process from proprietary material formulation to final high-precision product molding.
Integrated Scale
70,000+ m² advanced plant base equipped with heavy-duty precision injection molding machines to handle bulk wholesale orders with stable lead times.
Full-Chain Control
Complete in-house control spanning proprietary anti-static material R&D, structural mold engineering, automated manufacturing, and swift global logistics delivery.
Rigorous Inspection
Strict raw material testing combined with multi-point surface resistivity metering on the production line ensures 100% compliance with international ESD standard guidelines.
Antistatique Produits et Solutions
Delivering comprehensive electrostatic protection across your entire manufacturing and operational lifecycle.
Matériel SMT
Boîtes et racks antistatiques pour lignes automatisées.
Stockage et Logistique
Chariots de manutention, étagères, boîtes, plateaux et conteneurs de composants.
Poste de travail & EPI
Chaises antistatiques, tapis, bracelets antistatiques et protection personnelle.
Développement personnalisé
Développement de moules sur mesure et matériaux antistatiques spéciaux.
NOS AVANTAGES OEM/ODM
R&D Avancé & Innovation en Matériaux
In-house developed anti-static materials with national invention patents and heat resistance up to 200℃. We do not just mold — we formulate compounds.
Capacité de production à grande échelle
30,000㎡ plant with complete injection molding, granulation and supporting processing systems for stable and efficient supply.
Personnalisation complète du processus
Material resistivity, color, size, logo, packaging and certifications — customizable to meet IEC61340-5-1, ANSI/ESD S20.20 or military standards.
Qualité Certifiée & Conformité Globale
“Sanwei successfully developed custom high-temperature resistant clean natural color trays for our semiconductor assembly line, replacing imported products, ensuring excellent ESD safety, and meeting the high cleanliness requirements of the workshop.”
TRUSTED BY GLOBAL FORTUNE 500 INDUSTRY LEADERS
Our proprietary ESD solutions are deployed in elite production facilities worldwide, including: Intel, Motorola, Siemens, IBM, Panasonic, Nokia, and Dell.
Looking for Custom Sizes or Bulk Wholesale Pricing?
Backed by our robust in-house R&D team, Sanwei provides complete OEM/ODM options tailored to your specific SMT production lines or warehouse layout. Contact our specialists today for custom molds, color coding, or integrated 5S storage consulting.
Frequently Asked Questions (FAQ)
1. What is ESD storage?
ESD storage refers to storing electronic components in anti-static or conductive containers that safely dissipate static electricity and prevent ESD damage.
2. What is the purpose of a storage box?
A storage box protects, organizes, and transports items safely. An ESD storage box also prevents electrostatic discharge from damaging sensitive electronic components.
3. What does ESD stand for?
ESD stands for Electrostatic Discharge, the sudden flow of static electricity that can damage electronic devices and components.
4. What is the purpose of ESD packaging?
ESD packaging protects static-sensitive electronic components from electrostatic discharge during storage, handling, and transportation.
5. What materials are ESD storage boxes made of?
ESD storage boxes are commonly made from conductive plastic, anti-static polypropylene (PP), ABS, or other ESD-safe materials for reliable static protection.
6. Why is ESD storage important for electronic components?
Proper ESD storage prevents electrostatic damage, improves product reliability, and extends the service life of PCBs, ICs, and semiconductor devices.
7. Can ESD storage boxes be reused?
Yes. ESD storage boxes are durable and reusable, making them ideal for electronics manufacturing, SMT assembly, and warehouse storage.
8. How do I choose the right ESD storage box?
Choose an ESD storage box based on component size, material, storage capacity, and the level of ESD protection required for your application.
